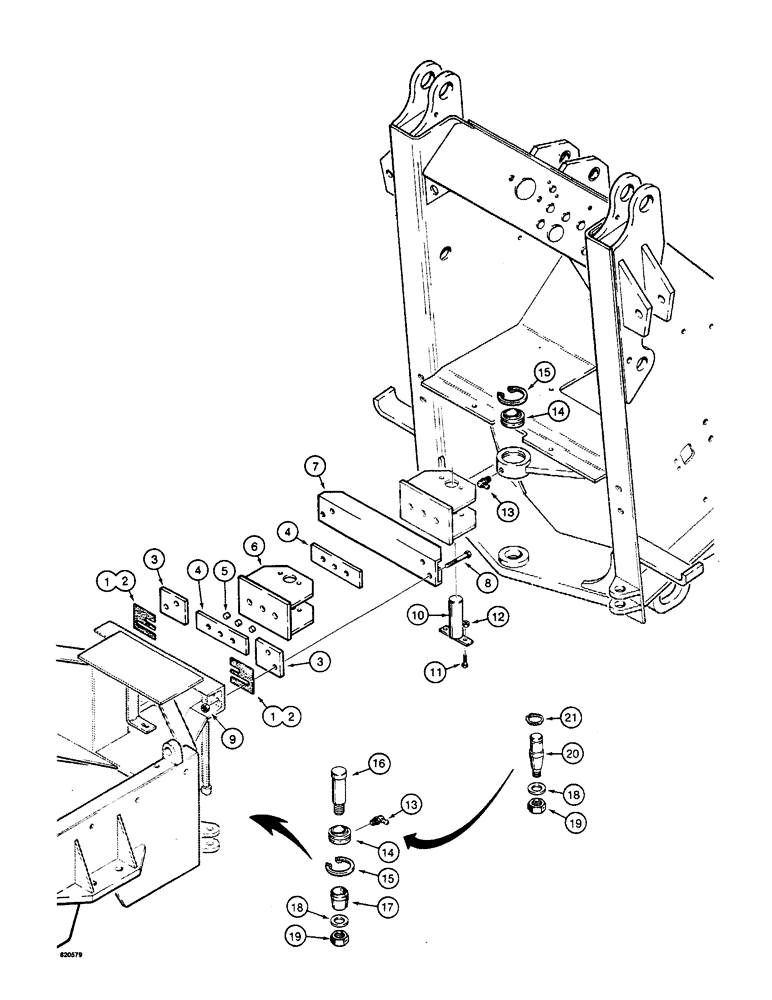

Запчасти Case W4 (190) - FRAME ARTICULATION JOINT (09) - CHASSIS/ATTACHMENTS

1

H336149

SHIM,.032" Thk

(0.81 mm) .032" Thk

1шт.

2

H336362

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

3

H393678

SPACER

- channel, 3/4" (19.1 MM) thick, if used

2шт.

3

H421289

SPACER

- channel, 7/8" (22.2 MM) thick, if used

2шт.

4

H336123

BLOCK

- wear pad

2шт.

5

H336115

PIN

- block retaining

3шт.

6

H661900

BRACKET

- articulation

1шт.

7

H358580

CHANNEL

- rolled, bracket retaining, use 113-2407 bolts only, if used

1шт.

7

H656272

CHANNEL

- welded, bracket retaining, use 113-2454 bolts only, if used

1шт.

8

113-2407

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

- hex head, 1/2" - 13 NC x 2-1/2", grade 8, use with H358580 channel only, if used

4шт.

8

113-2454

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex head, 1/2" - 13 NC x 3", grade 8, use with H656272 channel only, if used

4шт.

9

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

10

H661892

PIN

- upper articulation joint

1шт.

11

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

12

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Bearing 90º, 1/8" NPT x .84" lg

2шт.

14

L12570

BUSHING

BEARING - self-aligning

2шт.

15

S62213

SNAP RING,2.165", Int, #216

Ring, Snap, , brg 2.165", Int, #216

2шт.

16

H378968

PIN

- lower pivot, used on tractor SN 1144198 and after, if used

1шт.

17

H378976

BUSHING,34.92mm ID x 44.5mm OD x 46mm L

- tapered, lower pivot, used with item 16 (H378968) pin only, if used

1шт.

18

H426833

WASHER

- flat, 1"

1шт.

19

131-188

LOCK NUT,1"-14, GB

NUT - hex, self-locking, 1" - 14 NF

1шт.

20

H336156

PIN

- lower pivot, used before tractor SN 1144198, if used

1шт.

21

H358671

RING, SNAP

SNAP RING - pin retaining, used with item 20 (H336156) pin only, if used

1шт.
