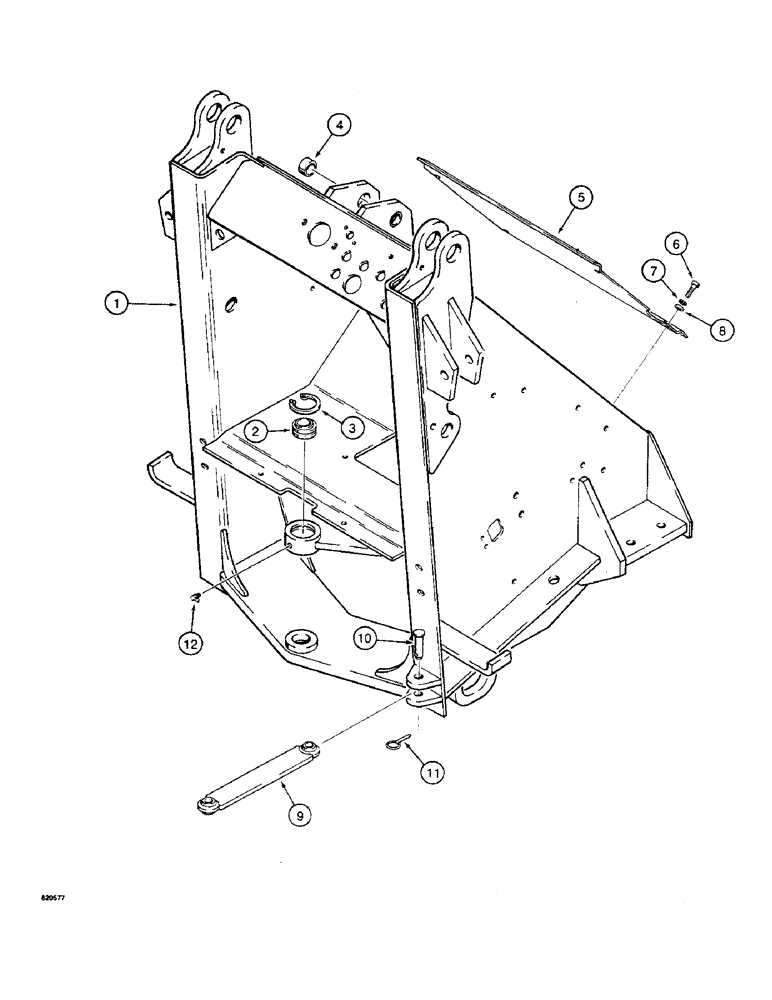

Запчасти Case W4 (186) - FRONT FRAME (09) - CHASSIS/ATTACHMENTS

1

H626812

FRAME - front, Includes: Ref. 2-4

1шт.

2

L12570

BUSHING

BEARING - self-aligning

1шт.

3

S62213

SNAP RING,2.165", Int, #216

Ring, Snap, , brg 2.165", Int, #216

1шт.

4

D34337

BUSHING

- tilt cylinder bracket

2шт.

5

H357053

PLATE - access cover

1шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

195-525

WASHER,3/8", SAE

- flat, 3/8"

4шт.

9

H648808

LINK - safety, articulation lock

1шт.

10

H30270

CLEVIS

PIN - safety link, 3/4" x 2-3/8"

2шт.

11

D55169

PIN

- self-locking

2шт.

12

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Upper bearing 90º, 1/8" NPT x .84" lg

1шт.
