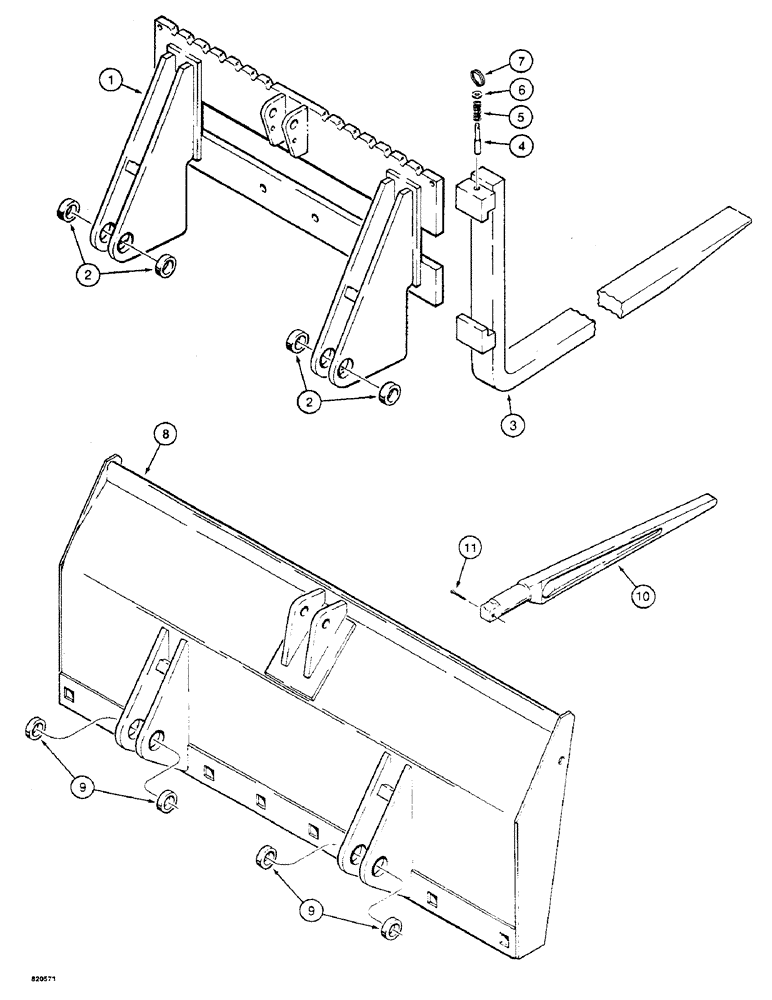

Запчасти Case W4 (174) - PALLET FORK AND MANURE FORK, PALLET FORK, MANURE FORK (09) - CHASSIS/ATTACHMENTS

1

H647750

FRAME - pallet forks, Includes: Ref. 2

1шт.

2

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- at loader frame pivot

4шт.

3

H597542

FORK TEDDER

FORK - pallet, 42" (1067 MM) long, Includes: Ref. 4-7

2шт.

4

D38359

PIN,12.7mm OD x 95.25mm L

PIN - lock, fork

1шт.

5

D52904

VALVE SPRING

SPRING - tension, pin

1шт.

6

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

7

D41289

RING

- pin retaining

1шт.

8

H647925

FRAME - manure forks, Includes: Ref. 9

1шт.

9

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- at loader frame pivot, manure fork

4шт.

10

H59303

TINE - manure fork

8шт.

11

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), , Tine, manure fork 1/4" x 1 3/4"

8шт.
