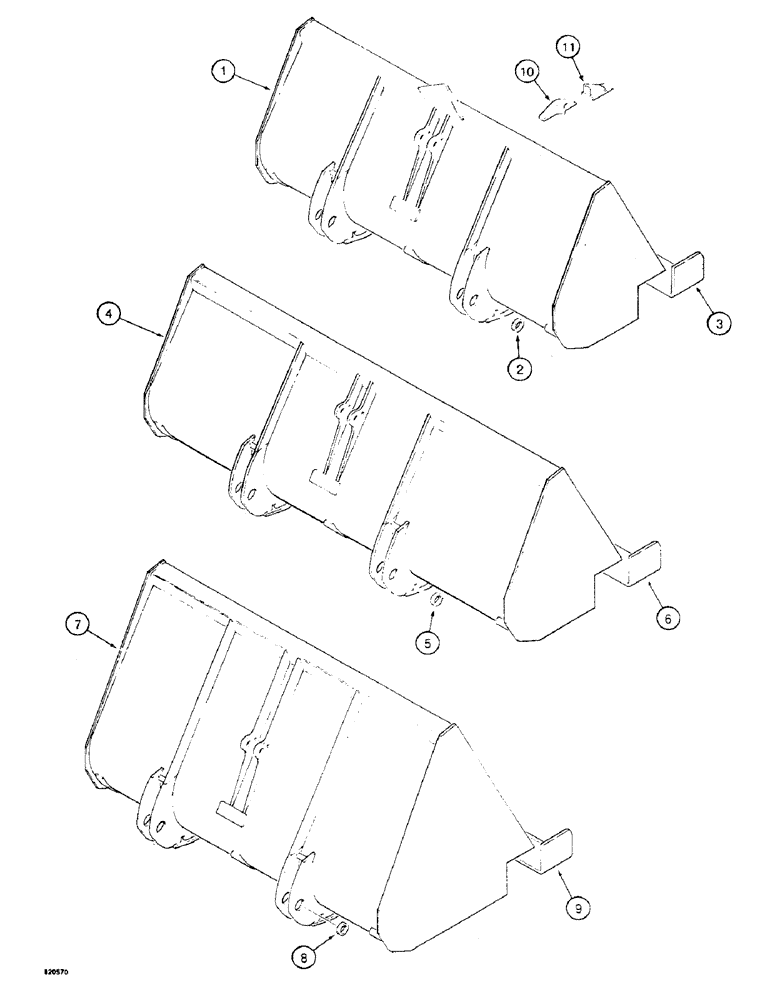

Запчасти Case W4 (172) - LOADER BUCKETS AND BUCKET TEETH, LOADER BUCKETS, BUCKET TEETH (09) - CHASSIS/ATTACHMENTS

H626515

BUCKET ASSEMBLY - 1/2 cu. yard, machinery item - see Figure 002 for ordering, Includes: Ref. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, with rock guard

1шт.

2

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- at loader frame pivot

4шт.

3

H352401

BLADE

CUTTING EDGE - bucket

1шт.

H648261

BUCKET ASSEMBLY - 3/4 cu. yard, machinery item - see Figure 002 for ordering, Includes: Ref. 4-6

1шт.

4

NSS

NOT SOLD SEPARAT

BUCKET - loader, without rock guard

1шт.

5

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- at loader frame pivot

4шт.

6

H389304

CUTTING EDGE - bucket

1шт.

H661710

BUCKET ASSEMBLY - fertilizer, machinery item - see Figure 002 for ordering, Includes: Ref. 7-9

1шт.

7

NSS

NOT SOLD SEPARAT

BUCKET - loader, without rock guard

1шт.

8

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- at loader frame pivot

4шт.

9

H352401

BLADE

CUTTING EDGE - bucket

1шт.

10

H389171

SHANK

- tooth, service option for H626515 bucket only, bucket teeth

8шт.

11

T41166

TOOTH

POINT - tooth, service option for H626515 bucket only, bucket teeth

8шт.
