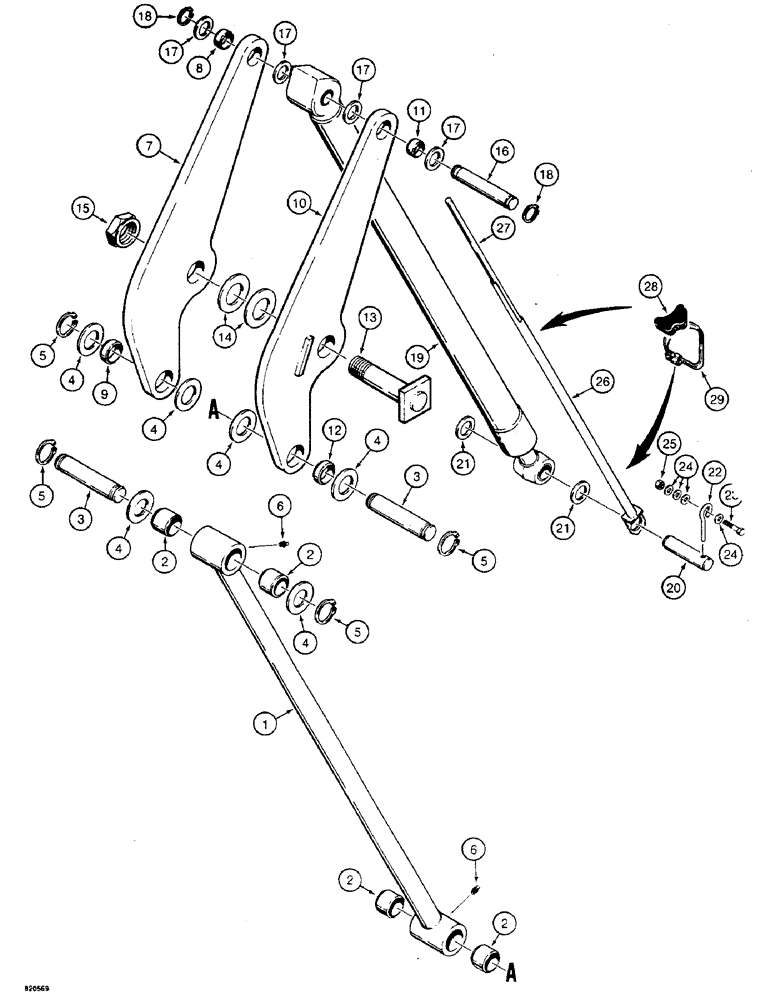

Запчасти Case W4 (170) - LOADER BUCKET SELF-LEVELING LINKAGE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
H626614
LINK
- self-leveling, Includes: Ref. 2
1шт.
2
D34203
BUSHING
- link
4шт.
3
H358473
PIN
- link to front frame
2шт.
4
H113241
BEARING WASHER
WASHER - spacer
1шт.
5
D26918
SNAP RING,#125, Ext
Ring, Snap, , pin #125, Ext
4шт.
6
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , straight, taper, Link 1/4"-28 NPT x .54" lg
2шт.
7
H627315
BELLCRANK - left hand, Includes: Ref, 8 & 9
1шт.
8
D34359
BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L
- bellcrank, cylinder end
1шт.
9
D34337
BUSHING
- bellcrank, link end
1шт.
10
H627463
BELLCRANK - right-hand, Includes: Ref. 11 & 12
1шт.
11
D34359
BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L
- bellcrank, cylinder end
1шт.
12
D34337
BUSHING
- bellcrank, link end
1шт.
13
H627497
PIN - bellcrank pivot
1шт.
14
A12089
WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk
- spacer
1шт.
15
131-92
LOCK NUT,1 1/2"-12
NUT - hex, self-locking, 1-1/2" - 12 NF
1шт.
16
H352138
PIN
-, Serial Range: cylinder-bellcrank
1шт.
17
D36505
WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk
- spacer
1шт.
18
D25277
SNAP RING,23.5mm ID x 2.62mm Thk
- pin retaining
2шт.
19
G102358
CYLINDER - bucket, parts list Figure 158
1шт.
20
H352146
PIN
-, Serial Range: cylinder-bucket
1шт.
21
D36505
WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk
- spacer
1шт.
22
H382770
PIN - retaining, use with bucket options only, 2" (50.5 MM) long, if used
1шт.
22
H313981
PIN
- retaining, use with fork options only, 3" (76 MM) long, if used
1шт.
23
113-209
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
1шт.
24
195-525
WASHER,3/8", SAE
- flat, 3/8"
4шт.
25
230-4216
LOCK NUT,3/8"-16, GA
NUT - hex, self-locking, 3/8" - 16 NC
1шт.
26
H358739
TUBE,0.75" OD x 24" L
- level indicator
1шт.
27
H627265
ROD
- bucket level indicator
1шт.
28
D38648
BLOCK
SADDLE - tube mounting
2шт.
29
214-264
HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm
CLAMP - tube and saddle to cylinder, worm drive SAE no. 52
2шт.
