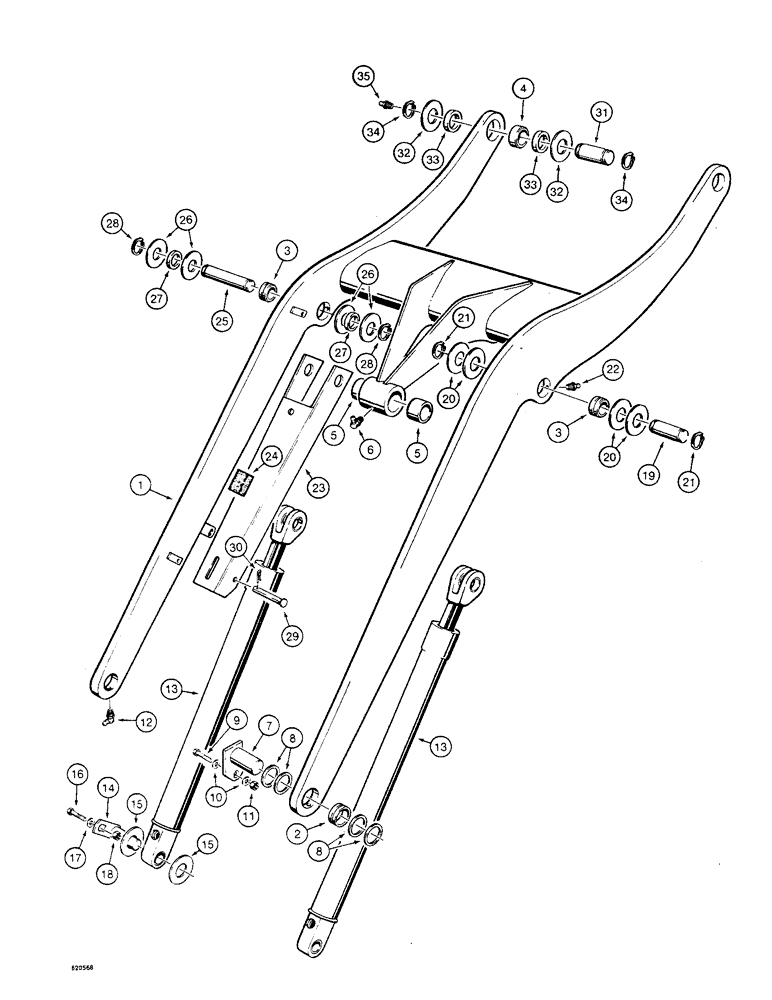

Запчасти Case W4 (168) - LOADER LIFT FRAME AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
H627489
LOADER FRAME - lift, Includes: Ref. 2-5
1шт.
2
H352047
BUSHING
- frame pivot
2шт.
3
H352039
BUSHING
- lift cylinder pivot
2шт.
4
D31140
BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L
- attachment pivot
2шт.
5
D30929
BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L
- BELLCRANK PIVOT
2шт.
6
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, , Bellcrank pivot 90º, 1/8" NPT x .84" lg
1шт.
7
H626671
PIN
- lift arm pivot
2шт.
8
D27770
WASHER
- spacer
8шт.
9
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
2шт.
10
195-525
WASHER,3/8", SAE
- flat, 3/8"
4шт.
12
219-57
LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF
GREASE FITTING - 90 degree, lift arm pivot, 1/4" - 28 taper
2шт.
13
G102319
CYLINDER
- lift, parts list page 156
2шт.
14
H626622
PIN - lift cylinder pivot
2шт.
15
A12089
WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk
- spacer
1шт.
16
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
2шт.
17
195-525
WASHER,3/8", SAE
- flat, 3/8"
2шт.
19
D44840
PIN
- cylinder to arm, right-hand side
1шт.
20
A12089
WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk
- spacer
1шт.
21
D25279
SNAP RING,M35, Int
- pin retaining
2шт.
22
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , straight, taper, Cylinder to arm pivot 1/4"-28 NPT x .54" lg
2шт.
23
H397232
STRUT - loader frame, left-hand side
1шт.
24
D79692
PAD
- strut
1шт.
25
D32930
PIN,38.1mm OD x 127mm L
- cylinder to arm, left-hand side
1шт.
26
A12089
WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk
- spacer
1шт.
27
K1013
SPACER
2шт.
28
D25279
SNAP RING,M35, Int
- pin retaining
2шт.
29
H401752
PIN - strut retaining
1шт.
30
A70250
PIN
HAIR PIN - pin retaining
1шт.
31
H390450
PIN
- bucket hinge
2шт.
32
A12089
WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk
- spacer
1шт.
33
K1013
SPACER
2-3шт.
34
D25279
SNAP RING,M35, Int
- pin retaining
4шт.
35
219-1
LUBE NIPPLE,1/8" - 27 NPTF
GREASE FITTING - straight, bucket pin, 1/8" NPT
2шт.
Выбрано товаров: 35
