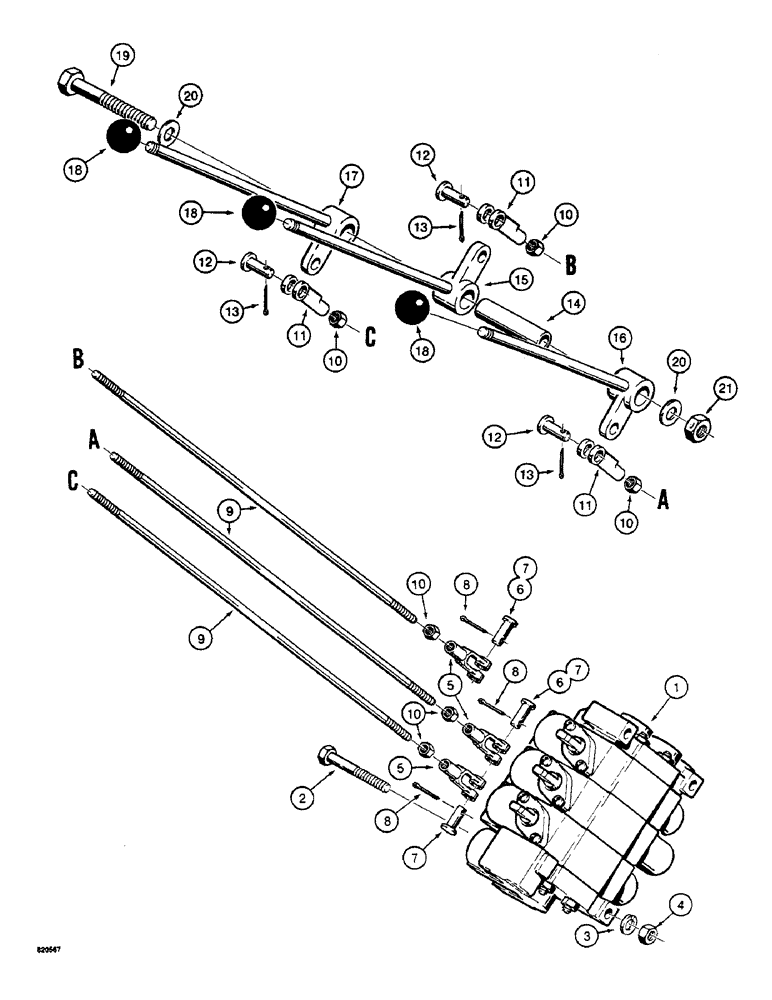

Запчасти Case W4 (166) - LOADER CONTROLS - THREE LEVER, WITH AUXILIARY HYDRAULICS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CONTROL VALVE - loader with auxiliary section, parts list Figure 140

1шт.

2

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

Valve mounting Hex, 3/8"-16 x 2 3/4", G5

3шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

3шт.

4

H382283

YOKE,5/16" - 24

CLEVIS - special, valve end

3шт.

6

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

CLEVIS PIN - special, 1/4" x 51/64", if used

2-3шт.

7

D23693

AXLE PIN

CLEVIS PIN - special, 1/4" x 1", always used on auxiliary valve spool, if used

1-3шт.

8

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), , Pin 1/16" x 1/2"

3шт.

9

H358408

ROD

- lever

3шт.

10

86637933

JAM NUT,5/16" - 24, Gr 5

JAM NUT - hex, 5/16" - 18 NC

6шт.

11

H44198

YOKE

CLEVIS - lever end

3шт.

12

141-53

CLEVIS PIN,5/16" x .940"

- 1/16" x 1/2" long

3шт.

13

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), , Pin 1/16" x 1/2"

3шт.

14

H403287

SLEEVE - spacer, lever bearing

1шт.

15

H655621

LEVER - bucket tilt

1шт.

16

H655639

LEVER

- loader lift

1шт.

17

H655647

LEVER

- auxiliary control

1шт.

18

70213

KNOB

- lever

3шт.

19

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1шт.

20

195-106

WASHER,1/2"

- flat, 1/2"

2шт.

21

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

1шт.
