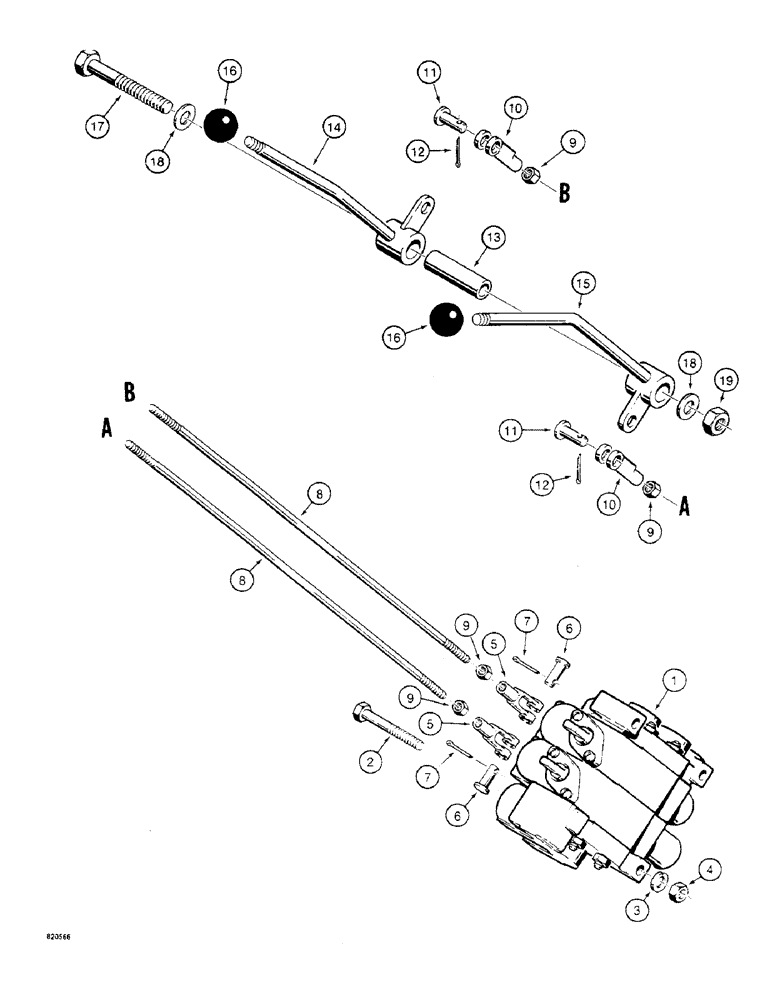

Запчасти Case W4 (164) - LOADER CONTROLS - TWO LEVER, WITHOUT AUXILIARY HYDRAULICS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CONTROL VALVE - loader, parts list Figure 140

1шт.

2

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

Valve mounting Hex, 3/8"-16 x 2 3/4", G5

3шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

3шт.

5

H382283

YOKE,5/16" - 24

CLEVIS - special, valve end

2шт.

6

D23693

AXLE PIN

CLEVIS PIN - special, 1/4" x 1"

2шт.

7

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), , Pin 1/16" x 1/2"

2шт.

8

H358408

ROD

- lever

2шт.

9

86637933

JAM NUT,5/16" - 24, Gr 5

JAM NUT - hex, 5/16" - 18 NC

4шт.

10

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - lever end

2шт.

11

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

2шт.

12

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), , Pin 1/16" x 1/2"

2шт.

13

H358424

SLEEVE - spacer, lever bearing

1шт.

14

H646208

LEVER

- bucket tilt

1шт.

15

H626879

LEVER

- loader lift

1шт.

16

70213

KNOB

- lever

2шт.

17

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- hex head, 1/2" - 13 NC x 3-3/4"

1шт.

18

195-106

WASHER,1/2"

- flat, 1/2"

2шт.

19

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

1шт.
