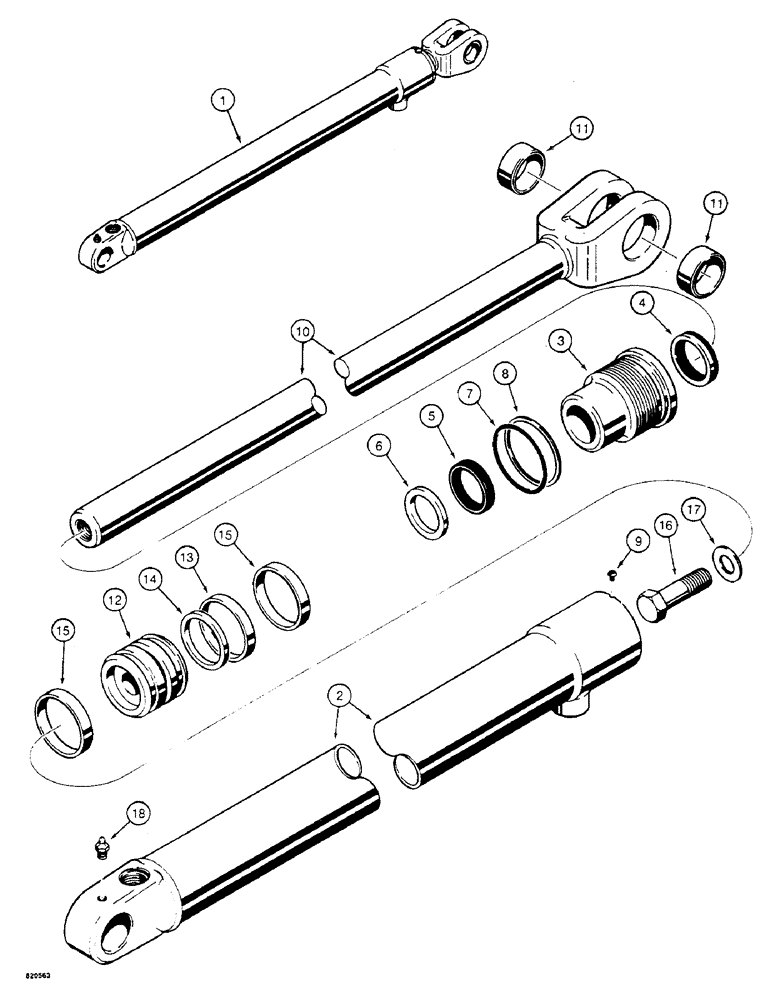

Запчасти Case W4 (156) - G102319 LOADER LIFT CYLINDER (08) - HYDRAULICS

1

G102319

CYLINDER

ASSEMBLY - lift, 2-1/2" (64 MM) ID x 24.93" (633 MM) stroke, Includes: Ref. 1-18

2шт.

2

G102320

TUBE - cylinder

1шт.

G104008

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3-8

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G105550

1шт.

5

D36969

CUP

SEAL - piston rod, wide

1шт.

Part of Seal Kit P/N G105550

1шт.

6

G104224

SEAL

- piston rod, narrow, used in addition to Ref. 5 in some glands

1шт.

Part of Seal Kit P/N G105550

1шт.

7

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105550

1шт.

8

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

BACKUP RING - o-ring

1шт.

Part of Seal Kit P/N G105550

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

10

G102323

ROD ASSEMBLY - piston, 1-1/2" (38 MM) diameter, Includes: Ref. 11

1шт.

11

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- rod

2шт.

G100705

PISTON

ASSEMBLY - cylinder, Includes: Ref. 12-15

1шт.

12

G100706

PISTON

- cylinder

1шт.

13

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G105550

1шт.

14

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

BACKUP RING - SEAL

1шт.

Part of Seal Kit P/N G105550

1шт.

15

G100714

RING

- wear, piston

2шт.

Part of Seal Kit P/N G105550

1шт.

16

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex head, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G105550

SEAL

KIT - seal, Includes: Ref. 4- 8, 13, 14, 15, same as G102406 kit plus item 6 above.

1шт.

G100775

SEAL

- piston rod, service option, severe heat or cold, Includes: Ref. 5

1шт.
