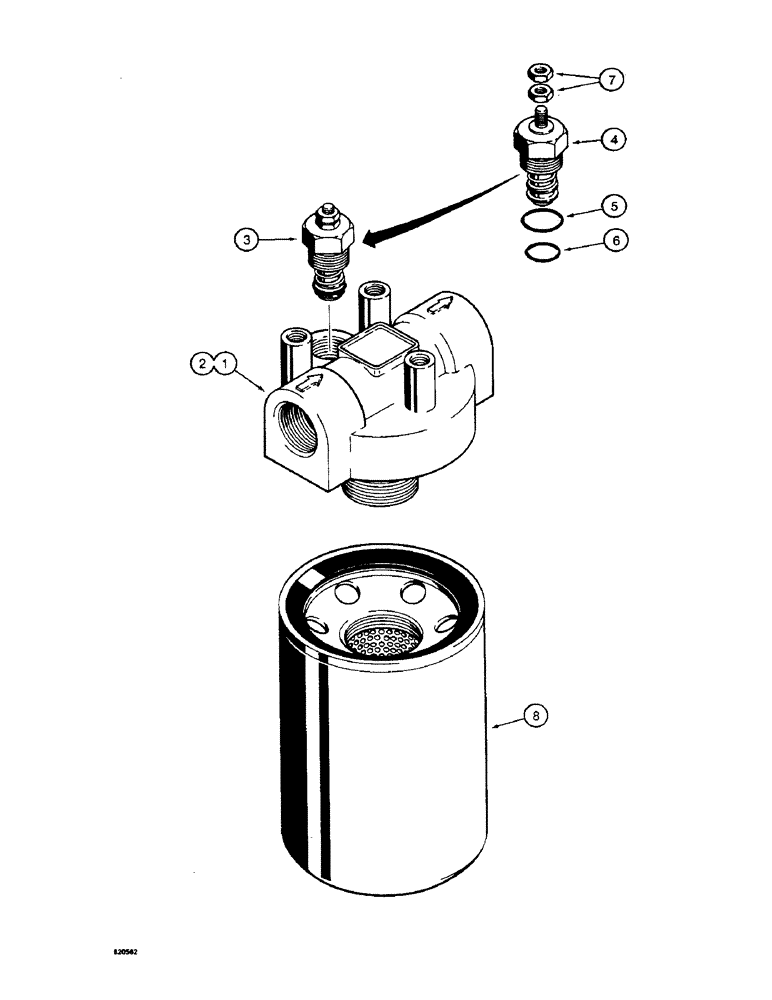

Запчасти Case W4 (154) - H649277 HYDRAULIC OIL FILTER (08) - HYDRAULICS

H649277

FILTER ASSY

HYDRAULIC OIL FILTER, Includes: Ref. 1-8

1шт.

1

NSS

NOT SOLD SEPARAT

BASE - filter, 3/4" NPT ports, used before tractor SN 1166142, for service order H629277 filter assembly and (2) 218-5094 connectors, if used

1шт.

2

NSS

NOT SOLD SEPARAT

BASE - filter, 1-1/16" - 12 o-ring ports, if used, Start Serial: 1166142

1шт.

3

N7782

TRANSMITTER

SWITCH ASSEMBLY - filter restriction indicator, Includes: Ref. 4-7

1шт.

4

NSS

NOT SOLD SEPARAT

SWITCH

1шт.

6

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- piston seal, inner

1шт.

7

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10 - 24 NC

2шт.

8

H335620

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, switch seal, outer

1шт.
