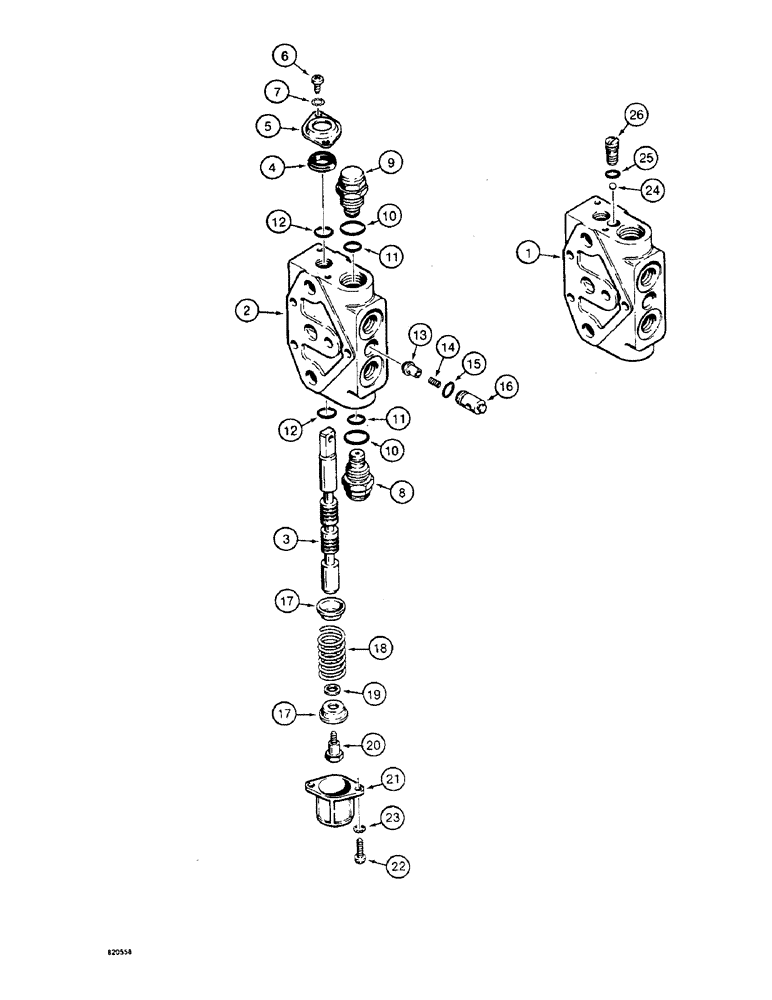

Запчасти Case W4 (146) - LOADER CONTROL VALVE, BUCKET SECTION (08) - HYDRAULICS

N8013

VALVE

SECTION - loader bucket, for service order H649319 section, Includes: Ref. 1-26

1шт.

H649319

KNIFE SECTION

SECTION - loader bucket, Includes: Ref. 1-26

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve section, N8013 section only, uses Ref. 24-26 anticavitation checks

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve section, H649319 section only

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

H655894

RETAINER

KIT - spool retainer and seal, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - spool

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - spool

1шт.

6

182-560

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

MACHINE SCREW - Phillips head, 1/4" - 20 NC x 3/4"

2шт.

7

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

2шт.

8

H649301

CARTRIDGE

CIRCUIT RELIEF VALVE - B port, parts list Figure 152, pre-set to 2650 PSI (17 927 kPa) (182.84 kg/cm per square inch)

1шт.

9

N8011

CIRCUIT RELIEF VALVE - A port, parts list Figure 152, pre-set to 1600 PSI (11 032 kPa) (112.42 kg/cm per square inch), Includes: Ref. 10 - 12

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- large

1шт.

11

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- small

1шт.

12

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- spool seal

2шт.

H644880

CHECK VALVE

LOAD CHECK VALVE - valve section, Includes: Ref. 13-16

1шт.

13

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

15

D61967

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

- dody

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - load check

1шт.

H655902

KIT

- spool, bucket, three position, Includes: Ref. 17-23

1шт.

H655902

KIT

- spool, bucket, three position, Includes: Ref. 17-23

1шт.

17

NSS

NOT SOLD SEPARAT

SEAT - centering spring

2шт.

18

NSS

NOT SOLD SEPARAT

SPRING - centering

1шт.

19

NSS

NOT SOLD SEPARAT

SPACER - seat

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT - shoulder, special

1шт.

H401182

CAP

ASSEMBLY - end, Includes: Ref. 21-23

1шт.

21

NSS

NOT SOLD SEPARAT

CAP - spool end

1шт.

22

182-560

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

MACHINE SCREW - phillips head, 1.4" - 20 NC x 3/4"

1шт.

23

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

2шт.

N8014

VALVE, CHECK

ANTICAVITATION CHECK ASSEMBLY - used in N8013 section only, Includes: Ref. 24-26

2шт.

24

NSS

NOT SOLD SEPARAT

BALL - anticavitation

1шт.

25

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Body

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - anticavitation

1шт.
