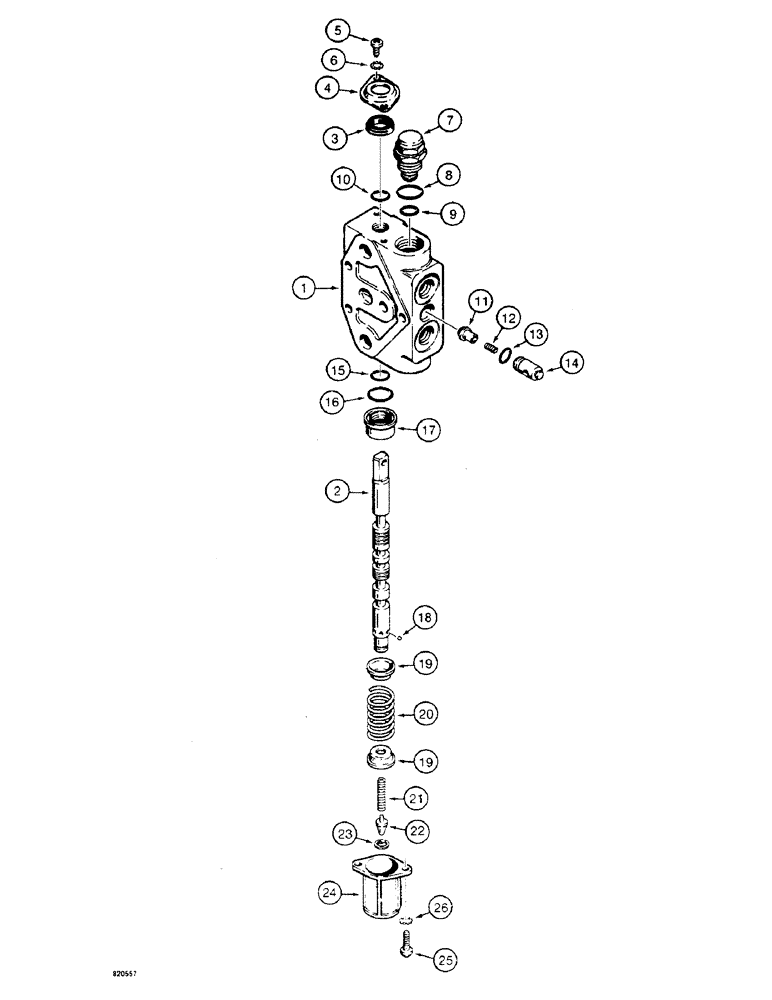

Запчасти Case W4 (144) - LOADER CONTROL VALVE, LIFT SECTION (08) - HYDRAULICS

H649178

KNIFE SECTION

SECTION - loader lift, Includes: Ref. 1-26

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

H655894

RETAINER

KIT - spool retainer and seal, Includes: Ref. 3-6

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - spool

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - spool

1шт.

5

182-560

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

MACHINE SCREW - Phillips head, /4" 20 NC x 3/4"

2шт.

6

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

2шт.

7

H649301

CARTRIDGE

CIRCUIT RELIEF VALVE - parts list Figure 152, pre-set to 2650 PSI (17 927 kPa) (182.84 kg/cm per square inch), Includes: Ref. 8 & 9

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- large

1шт.

9

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- small

1шт.

10

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- spool seal

1шт.

H644880

CHECK VALVE

LOAD CHECK VALVE - valve section, Includes: Ref. 11-14

1шт.

11

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

13

D61967

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

- body

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - load check

1шт.

N8010

KIT - spool, float, four position, Includes: P/N H644856 and Ref. 15 - 26

1шт.

H644856

KIT

- seal, Includes: Ref. 15 & 16

1шт.

15

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- spool seal, small

1шт.

16

S91469

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

- detent sleeve, large

1шт.

17

NSS

NOT SOLD SEPARAT

SLEEVE - detent

1шт.

18

NSS

NOT SOLD SEPARAT

BALL - detent

4шт.

19

NSS

NOT SOLD SEPARAT

SEAT - centering spring

2шт.

20

NSS

NOT SOLD SEPARAT

SPRING - centering

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - poppet

1шт.

22

NSS

NOT SOLD SEPARAT

POPPET

1шт.

23

NSS

NOT SOLD SEPARAT

RETAINING RING - poppet

1шт.

H411678

CAP

ASSEMBLY - eng, Includes: Ref. 24-26

1шт.

24

NSS

NOT SOLD SEPARAT

CAP - spool end

1шт.

25

182-560

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

MACHINE SCREW - Phillips head, 1/4" - 20 x 3/4"

2шт.

26

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

2шт.
