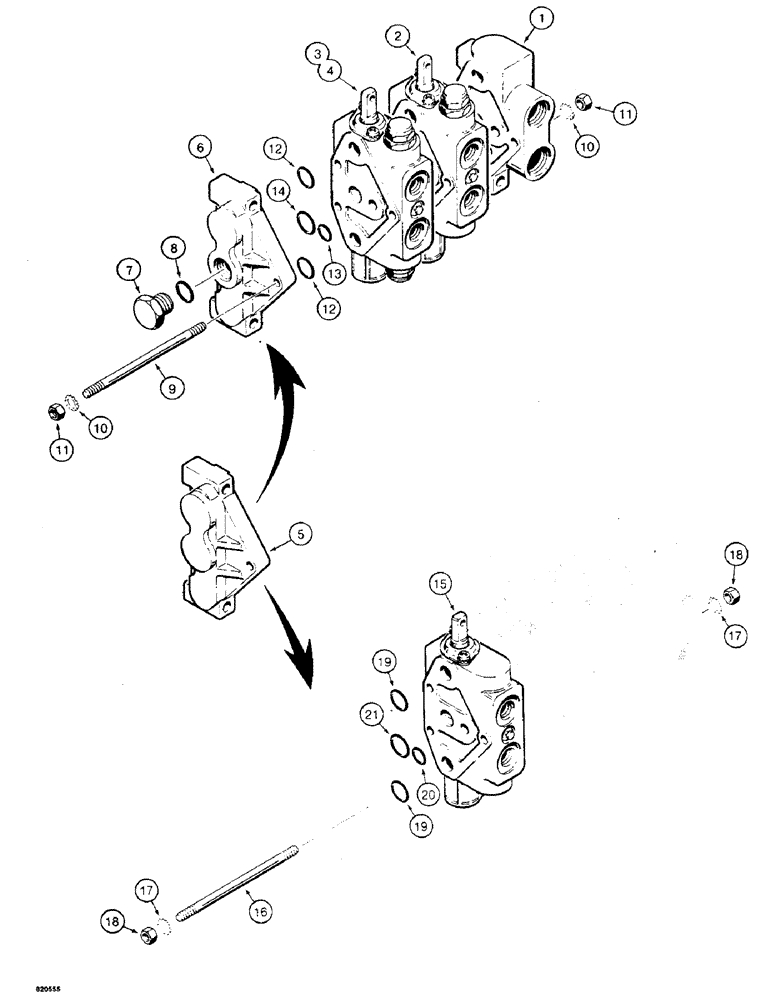

Запчасти Case W4 (140) - LOADER CONTROL VALVES, TWO AND THREE SPOOL VALVES, TWO SPOOL VALVES, THIRD SPOOL KIT (08) - HYDRAULICS

H626523

VALVE

ASSEMBLY - loader control, two spool includes anticavitation check assemblies in bucket section, Includes: Ref. 1-21

1шт.

H660290

VALVE

ASSEMBLY - loader control, two spool, Includes: Ref. 1-21

1шт.

1

H401158

COVER

END SECTION - inlet - outlet

1шт.

2

H649178

KNIFE SECTION

SECTION - lift, parts list Figure 144

1шт.

3

N8013

VALVE

SECTION - bucket, used with H626523 valve assembly only, parts list Figure 146, for service order H649319

1шт.

4

H649319

KNIFE SECTION

SECTION - bucket, used with H660290 valve assembly only, parts list Figure 146

1шт.

5

H390724

END SECTION - cover plate, without plug, used with H626523 valve assembly, interchangeable with item 6, if used

1шт.

6

N8012

REAR COVER

END SECTION - cover plate plug, used with H660290 valve assembly, interchangeable with item 5, if used

1шт.

7

86512512

PLUG,7/8" - 14 ORB

End section, Used with item 6 only, Incl. Ref. 8 Hex Hd, 7/8"-14 ORB

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

H644906

TIE-ROD

TIE ROD ASSEMBLY AND SEALS - two spool valve assembly, Includes: Ref. 9-14

1шт.

9

NSS

NOT SOLD SEPARAT

TIE ROD - two spool, 3/8" - 24 NF

3шт.

10

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

6шт.

11

129-123

NUT,3/8"-24, G5

6шт.

H644914

KIT

SEAL KIT - between section, Includes: Ref. 12-14

3шт.

12

A55911

O-RING,0.807" ID

- between sections, .80" (20.3 MM) ID

2шт.

13

NSS

NOT SOLD SEPARAT

O-RING - between sections, .63" (16.1 MM) ID

1шт.

14

S91469

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

- between sections, .86" (21.9 MM) ID

1шт.

H655852

KIT

- auxiliary valve section, third spool, if used, Includes: Ref. 15-21

1шт.

15

H655993

VALVE

SECTION - auxiliary, parts list page 150, replaced by H672315, third spool kit

1шт.

N8007

TIE-ROD

TIE ROD ASSEMBLY AND SEALS - three spool valve assembly, third spool kit

1шт.

16

NSS

NOT SOLD SEPARAT

TIE ROD - three spool, 3/8" - 24 NF, third spool kit

3шт.

17

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, , Third spool kit Ext Tooth, 3/8"

6шт.

18

129-123

NUT,3/8"-24, G5

Third spool kit 3/8"-24, G5

6шт.

H644914

KIT

SEAL KIT - between sections, third spool kit, Includes: Ref. 19-21

4шт.

19

A55911

O-RING,0.807" ID

- between sections, .80" (20.3 MM) ID, third spool kit

2шт.

20

NSS

NOT SOLD SEPARAT

O-RING - between sections, .63" (16.1 MM) ID, third spool kit

1шт.

21

S91469

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

- between sections, .86" (21.9 MM) ID, third spool kit

1шт.
