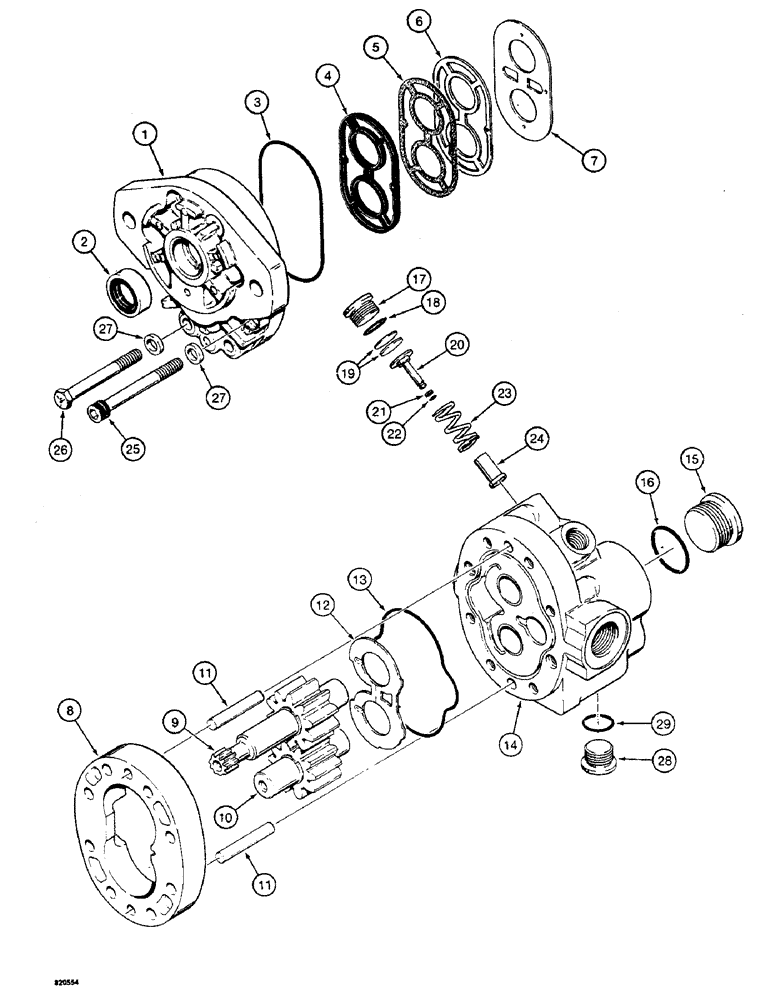

Запчасти Case W4 (138) - H626895 HYDRAULIC PUMP (08) - HYDRAULICS

H626895

PUMP

HYDRAULIC PUMP - steering and equipment, Includes: Ref. 1-29

1шт.

1

R31026

COVER

ASSEMBLY - front

1шт.

2

R31027

RUBBER SEAL

SEAL - input shaft

1шт.

Part of Seal Kit, P/N H645689

1шт.

3

F30415

O-RING,3" ID

- front cover to housing

1шт.

Part of Seal Kit, P/N H645689

1шт.

4

R31023

SEAL

V-SEAL - front cover

1шт.

Part of Seal Kit, P/N H645689

1шт.

5

R31022

GASKET

- wear plate

1шт.

Part of Seal Kit, P/N H645689

1шт.

6

R31021

SHIELD

- heat

1шт.

Part of Seal Kit, P/N H645689

1шт.

7

R31020

LARGE PLATE

WEAR PLATE - pump gear

1шт.

Part of Seal Kit, P/N H645689

1шт.

8

N7952

HOUSING

- pump gear

1шт.

9

H643924

DRIVE GEAR - pump

1шт.

10

H643932

GEAR, IDLER

DRIVEN GEAR - pump

1шт.

11

G15011

DOWEL

PIN - housing alignment, 5/16" x 1-1/2"

2шт.

12

R31029

LARGE PLATE

PLATE - thrust

1шт.

Part of Seal Kit, P/N H645689

1шт.

13

F30415

O-RING,3" ID

- housing to rear cover

1шт.

Part of Seal Kit, P/N H645689

1шт.

14

H643940

COVER ASSEMBLY - rear

1шт.

15

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

rear cover, 7/8" OD tube, Includes Ref 16 Hex Soc, 1 3/16"-12 ORB

1шт.

16

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- plug

1шт.

N7953

VALVE, PRESSURE RELI

RELIEF VALVE ASSEMBLY - pump, Includes: Ref. 17-24

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG - relief valve

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug

1шт.

19

N8018

SHIM,.005" Thk

Relief valve .005" Thk

1шт.

20

NSS

NOT SOLD SEPARAT

GUIDE - relief valve

1шт.

21

D40357

RING

BACKUP RING - o-ring

1шт.

22

S5598

O-RING,0.106" ID x 0.218" OD x 0.73"

- guide

1шт.

23

D37148

SPRING

- relief valve

1шт.

24

D37074

PLUNGER

- relief valve

1шт.

25

61-540

SCREW - hex socket head, 5/16" - 18 NC x 2-1/2"

2шт.

26

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

6шт.

27

195-2026

WASHER,.328" x 5/8" x .065"

- flat, 5/16"

8шт.

28

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Rear cover, if used, Incl Ref 29 Hex Soc, 3/4"-16 ORB

1шт.

29

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug

1шт.

H645689

SEAL

KIT - seal, Includes: Ref. 2 - 7, 12 and 13

1шт.
