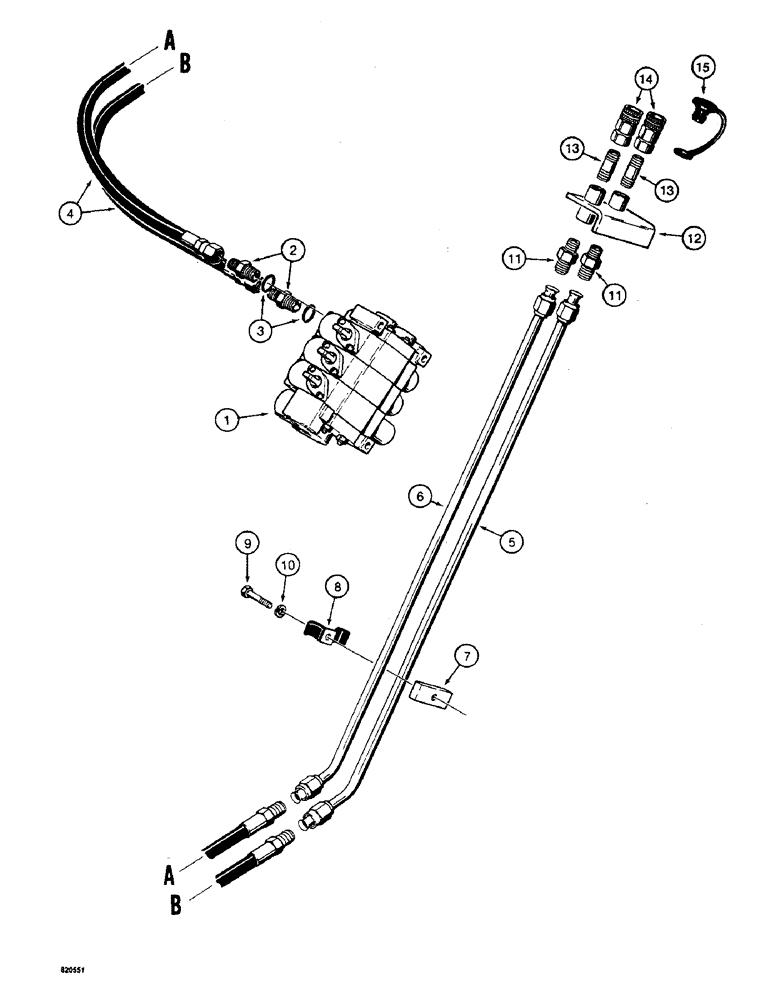

Запчасти Case W4 (132) - LOADER AUXILIARY HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - loader with auxiliary hydraulics, see parts list Figure 140

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

straight, male, control valve to hose, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

4

H259366

HOSE,0.38" ID x 84.00", SAE 100R1A

Control Valve to Tube 0.38" ID x 84.00", SAE 100R1A

2шт.

5

H655704

TUBE ASSY.,12.7 mm OD x 510, 741.5 mm L

TUBE - lower, from control valve B port

1шт.

6

H655712

TUBE ASSY.,12.7 mm OD x 736.5, 45.7 mm L

TUBE - upper, from control valve A port

1шт.

7

D37341

BLOCK

- tapped, tube support, welds to right-hand loader arm

1шт.

8

A12032

CLAMP

- tube

1шт.

9

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

11

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - straight, male, tube to mounting angle

2шт.

12

H660449

ANGLE

- mounting, welds to right-hand loader arm

1шт.

13

221-187

PIPE,Nipple, 1/2" NPT x 1 1/2"

NIPPLE - pipe, connector, 12 NPT x 1-1/2" (38 MM) long

2шт.

14

H49718

COUPLING

- quick disconnect

2шт.

15

A137135

PLUG

- dust protective, quick disconnect

2шт.
