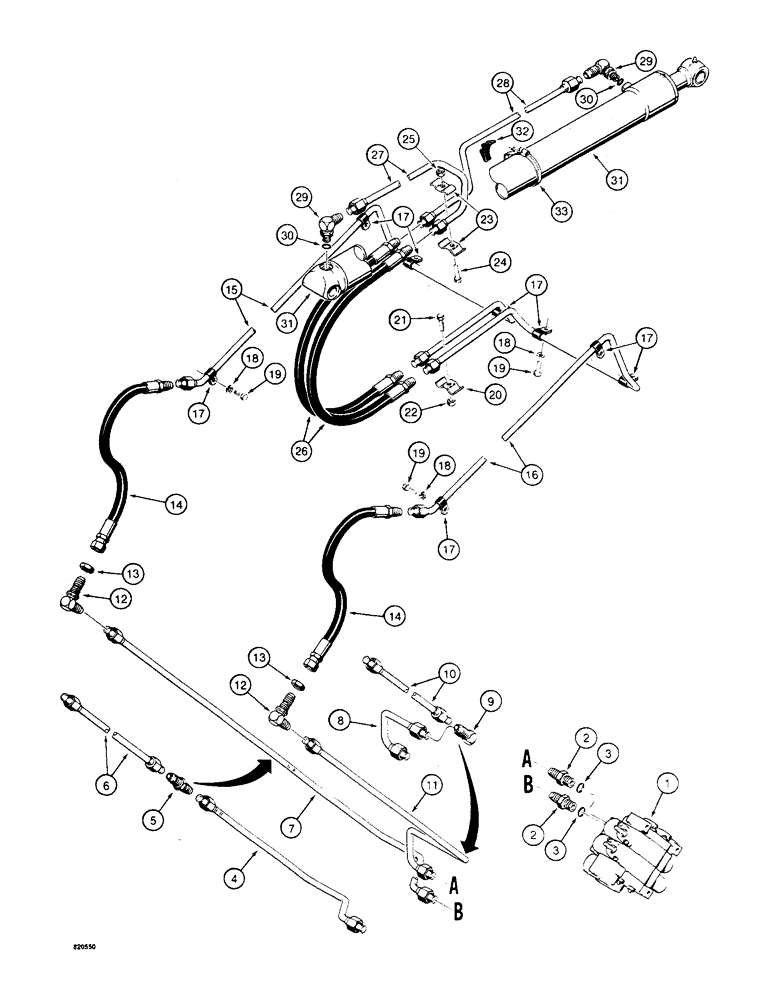

Запчасти Case W4 (130) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - loader, parts list Figure 140

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

straight, male, valve to tube, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

4

H627372

TUBE - control valve to rod end of bucket cylinder, if used 0.5" OD

1шт.

5

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, male, tube, if used

1шт.

6

H626556

TUBE,0.5" OD x 27" L

- to rod end of bucket cylinder, if used

1шт.

7

H659821

TUBE - control valve to rod end of bucket cylinder, used in place of Ref. 4, 5, and 6 above, if used 12.7 mm OD

1шт.

8

H627356

TUBE,0.5" OD x 3.25, 4.75" L

- control valve to closed end of bucket cylinder, if used

1шт.

9

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

male, tube, if used 90º, 3/4"-16, 37º x 3/4"-16, 37º

1шт.

10

H626556

TUBE,0.5" OD x 27" L

- to closed end of bucket cylinder, if used

1шт.

11

H659813

TUBE - control valve to closed end of bucket cylinder, used in place of items 8, 9, and 10 above, if used 12.7 mm OD

1шт.

12

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

2шт.

13

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, , elbow Blkhd, 3/4"-16

2шт.

14

R34485

HOSE

- to bucket cylinder tube, 23" (584 MM) long

2шт.

15

H627299

TUBE,0.5" OD

- left-hand loader arm to rod end of bucket cylinder

1шт.

16

H627257

TUBE,0.5" OD

- right-hand loader arm to closed end of bucket cylinder

1шт.

17

49838

CLAMP

- tube to loader lift arm

8шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

19

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

8шт.

20

A12032

CLAMP

- tube to loader lift arm center

1шт.

21

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

22

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

23

A12032

CLAMP

-, Serial Range: tube-tube

2шт.

24

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

25

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

26

H358119

HOSE

- to bucket cylinder, 30" (762 MM) long

2шт.

27

H626531

TUBE,0.5" OD

- to bucket cylinder closed end

1шт.

28

H627364

TUBE,0.5" OD x 20.83, 4.41" L

- to bucket cylinder rod end

1шт.

29

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, adjustable, tube to bucket cylinder, Includes: Ref. 30

2шт.

30

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

31

G102358

CYLINDER - bucket tilt, parts list Figure 158

1шт.

32

D38648

BLOCK

SADDLE - tube mounting

1шт.

33

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - tube to saddle, worm drive SAE no. 52

1шт.
