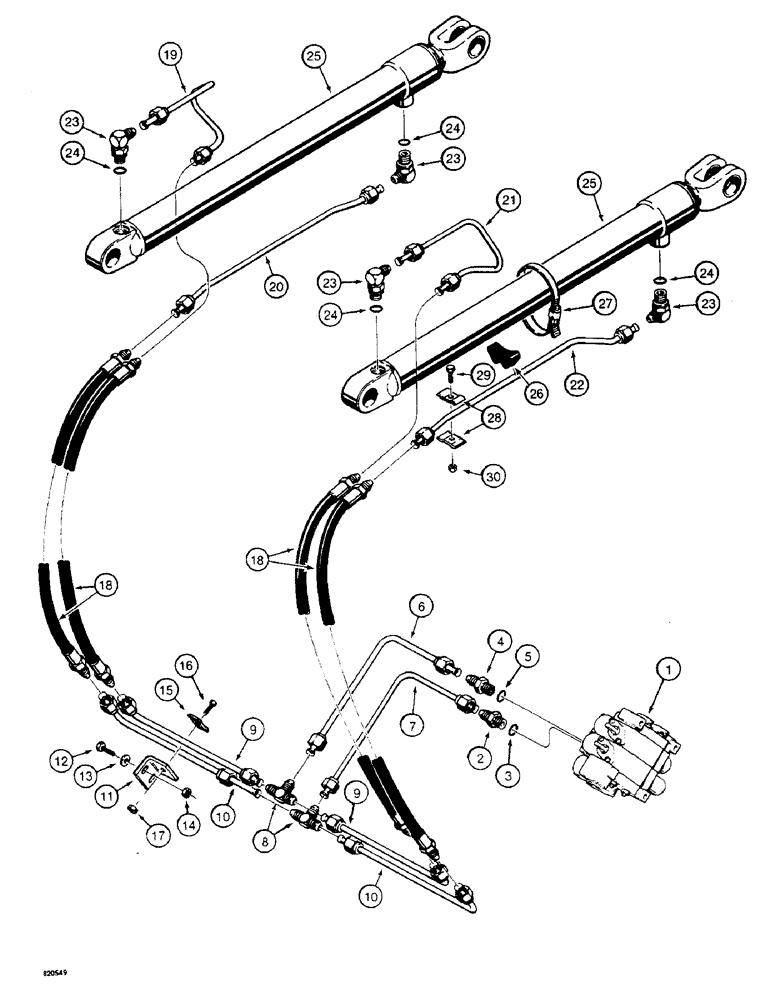

Запчасти Case W4 (128) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - loader, parts list Figure 140

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

straight, male, control valve B port to rod end of cylinder tube, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

4

H638726

CONNECTOR - special restrictor, straight, male, control valve A port to closed end of cylinder tube, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

6

H626630

TUBE - control valve to closed end cylinder, upper 0.5" OD x 10.15, 7.19" L

1шт.

7

H626721

TUBE - control valve to rod end of cylinders, upper 0.5" OD x 10.15, 7.19" L

1шт.

8

218-594

TEE,3/4"-16, 37 Degree

- manifold, right-hand to left-hand cylinders

2шт.

9

H626739

TUBE,0.5" OD x 12.35, 2.65" L

- to closed end of cylinders

2шт.

10

H626747

TUBE - to rod end of cylinders 0.5" OD x 13.60, 3.73" L

2шт.

11

H336453

BRACKET - tube support to tractor frame

2шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

13

195-103

WASHER,5/16"

- flat, 5/16"

4шт.

14

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

15

A12032

CLAMP

- tube

2шт.

16

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

17

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

18

D68339

HOSE

- to lift cylinders, 24" (610 MM) long

4шт.

19

H627091

TUBE - left-hand, to closed end of lift cylinder 0.5" OD

1шт.

20

H627216

TUBE,0.5" OD x 21.22, 4.32" L

- left-hand, to rod end of lift cylinder

1шт.

21

H627109

TUBE,0.5" OD

- right-hand, to closed end of lift cylinder

1шт.

22

H627208

TUBE,0.5" OD x 21.22, 4.32" L

- right-hand, to rod end of lift cylinder

1шт.

23

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, tube to cylinder, Includes: Ref. 24

4шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

25

G102319

CYLINDER

- lift, parts list Figure 156

2шт.

26

D38648

BLOCK

SADDLE - tube mounting

2шт.

27

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - tube to saddle, worm drive SAE no. 52

2шт.

28

A12032

CLAMP

- tube

4шт.

29

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

30

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2шт.
