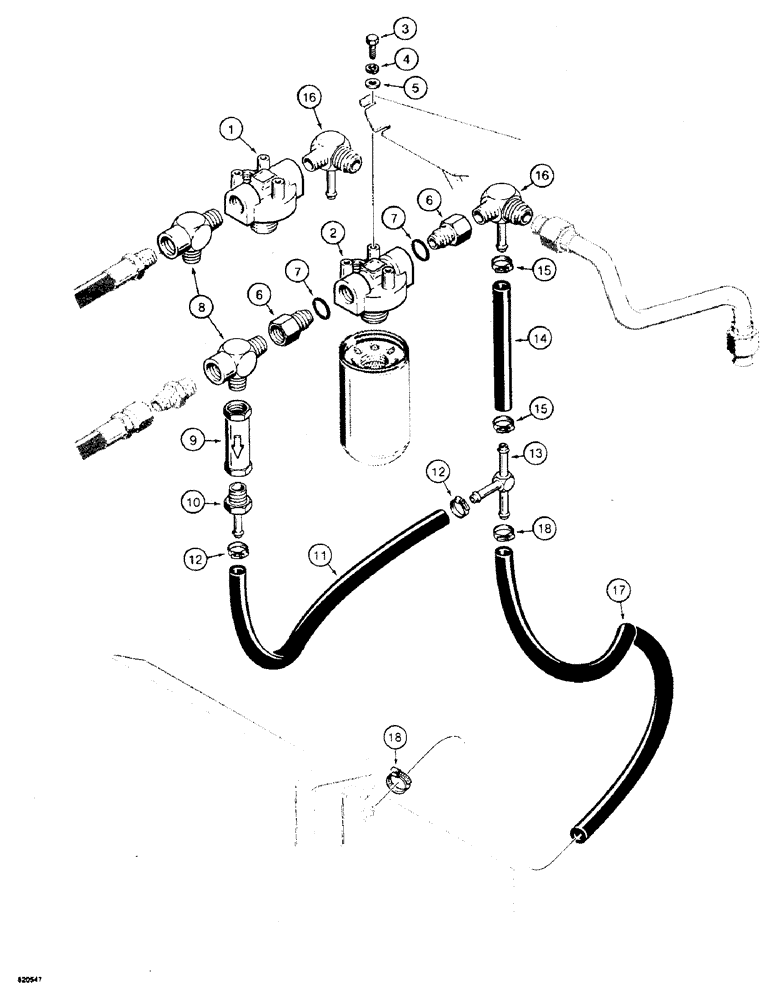

Запчасти Case W4 (124) - HYDRAULIC OIL FILTER AND BYPASS CIRCUIT (08) - HYDRAULICS

H649277

FILTER ASSY

FILTER ASSEMBLY - oil, 1-1/16" - 12 o-ring ports only, parts list Figure 154, Includes: Ref. 1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

BASE - filter, 3/4" NPT ports, for service order H649277 filter assembly and item 6 (218-5094) connector, if used, Serial Range: -1166142

1шт.

2

NSS

NOT SOLD SEPARAT

BASE - filter, 1-1/6" - 12 o-ring ports, if used, Start Serial: 1166142

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

4

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

195-525

WASHER,3/8", SAE

- flat, 5/16", if used

2шт.

6

218-5094

ADAPTER,1-3/16" - 12 ORB x 3/4" NPT

CONNECTOR - filter base, 1-1/16" - 12, o-ring to 3/4" NPT, used with Ref. 2 only, if used, Includes: Ref. 7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

8

217-1178

TEE,3/4"-14 Male x 3/4"-14 Female Run

- bypass

1шт.

9

H637132

VALVE

- check, bypass

1шт.

10

217-377

FITTING,1/2" Hose Barb x 3/4" Male NPTF

CONNECTOR - bypass

1шт.

11

H396549

LARGE HOSE

HOSE - bypass, 1/2" (12.7 MM) ID x 12" (305 MM) long

1шт.

Use D63994 and cut to length

1шт.

12

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP - hose, worm drive, SAE no. 8

2шт.

13

L59109

TEE

- 1/2" hose barb

1шт.

14

L59112

HOSE,0.50" ID x 8.00", SAE 100R3

Bypass 0.50" ID x 8.00", SAE 100R3

1шт.

15

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP - hose, worm drive, SAE no. 8

2шт.

16

H373837

FITTING

- special, restrictor

1шт.

17

D63994

LARGE HOSE

HOSE - return to tank, 1/2" (12.7 MM) ID x 32" (813 MM) long

1шт.

Use H371856 (36") or S118388 (168") and cut to length

1шт.

18

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP - hose, worm drive, SAE no. 8

2шт.
