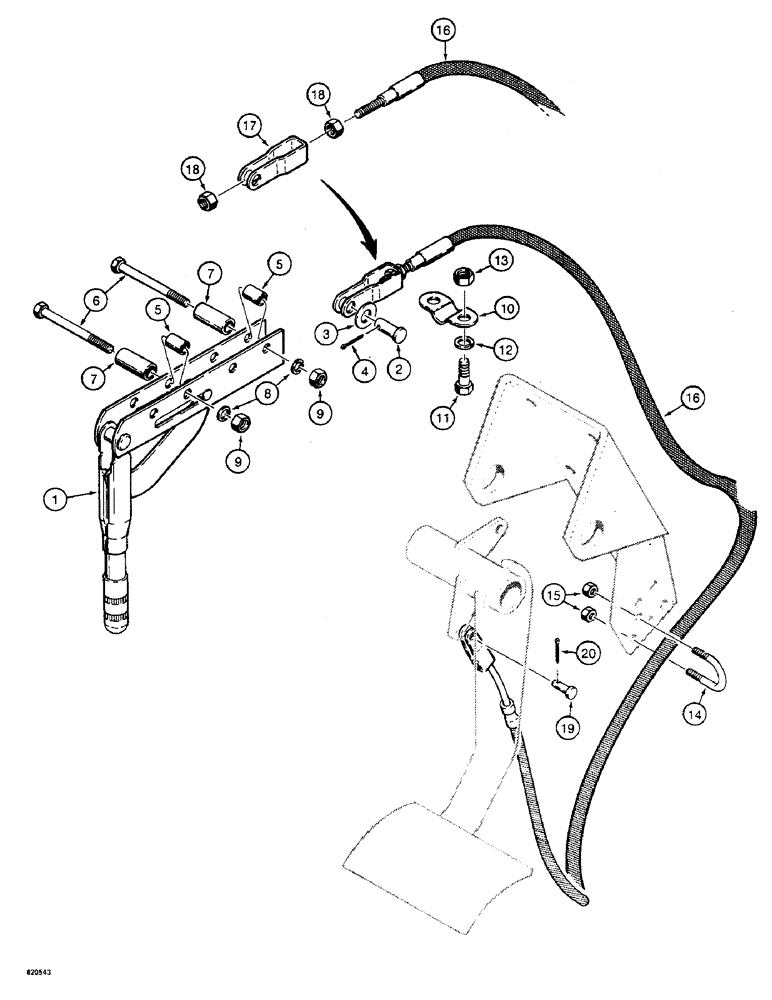

Запчасти Case W4 (116) - PARKING BRAKE (07) - BRAKES

H506881

HANDLE

LEVER ASSEMBLY - parking brake, Includes: Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER

1шт.

2

L30975

AXLE PIN,7.82mm OD x 39.69mm L

CLEVIS PIN - lever to cable, 5/16" x 1-5/16"

1шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

4

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

5

H53942

SPACER

- brake lever, .78" (19.8 MM) long

2шт.

6

113-133

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex head, 5/16" - 18 NC X 3-1/4"

2шт.

7

D95555

SPACER

- bolt, 1.40" (35.6 MM) long

2шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

2шт.

10

A55980

CLAMP

- brake cable

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

H166421

HARDWARE

U-BOLT - brake cable

1шт.

15

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

H358036

CABLE

ASSEMBLY - brake, Includes: Ref. 16 & 17

1шт.

16

NSS

NOT SOLD SEPARAT

CABLE - parking brake, Serial Range: lever-pedal

1шт.

17

L32862

CLEVIS -, Serial Range: cable-pedal

1шт.

18

129-122

NUT,5/16"-24, G5

2шт.

19

H44586

AXLE PIN

CLEVIS PIN - special, clevis to pedal, 3/8" x 1"

1шт.

20

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , Clevis pin 1/8" x 1"

1шт.
