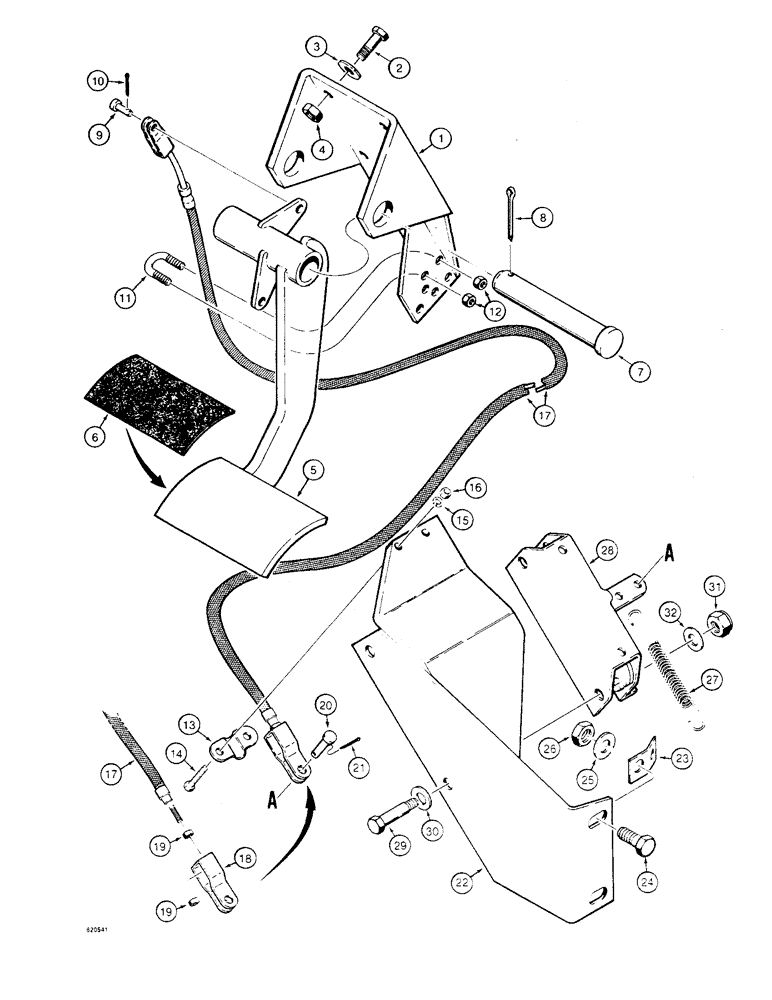

Запчасти Case W4 (114) - BRAKE PEDAL SYSTEM (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
H652339
BRACKET
- pedal mounting
1шт.
2
113-417
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
4шт.
3
195-533
WASHER,1/2", SAE
- flat, 1/2"
4шт.
4
131-1182
LOCK NUT,1/2"-13, GA
NUT - hex, self-locking, 1/2" 13 NC
4шт.
5
H652321
PEDAL
- brake
1шт.
6
H397398
STRIP
- anti-skid
1шт.
7
H69476
RETAINER
CLEVIS PIN - special, pedal pivot, 1" x 6"
1шт.
8
132-307
COTTER PIN,1/4" x 1 3/4"
PIN, Split (Cotter), , Clevis pin 1/4" x 1 3/4"
1шт.
9
H44206
CLEVIS COUPLING,7.94mm OD x 27.78mm L
CLEVIS PIN - special, cable to pedal, 5/16" x 1"
1шт.
10
132-310
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), , Clevis pin 1/8" x 1"
1шт.
11
H166421
HARDWARE
U-BOLT - brake cable retaining
1шт.
12
131-1180
LOCK NUT,1/4"-20, GA
NUT, LOCK, 1/4"-20, GA
2шт.
13
A55980
CLAMP
- brake cable
1шт.
14
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
15
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
16
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
H358036
CABLE
ASSEMBLY - brake pedal, Includes: Ref. 17-19
1шт.
17
NSS
NOT SOLD SEPARAT
CABLE - brake, Serial Range: pedal-actuator
1шт.
18
L32862
CLEVIS - cable to brake actuator
1шт.
19
129-122
NUT,5/16"-24, G5
2шт.
20
H44586
AXLE PIN
CLEVIS PIN - special, clevis to actuator, 3/8" x 1"
1шт.
21
132-310
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), , Clevis pin 1/8" x 1"
1шт.
22
H627414
BRACKET
- brake actuator support
1шт.
23
H397281
RETAINER
- spring
1шт.
24
113-417
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
2шт.
25
R24718
WASHER
- special, hardened
2шт.
26
131-1182
LOCK NUT,1/2"-13, GA
NUT - hex, self-locking, 1/2" - 13 NC
2шт.
27
H397406
SPRING
- pedal return
1шт.
28
H638718
CALIPER
ACTUATOR - disc brake, see parts list Figure 118, Includes: Ref. 29-31
1шт.
29
H391300
BOLT
- shoulder
2шт.
30
195-533
WASHER,1/2", SAE
- flat, 1/2"
2шт.
31
131-508
NUT,3/8"-16
NUT - hex, self-locking, 3/8" - 16 NC, heavy duty
2шт.
32
195-525
WASHER,3/8", SAE
- flat, 3/8"
2шт.
Выбрано товаров: 33
