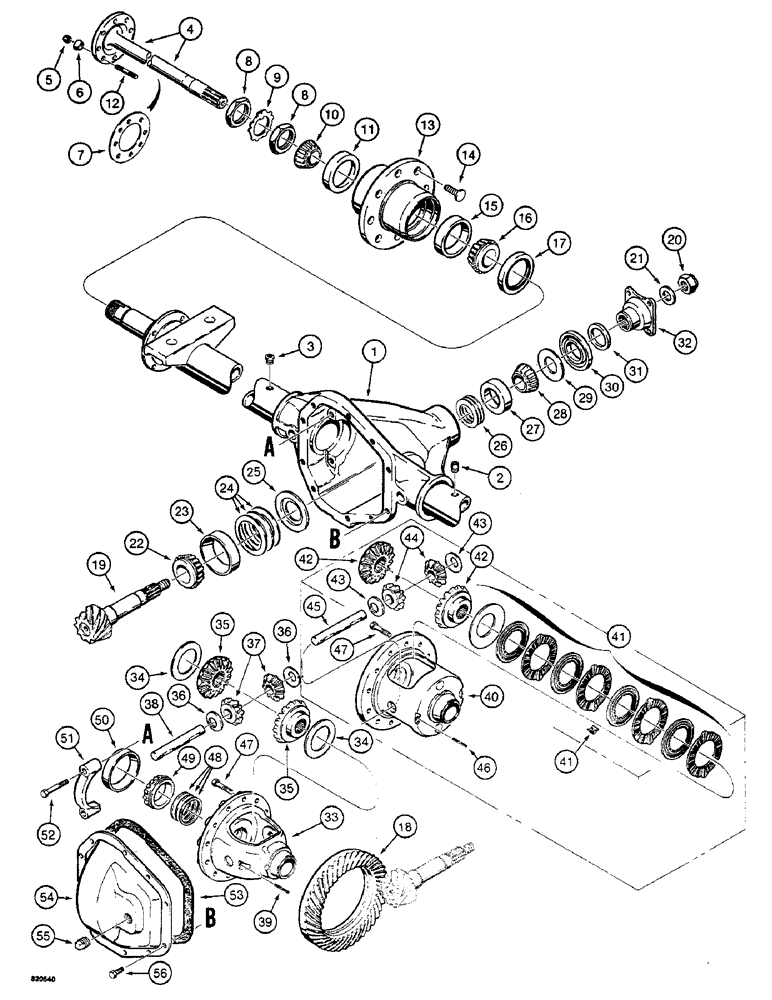

Запчасти Case W4 (108) - FRONT AND REAR AXLE ASSEMBLIES (06) - POWER TRAIN

H626960

AXLE

ASSEMBLY - front and rear, Includes: Ref. 1-56

2шт.

H630368

HOUSING ASSEMBLY - axle, Includes Ref. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

2

H393199

VENT

BREATHER - housing, 1/8" NPT

1шт.

3

221-1849

PLUG

- housing, 1/8" NPT

1шт.

4

H348003

AXLE

SHAFT - axle

2шт.

5

131-1247

LOCK NUT,7/16"-20, GC

NUT - hex, self-locking, 7/16" - 20 NF

16шт.

6

H275164

STUD

ADAPTER - nut

16шт.

7

H364026

GASKET

- axle flange

2шт.

8

H136176

NUT

- wheel bearing

4шт.

9

H350561

LOCK WASHER

- lock

2шт.

10

H757872

CONE

- wheel bearing, outer

2шт.

H630350

HUB ASSY.

WHEEL HUB ASSEMBLY, Includes: Ref. 11-15

2шт.

11

A27138

BEARING CUP,85 mm OD x 17.462 mm

CUP - wheel bearing, outer

1шт.

12

S61932

STUD

- hub

8шт.

13

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

14

H350553

WHEEL

BOLT - hub, special

8шт.

15

A28168

CUP

- wheel bearing, inner

1шт.

16

W15476

TAPERED BEARING

CONE - wheel bearing, inner

2шт.

17

H757880

SEAL

OIL SEAL - hub

2шт.

H630376

GEAR

PINION AND RING GEAR SET, Includes: Ref. 18-21

1шт.

18

NSS

NOT SOLD SEPARAT

RING GEAR - carrier

1шт.

19

NSS

NOT SOLD SEPARAT

PINION SHAFT - input

1шт.

20

H224642

NUT

- hex, self-locking, special, pinion

1шт.

Part of Shim and Gasket Kit, P/N H644153

1шт.

21

H224501

WASHER

- special, pinion, 7/8 inch

1шт.

Part of Shim and Gasket Kit, P/N H644153

1шт.

22

R10276

ROLLER BEARING,1.686" ID x 1.1669"

CONE - pinion bearing, inner

1шт.

23

R10277

BEARING CUP,3.5" OD x 0.9063"

CUP - pinion bearing, inner

1шт.

24

H136234

SHIM,.003" Thk

Pinion (0.08 mm), Inner .003" Thk

1шт.

Part of Shim and Gasket Kit, P/N H644153

1шт.

24

H136242

SHIM,.005" Thk

Pinion (0.13 mm), Inner .005" Thk

1шт.

Part of Shim and Gasket Kit, P/N H644153

1шт.

24

H136259

SHIM,.010" Thk

Pinion (0.25 mm), Inner .010" Thk

1шт.

Part of Shim and Gasket Kit, P/N H644153

1шт.

25

H349647

BAFFLE

- pinion

1шт.

26

H136192

SHIM,.003" Thk

Pinion (0.08 mm), Outer .003" Thk

1шт.

Part of Shim and Gasket Kit, P/N H644153

1шт.

26

H136200

SHIM,.005" Thk

Pinion (0.13 mm), Outer .005" Thk

1шт.

Part of Shim and Gasket Kit, P/N H644153

1шт.

26

H136218

SHIM,.010" Thk

Pinion (0.25 mm), Outer .010" Thk

1шт.

Part of Shim and Gasket Kit, P/N H644153

1шт.

26

H136226

SHIM,.030" Thk

Pinion (0.76 mm), Outer .030" Thk

1шт.

Part of Shim and Gasket Kit, P/N H644153

1шт.

27

H747816

CUP

- pinion bearing, outer

1шт.

28

H747824

ROLLER BEARING,1.25" ID x 1.1563"

CONE - pinion bearing, outer

1шт.

29

H224535

SHIELD

SLINGER - oil

1шт.

30

H758326

OIL SEAL

OIL SEAL - pinion, outer

1шт.

H635425

FLANGE

COMPANION FLANGE KIT - used on front axle only, Includes: Ref. 31 & 32

1шт.

31

H224527

SHIELD

- dirt

1шт.

32

NSS

NOT SOLD SEPARAT

FLANGE - companion

1шт.

H579946

CASE ASSY.

DIFFERENTIAL CASE ASSEMBLY - standard, not available as an assembly, order Ref.33 thru 39 separately, Includes: Ref. 33-39

1шт.

33

H393793

DIFFERENTIAL

CASE - differential, standard

1шт.

34

H136408

WASHER

THRUST WASHER - side gear

2шт.

35

H393801

GEAR

- side, axle shaft

2шт.

36

H136374

WASHER

THRUST WASHER - pinion

2шт.

37

H349662

PINION

GEAR PINION

2шт.

38

H136366

SHAFT

- pinion

1шт.

39

138-121

LOCK PIN,7/32" x 1 7/8", Slotted

Pin, , Shaft retaining 7/32" x 1 7/8", Slotted

1шт.

H631853

CASE

DIFFERENTIAL CASE ASSEMBLY - limited slip, optional, used in some tractors, not part of H626960 axle, order separately, Includes: Ref. 40-46

1шт.

40

H631861

CASE

- differential, limited slip

1шт.

41

H650622

DISC

SET - plates and clips

1шт.

42

H349670

PINION

GEAR - side, axle shaft

1шт.

43

H136374

WASHER

THRUST WASHER - pinion

2шт.

44

H349662

PINION

GEAR - pinion

2шт.

45

H136366

SHAFT

- pinion

1шт.

46

138-121

LOCK PIN,7/32" x 1 7/8", Slotted

Pin, , Shaft retaining 7/32" x 1 7/8", Slotted

1шт.

47

H136416

FLANGE BOLT,Serr, 1/2" - 20 x 1.125", Gr 8

BOLT - special, ring gear, 1/2" - 20 NF x 1-18"

12шт.

48

H136325

SHIM,.003" Thk

Case adjustment (0.08 mm) .003" Thk

1шт.

48

H136333

SHIM,.005" Thk

Case adjustment (0.13 mm) .005" Thk

1шт.

48

H136341

SHIM,.010" Thk

Case adjustment (0.25 mm) .010" Thk

1шт.

48

H136358

SHIM,.030" Thk

Case adjustment (0.76 mm) .030" Thk

1шт.

49

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

CONE - case bearing, 2-1/4 inch ID

2шт.

50

H747832

CUP

- case bearing

2шт.

51

NSS

NOT SOLD SEPARAT

CAP - bearing retaining

2шт.

52

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

4шт.

53

H224725

GASKET

- cover, used with ribbed cover, if used

1шт.

Part of Shim and Gasket Kit, P/N H644153

1шт.

H644146

COVER ASSY

COVER ASSEMBLY - differential carrier, Includes: Ref. 54 & 55

1шт.

54

NSS

NOT SOLD SEPARAT

COVER - differential carrier

1шт.

55

221-48

PLUG

- 3/4" NPT

1шт.

56

H227132

FLANGE BOLT

BOLT - hex head, 3/8" - 16 NC x 5/8"

10шт.

M20704

ADHESIVE

GASKET - cover, form-in-place, 2.8 fl. oz. per tube (24 tubes per case), if used

1шт.

Part of Shim and Gasket Kit, P/N H644153

1шт.

H644153

SHIM

KIT - shim and gasket, Includes: Ref. 20, 21, 24, 26, 53 & P/N M20704

1шт.

Part of Shim and Gasket Kit, P/N H644153

1шт.
