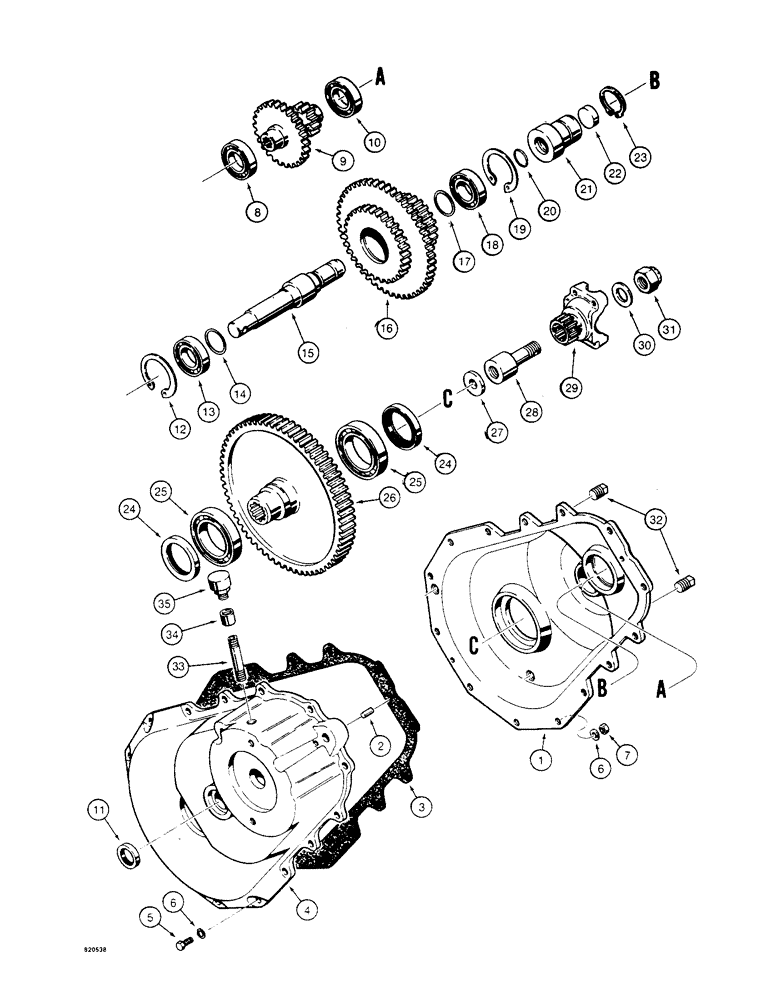

Запчасти Case W4 (104) - H627422 TWO SPEED TRANSMISSION ASSEMBLY, USED BEFORE TRACTOR SN 1166133 (06) - POWER TRAIN

H627422

TRANSMISSION ASSEMBLY - two speed, for servicing complete transmission order H647503, Includes: Ref. 1-35

1шт.

1

NSS

NOT SOLD SEPARAT

CASE - transmission, front, output side

1шт.

2

K940031

PIN

DOWEL PIN - transmission case alighment, 1/4" x 3/4", if used

2шт.

2

F37355

PIN

DOWEL PIN - transmission case alignment, 3/8" x 3/4", if used

2шт.

3

M20704

ADHESIVE

GASKET - transmission case, form-in-place, 2/8 fl. oz. per tube (24 tubes per case)

1шт.

4

NSS

NOT SOLD SEPARAT

CASE - transmission, rear, input side

1шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used Hex, 3/8"-16 x 3/4", G5, Full Thd

14шт.

5

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

If used Hex, 3/8"-16 x 1 1/2", G5

14шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , If used, with 113-209 bolt 3/8"-16, G5

14шт.

8

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

BALL BEARING - input gear, rear

1шт.

9

H336594

GEAR

- input

1шт.

10

A26581

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

- input gear, front

1шт.

11

H336842

SEAL

- shaft, shifter

1шт.

12

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , rear brg 2.44", Int, #244

1шт.

13

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

BALL BEARING - high - low gear, rear

1шт.

14

VT3997

SHIM,.010" Thk

(0.25 mm) (1.41" ID x 1.69" OD) (35.81 mm ID x 42. 93 mm OD) .010" Thk

1шт.

15

H336628

SHAFT - high-low shifter

1шт.

16

H336586

GEAR

- high-low

1шт.

17

VT3997

SHIM,.010" Thk

(0.25 mm) (1.41" ID x 1.69" OD) (35.81 mm ID x 42. 93 mm OD) .010" Thk

1шт.

18

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

BALL BEARING - high-low gear, front

1шт.

19

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , front brg 2.44", Int, #244

1шт.

20

H358705

RING, SNAP

SNAP RING - detent

1шт.

21

H336560

BEARING

- detent

1шт.

22

41-1022

PLUG,Cup, 1 3/8"

- bearing, seal

1шт.

23

A7611

SNAP RING,#175, Ext

Ring, Snap, , bearing #175, Ext

1шт.

24

H336677

OIL SEAL

SEAL - output gear

2шт.

25

H336685

BALL BEARING

- output gear

2шт.

26

H336578

GEAR - output

1шт.

27

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- special, hardened

1шт.

28

H336552

RETAINER

- transmission to rear axle pinion

1шт.

29

H336636

YOKE

- transmission to drive shaft

1шт.

30

H224501

WASHER

- special, 7/8 inch

1шт.

Refs.s 30, 31, and 35 are not furnished with the transmission assembly and must be ordered separately.

1шт.

31

H224642

NUT

- hex, self-locking, 7/8" - 14 NF

1шт.

Refs.s 30, 31, and 35 are not furnished with the transmission assembly and must be ordered separately.

1шт.

32

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - case fill and drain, 3/8" NPT

2шт.

33

221-1139

NIPPLE, LUBE

NIPPLE - pipe, 1/4" NPT x 3"

1шт.

34

221-1336

COUPLING,Pipe, 1/4" NPT

- Pipe, 1/4" NPT

1шт.

35

31543

BREATHER

- transmission case

1шт.

Refs.s 30, 31, and 35 are not furnished with the transmission assembly and must be ordered separately.

1шт.
