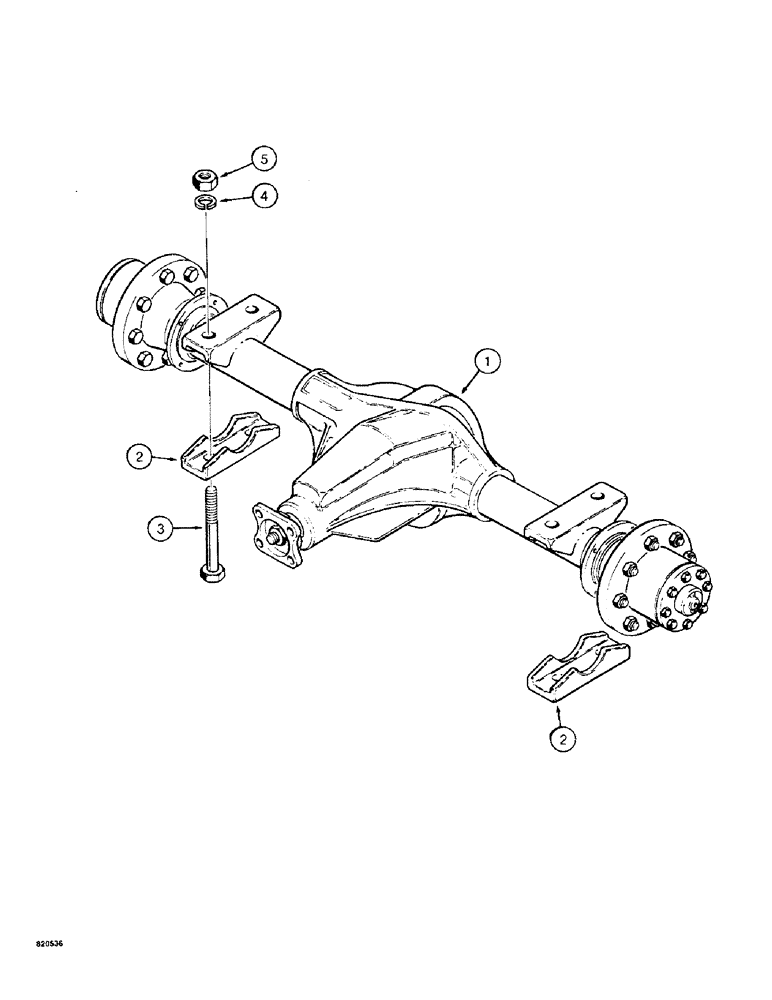

Запчасти Case W4 (100) - FRONT AXLE MOUNTING (06) - POWER TRAIN

1

H626960

AXLE

ASSEMBLY - front, parts list Figure 108

1шт.

2

H340745

PAD - axle retaining

2шт.

3

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

Loader only Hex, 3/4"-10 x 6 1/2", G5

4шт.

3

113-759

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex head, 3/4" - 10 NC x 7", forklift only

4шт.

4

192-167

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

5

129-108

NUT,3/4"-10, G5

4шт.
