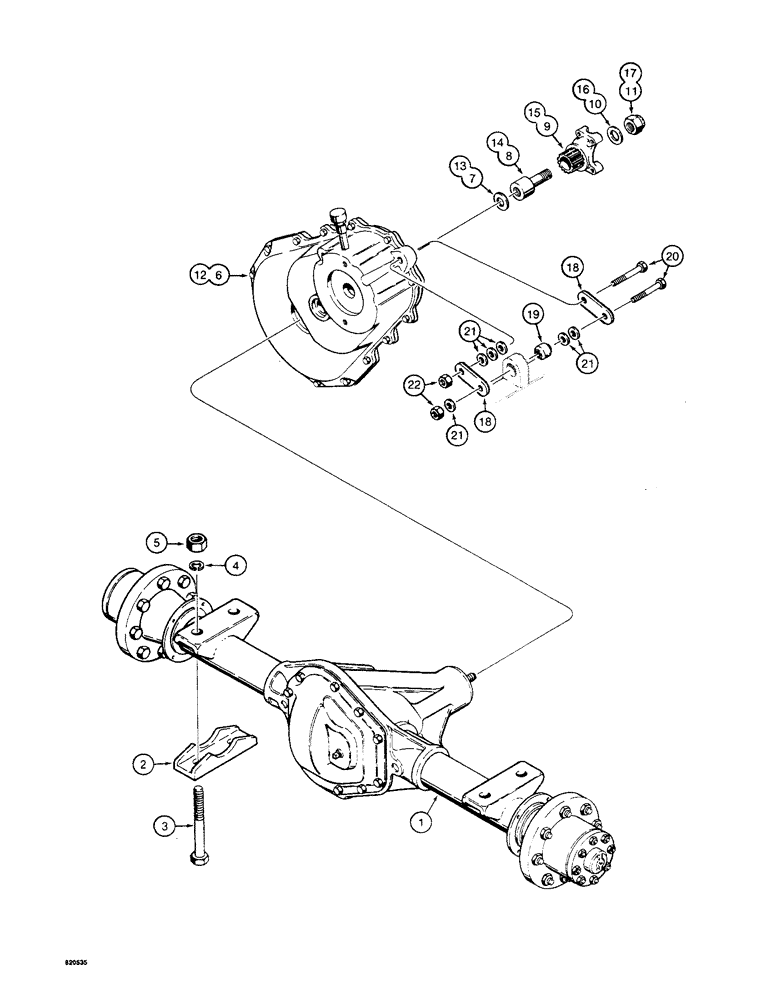

Запчасти Case W4 (098) - TRANSMISSION AND REAR AXLE MOUNTING (06) - POWER TRAIN

1

H626960

AXLE

ASSEMBLY - rear, parts list Figure 108, discard Refs.31 and 32 on Figure 108, use Ref. 9 or Ref. 15 on this Figure

1шт.

2

H340745

PAD - axle retaining

2шт.

3

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

4шт.

4

192-167

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

5

129-108

NUT,3/4"-10, G5

4шт.

6

H627422

TRANSMISSION ASSEMBLY -parts list Figure 104, for service order H647503, Includes: Ref. 7-9, Serial Range: -1166133

1шт.

7

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- spacer

1шт.

8

H336552

RETAINER

- transmission to rear axle pinion shaft

1шт.

9

H336636

YOKE

- drive shaft

1шт.

10

H224501

WASHER

- special, pinion, 7/8 inch

1шт.

11

H224642

NUT

- hex, self-locking special

1шт.

12

H647503

TRANSMISSION ASSEMBLY - parts list Figure 106, Includes: Ref. 13-15, Start Serial: 1166133

1шт.

13

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- spacer

1шт.

14

H388991

RETAINER

- transmission to rear axle pinion shaft

1шт.

15

H388074

FORK

YOKE - drive shaft

1шт.

16

H224501

WASHER

- special, 7/8 inch

1шт.

17

H224642

NUT

- hex, self-locking, special

1шт.

18

H336693

LINK - transmission anchor

2шт.

19

H336701

BUSHING

- shock

1шт.

20

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2"

2шт.

21

195-533

WASHER,1/2", SAE

- flat, 1/2"

1шт.

22

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

2шт.
