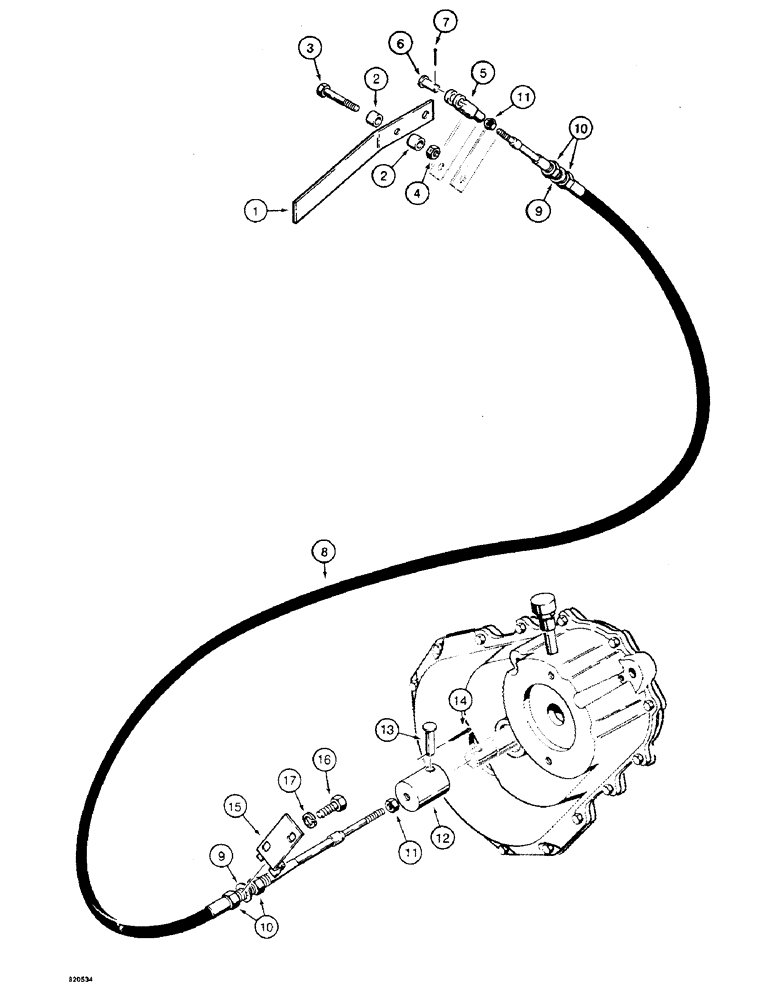

Запчасти Case W4 (096) - TRANSMISSION RANGE SELECTOR CONTROLS, 2.1 LITRE ENGINE (06) - POWER TRAIN

1

H411595

HANDLE - range selector

1шт.

2

H131086

SPACER

- handle

2шт.

3

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

4

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

5

H44198

YOKE

CLEVIS - shift lever

1шт.

6

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

CLEVIS PIN - clevis

1шт.

7

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , Pin 1/8" x 1"

1шт.

8

S104166

TESTER

CABLE - range selector, Includes: Ref. 9 & 10

1шт.

9

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, Int Tooth, 3/4"

2шт.

10

25-1511

JAM NUT - hex, 11/16" - 16 NF

4шт.

11

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

12

H411603

ADAPTER

- cable to gear box

1шт.

13

H382416

CLEVIS PIN

- adapter retaining

1шт.

14

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4", pin retaining

1шт.

15

H413633

BRACKET - cable mounting

1шт.

16

813-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex head, bracket to engine, 10 MM - 1.5 x 35 MM (8.8)

2шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
