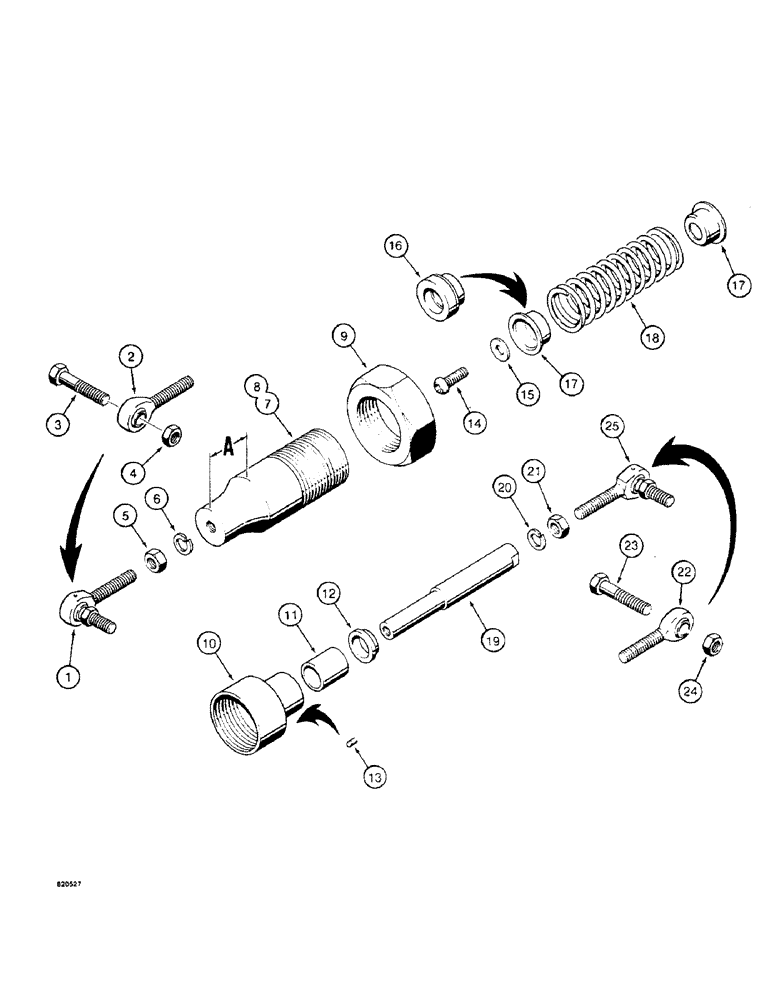

Запчасти Case W4 (092) - HYDROSTATIC PUMP CONTROLS, NEUTRAL CENTERING TUBE ASSEMBLY (06) - POWER TRAIN

H657882

KIT

TUBE ASSEMBLY - neutral centering, Includes: Ref. 1-25

1шт.

1

NSS

NOT SOLD SEPARAT

BALL JOINT - tube end, 5/16" - 24 NF, service with Ref. 2, 3 and 4

1шт.

2

H415943

BALL JOINT

- tube end, 5/16" - 24 NF, used with Ref. 3 and 4

1шт.

3

28-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 8

- hex head, 5/16" - 24 NF X 1-1/2", grade 8, used with Ref. 2 and 4

1шт.

4

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, , Used with Ref. 2 and 3 5/16"-24, GA

1шт.

5

129-174

JAM NUT,Hex, 1 1/2" - 12, Gr 5

JAM NUT - hex, 5/16" - 24 NF

1шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

7

H358788

TUBE - used before tractor SN1205315, ref. dimension "A" is 1.25" 0.755" ID x 1.5" OD x 4" L

1шт.

8

H407296

TUBE - used on tractor SN 1205315 thru 1205402 except 1205397, ref. dimension "A" is 1.0" 19.17 mm ID x 38.1 mm OD x 102 mm L

1шт.

9

129-174

JAM NUT,Hex, 1 1/2" - 12, Gr 5

JAM NUT - hex, locking, 1-1/2" - 12 NF, not used on tubes with Ref. 13 set screw, if used

1шт.

H640003

CAP ASSEMBLY - tube, Includes: Ref 10 & 11

1шт.

10

NSS

NOT SOLD SEPARAT

CAP - tube

1шт.

11

F60243

BUSHING - cap

1шт.

12

H358903

SEAL - rod

1шт.

13

178-3

SET SCREW,Hex Soc, #8-32 x 1/4"

- no. 8 - 32 NC x 1/4", not used on tubes with Ref. 9 jam nut, if used

1шт.

14

164-611

HEX SOC SCREW,Btn Hd, 1/4" - 28 x 3/4"

BOLT - hex socket head, 1/4" - 28 NF x 3/4"

1шт.

15

195-518

WASHER,1/4", SAE

- flat, 1/4"

1шт.

16

H657759

RETAINER

- spring, use with Ref. 7 tube only, if used

1шт.

17

G33075

RETAINER,12.2mm ID, 27.9mm OD

- spring

1-2шт.

18

H403295

SPRING

1шт.

19

H358812

ROD

1шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

21

129-174

JAM NUT,Hex, 1 1/2" - 12, Gr 5

JAM NUT - hex, 5/16" - 24 NF

1шт.

22

H415943

BALL JOINT

- rod end, 5/16" - 24 NF, used with Ref. 23 and 24

1шт.

23

28-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 8

- hex head, 5/16" - 24 NF X 1-1/2", grade 8, used with Ref. 22 and 24

1шт.

24

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, , Used with Ref. 22 and 23 5/16"-24, GA

1шт.

25

NSS

NOT SOLD SEPARAT

BALL JOINT - rod end, 5/16" - 24 NF, service with Ref. 22, 23 and 24

1шт.
