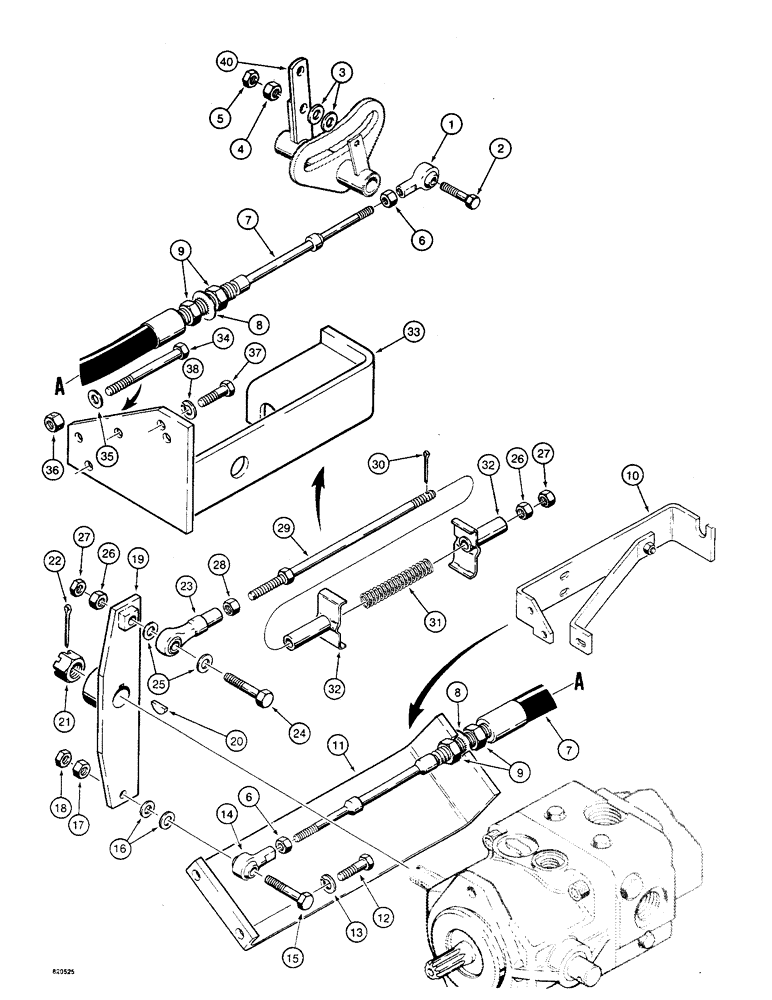

Запчасти Case W4 (088) - HYDROSTATIC PUMP CONTROLS, NEUTRAL CENTERING LINKAGE, WITH 5/16 INCH CABLE AND BELLCRANK (06) - POWER TRAIN

1

A76685

BALL JOINT

- pivot cable, 5/16" - 24 NF

1шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

2

113-175

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

- hex head, 5/16" - 24 NF x 1-1/2, grade 8

1шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

3

195-103

WASHER,5/16"

- flat, 5/16"

2шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

4

131-1215

LOCK NUT,5/16"-18, GC

NUT - hex, self-locking, 5/16" - 24 NF, grade C

1шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

5

425-145

JAM NUT,Jam, 5/16"-18, G5

JAM NUT - hex, 5/16"-24 NF

1шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

6

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

7

H383430

CABLE

- control, pivot to bellcrank, 5/16" - 24 NF ends, Includes: Ref. 8 & 9

1шт.

8

193-101

LOCK WASHER,Int Tooth, 11/16"

WASHER - internal tooth lock, 11/16"

2шт.

9

25-1511

JAM NUT - hex, 11/16" - 16 NF

4шт.

10

REF

INSTRUCTION

BRACKET - cable support, used on some tractors before SN 1205402 except 1205397, see Figure 84 for complete bracket and mounting hardware items 7 thru 16

1шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

11

H408864

BRACKET

- cable support, used on tractor SN 1205397, 1205402 and after

1шт.

12

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 35 mm (8.8)

3шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

14

A76685

BALL JOINT

- cable to bellcrank, 5/16" - 24 NF

1шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

15

113-175

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

- hex head, 5/16" - 18 NC x 1-1/2", grade 8

1шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

16

195-103

WASHER,5/16"

- flat, 5/16"

2шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

17

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

18

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

19

H668228

LEVER

BELL CRANK - neutral centering

1шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

20

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Bellcrank to pump shaft #18, 1/4" x 1 1/8"

1шт.

21

86632554

SLOTTED NUT,3/4"-16, G5

CASTLE NUT - hex, 3/4" - 16 NF

1шт.

22

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), , Nut 3/16" x 1 1/2"

1шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

23

S108030

JOINT

BALL JOINT -, Serial Range: bellcrank-rod

1шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

24

28-632

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- hex head, 3/8" - 24 NF x 2", grade 8

1шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

25

195-525

WASHER,3/8", SAE

- flat, 3/8"

3шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

26

131-1133

NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8" - 24 NF

2шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

27

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - hex, 3/8" - 24 NF

2шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

28

129-123

NUT,3/8"-24, G5

1шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

29

H668186

STEM

ROD - centering spring

1шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

30

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , Nut 1/8" x 1"

1шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

31

D70304

COMPRESSION SPRING,0.955" OD x 4.00" L

- neutral centering

1шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

32

H668194

CHANNEL

- spring seat

2шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

33

H668491

BRACKET

- neutral centering, spring retaining

1шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

34

113-167

BOLT,Hex, 5/16" - 18 x 4", Gr 5

Used before tractor SN 1205402 except 1205397, if used Hex, 5/16"-18 x 4", G5

2шт.

35

195-521

WASHER,5/16", SAE

- flat, 5/16", use with Ref. 34 only

2шт.

36

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 - 18 NC, use with Ref. 34 only

2шт.

37

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 35 mm (8.8), Used on tractor SN 1205397, 1205402 and after, if used

3шт.

38

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, use with Ref. 37 only

3шт.

39

L183331

TIE STRAP - cable, not shown

1шт.

40

H429019

TAB - forward and reverse pivot, see Figure 90

1шт.

Part of Neutral Centering Kit, P/N H669077

1шт.

H669077

KIT

- neutral centering also see Figures 72 and 90 for additional parts, Includes: Ref. 1- 5, 10, 12, 14-19, 22-33, 40

1шт.
