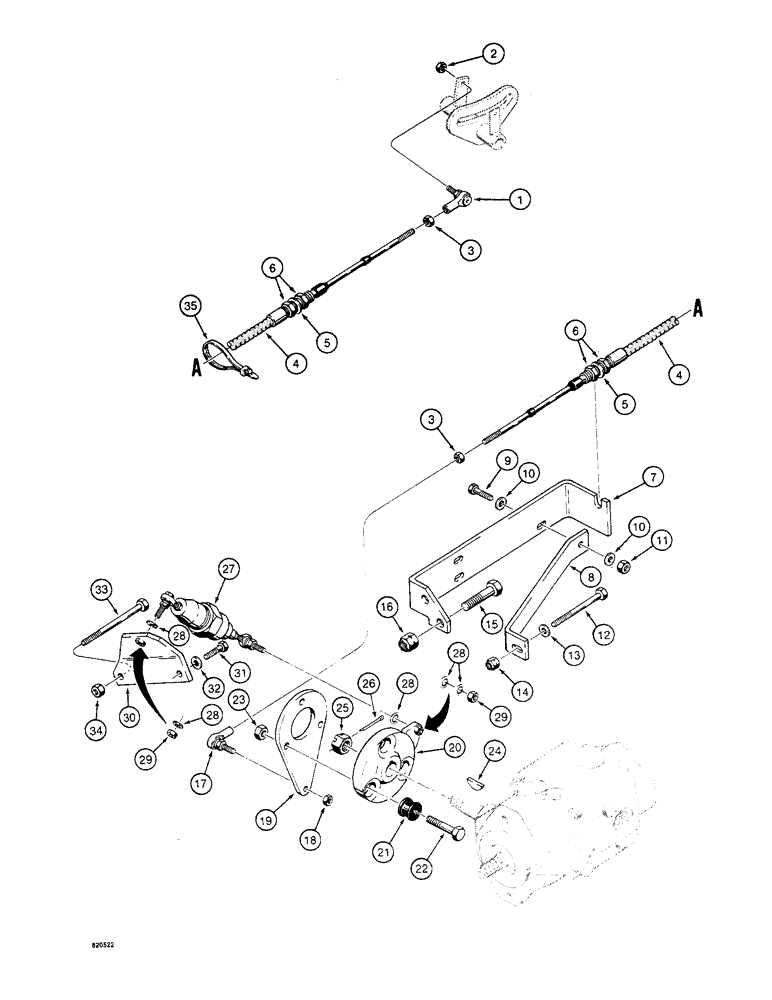

Запчасти Case W4 (084) - HYDROSTATIC PUMP CONTROLS, NEUTRAL CENTERING LINKAGE, WITH 5/16 INCH CABLE & NEUTRAL CENTERING TUBE (06) - POWER TRAIN

1

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - pivot to cable, 5/16" - 24 NF

1шт.

2

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

3

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

4

H383430

CABLE

- control, pivot to pump, 5/16" - 24 NF ends, Includes: Ref. 5 & 6

1шт.

See Figure 90 for correct forward and reverse pedal assembly pivot.

1шт.

5

193-101

LOCK WASHER,Int Tooth, 11/16"

WASHER - internal tooth lock, 11/16"

2шт.

6

25-1511

JAM NUT - hex, 11/16" - 16 NF

4шт.

7

H391458

BRACKET

- cable support

1шт.

8

H358853

SUPPORT - bracket

1шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

10

195-525

WASHER,3/8", SAE

- flat, 3/8"

2шт.

11

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

12

113-167

BOLT,Hex, 5/16" - 18 x 4", Gr 5

Flywheel cover Hex, 5/16"-18 x 4", G5

1шт.

13

195-521

WASHER,5/16", SAE

- flat, 5/16"

1шт.

14

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

15

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5, Engine mounting

2шт.

16

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

17

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - cable to pump, 5/16" - 24 NF

1шт.

18

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

19

H392282

PLATE - cable to hub, 5/16" ball joint mounting hole, Plate can be modified to fit a 5/16" control cable by reaming the ball joint mounting hole from .265" - .325" diameter.

1шт.

See Figure 90 for correct forward and reverse pedal assembly pivot.

1шт.

20

H651562

HUB

-, Serial Range: plate-pump

1шт.

21

H373878

BUSHING

INSULATOR - plate mounting

3шт.

22

113-350

BOLT,Hex, 7/16" - 14 x 2", Gr 5

- hex head, 7/16" - 14 NC x 2"

3шт.

23

131-1129

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16" - 14 NC

3шт.

24

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Hub to pump shaft #18, 1/4" x 1 1/8"

1шт.

25

86632554

SLOTTED NUT,3/4"-16, G5

CASTLE NUT - hex, 3/4" - 16 NF

1шт.

26

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), , Nut 3/16" x 1 1/2"

1шт.

27

REF

INSTRUCTION

NEUTRAL CENTERING TUBE ASSEMBLY - see Figure 92 for correct tube and parts list

1шт.

28

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2-4шт.

29

131-3

LOCK NUT,5/16"-24, GB

NUT - hex, self-locking, 5/16" - 24 NF, if used

2шт.

29

131-3

LOCK NUT,5/16"-24, GB

NUT - hex, self-locking, 5/16" - 24 NF, if used

2шт.

30

H392241

BRACKET - tube mounting, used before tractor SN 1205315, uses Refs.s 28 and 29 shown, same as H655928 without a weld nut

1шт.

30

H655928

BRACKET - tube mounting, used on tractor SN 1205315 thru 1205401 except with a weld nut

1шт.

31

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

32

195-104

WASHER,3/8"

- flat, 3/8"

1шт.

33

113-253

BOLT,Hex, 3/8" - 16 x 5", Gr 5

1шт.

34

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self locking, 3/8" - 16 NC

1шт.

35

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - cable

1шт.
