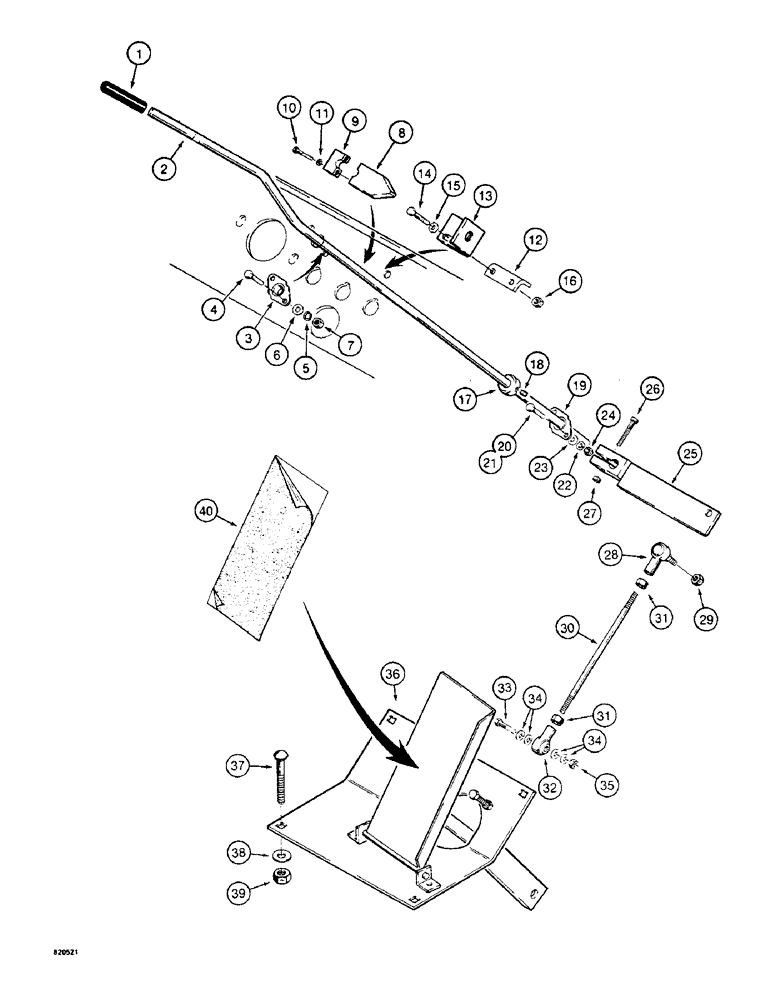

Запчасти Case W4 (080) - HYDROSTATIC PUMP CONTROLS, FORWARD AND REVERSE CONTROL LEVER AND FOOT PEDAL (06) - POWER TRAIN

1

H358390

GRIP - lever

1шт.

2

H358341

LEVER - forward and reverse control

1шт.

3

R29593

FLANGED BEARING,1.125" OD x 0.562"

BEARING - lever, upper

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Use with item 7 only, if used Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

4

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Use with item 5, 6 and 7, if used Hex, 1/4"-20 x 1", G5

2шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , If used 1/4"

2шт.

6

195-102

WASHER,1/4"

- flat, , if used 1/4"

2шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

H652511

IGNITION SWITCH

BRACKET ASSEMBLY - neutral start, Includes: Ref. 8-11

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - switch

1шт.

9

NSS

NOT SOLD SEPARAT

BAR - clamp

1шт.

10

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

12

H391193

SUPPORT - bracket, welds to frame, if used

1шт.

13

H649376

BRACKET - switch mounting

1шт.

14

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

15

195-521

WASHER,5/16", SAE

- flat, 5/16"

2шт.

16

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

H358382

COLLAR ASSY.

COLLAR ASSEMBLY - control lever, Includes: Ref. 17 & 18

1шт.

17

NSS

NOT SOLD SEPARAT

COLLAR

1шт.

18

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- hex socket head, cup,1/4 - 20 NC x 1/4

1шт.

19

R29593

FLANGED BEARING,1.125" OD x 0.562"

BEARING - lever, lower

1шт.

20

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Use with Ref. 24 only, if used Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

21

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Use with Ref. 22, 23, and 24, if used Hex, 1/4"-20 x 1", G5

2шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Used with Ref. 21, if used 1/4"

2шт.

23

195-102

WASHER,1/4"

- flat, , used with Ref. 21, if used , Includes: Ref. 25 1/4"

2шт.

25

H626978

LEVER

- shift rod

1шт.

26

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

27

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

28

H358374

PIVOT,1/4" - 28 x 1-1/3"

BALL JOINT - rod, 1/4"

1шт.

29

131-498

LOCK NUT,1/4"-28, GB

NUT - hex, self-locking, 1/4" - 28 NF

1шт.

30

H357491

ROD

-, Serial Range: lever-pedal

1шт.

31

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

32

A146456

BALL

JOINT - rod, 1/4"

1шт.

33

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

1шт.

34

195-102

WASHER,1/4"

- flat, 1/4"

4шт.

35

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

36

REF

INSTRUCTION

FOOT PEDAL ASSEMBLY - parts list Figure 090

1шт.

37

111-421

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/2", G2

- 7/16" - 14 NC x 1-1/4"

4шт.

38

195-105

WASHER,7/16"

- flat, 7/17"

4шт.

39

131-1129

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16" - 14 NC

4шт.

40

H389429

STRIP - anti-skid, foot pedal

1шт.
