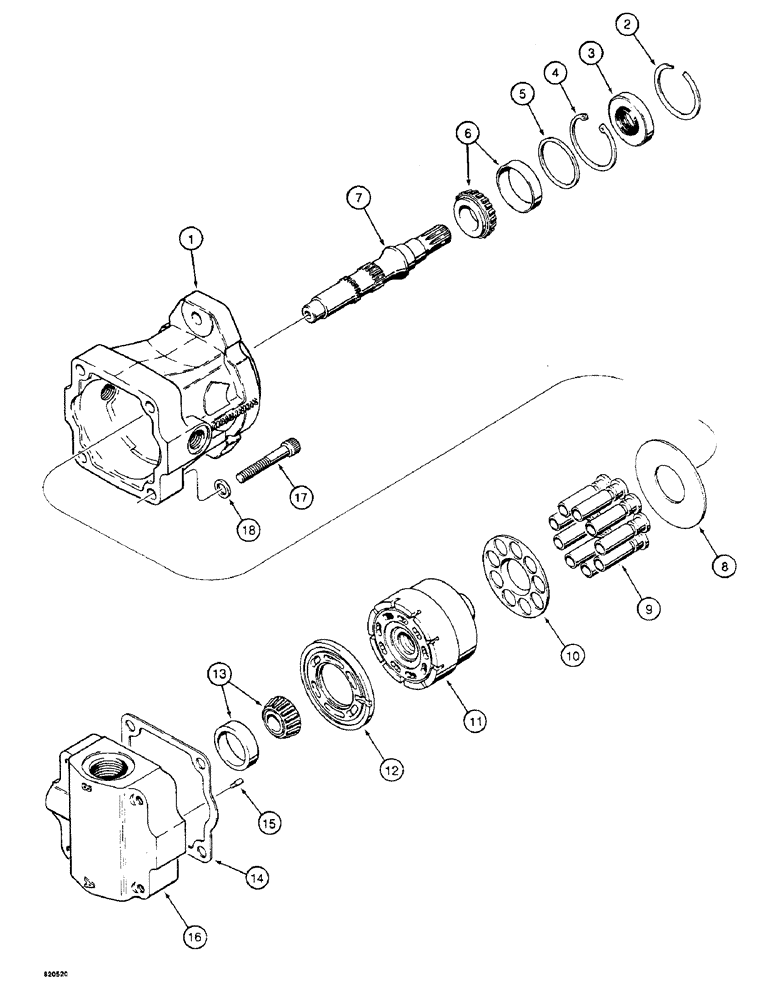

Запчасти Case W4 (078) - H626911 HYDRAULIC MOTOR (06) - POWER TRAIN

H626911

MOTOR

ASSEMBLY - hydraulic, new, if used, Includes: Ref. 1-18

1шт.

H654335

REMAN-HYD MOTOR

MOTOR ASSEMBLY - hydraulic, rebuilt, if used, Includes: Ref. 1-18

1шт.

1

N7973

HOUSING

- motor

1шт.

2

H757898

RING

SNAP RING - seal retaining

1шт.

3

H756296

SEAL

- shaft

1шт.

4

B13252

RING, SNAP

SNAP RING - bearing retaining

1шт.

5

H354050

WASHER

- bearing

1шт.

6

H632505

CUP

BEARING KIT - shaft, outer

1шт.

7

N7972

SHAFT

- motor output

1шт.

8

H351379

PLATE, THRUST

PLATE - thrust

1шт.

H632489

BLOCK

CYLINDER BLOCK ASSEMBLY - motor, Includes: Ref. 9-11

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON - motor

9шт.

10

NSS

NOT SOLD SEPARAT

RETAINER -piston

1шт.

11

NSS

NOT SOLD SEPARAT

BLOCK - piston

1шт.

12

H351387

LARGE PLATE

PLATE - valve

1шт.

13

H636497

BEARING

KIT - shaft, inner

1шт.

14

H354076

GASKET

- housing

1шт.

15

H351445

PIN

- valve plate alignment

1шт.

16

H354084

CAP

END CAP - motor

1шт.

17

61-740

HEX SOC SCREW,7/16"-14 x 2 1/2"

SCREW - hex socket head, 7/16" - 16 NC x 2-1/2"

4шт.

18

95-7

WASHER,7/16"

- flat, 7/16"

4шт.
