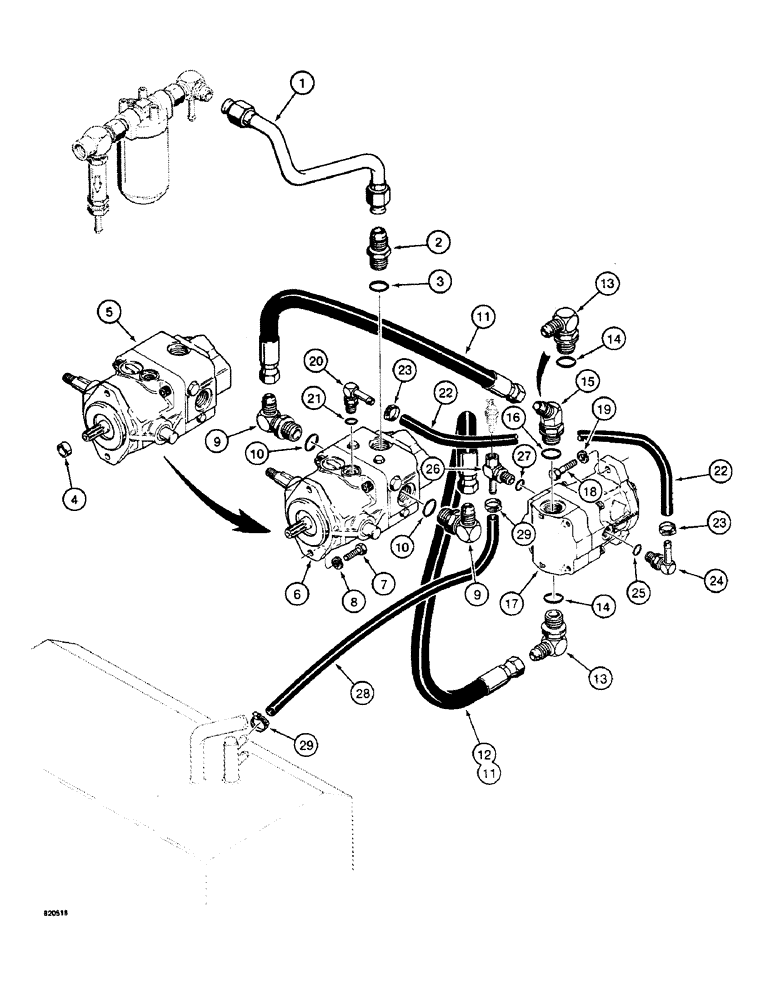

Запчасти Case W4 (072) - HYDROSTATIC DRIVE CIRCUIT (06) - POWER TRAIN

1

H627240

TUBE,1" OD

- suction, if used, Serial Range: -1166142

1шт.

1

H649293

TUBE - suction, used on tractor SN 1166142 thru SN 1205402, except SN 1205397, if used 1" OD x 9.38, 5.33" L

1шт.

1

H660365

TUBE - suction, used on tractor SN 1205397, 1205402 and after, if used 25.4 mm OD

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - straight, male, Incl. Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

4

H401901

SPACER

- pump, used on 1.8 litre engine tractors only

1шт.

5

H626903

PUMP

- variable displacement, may order rebuilt pump H654327 for service, does not have circuit relief valves, parts list Figure 74, if used

1шт.

6

H660399

PUMP

- variable displacement, may order rebuilt pump H667956 for service, includes, circuit relief valves, may be used to replace item 5 pump, parts list Figure 74, if used

1шт.

7

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, male, adjustable, Includes: Ref. 10

2шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

11

H336974

HOSE,0.75" ID x 30.00", SAE 100R9

Motor Supply, use (2) with 1.8 Litre Engine or (1) with 2.1 Litre Engine 0.75" ID x 30.00", SAE 100R9

1-2шт.

12

H218297

HOSE

- motor supply, 37" (939 MM) long, use with 2.1 litre engine only

1шт.

13

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, male, adjustable, Includes: Ref. 14

1-2шт.

This elbow is part of H669077 neutral centering kit. See Figure 88 for complete kit.

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

15

218-5144

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, male, adjustable, if used, Includes: Ref. 16

1шт.

16

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

17

H626911

MOTOR

- propulsion, may order rebuilt motor H654335 for service, parts list Figure 78

1шт.

17a

H44727

GASKET

used to mount propulsion motor, not shown

1шт.

18

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

20

217-348

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/4" - 16 Male ORB

ELBOW - 90 degree, pump to hose, Includes: Ref. 21

1шт.

22

L55952

HOSE,0.50" ID x 16.00", SAE 100R3

Drain, Pump to Motor 0.50" ID x 16.00", SAE 100R3

1шт.

23

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP - hose, worm drive, SAE No. 8

2шт.

24

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

ELBOW - 90 degree, hose to motor, Includes: Ref. 25

1шт.

26

H336966

FITTING - tee, special, motor to hose, for oil temperature sender see Figures 48 and 50, Includes: Ref. 27

1шт.

28

H336388

HOSE

- motor to tank, return, 21-1/2" (546 MM) long

1шт.

29

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP - hose, worm drive, SAE No. 8

2шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, fitting

1шт.
