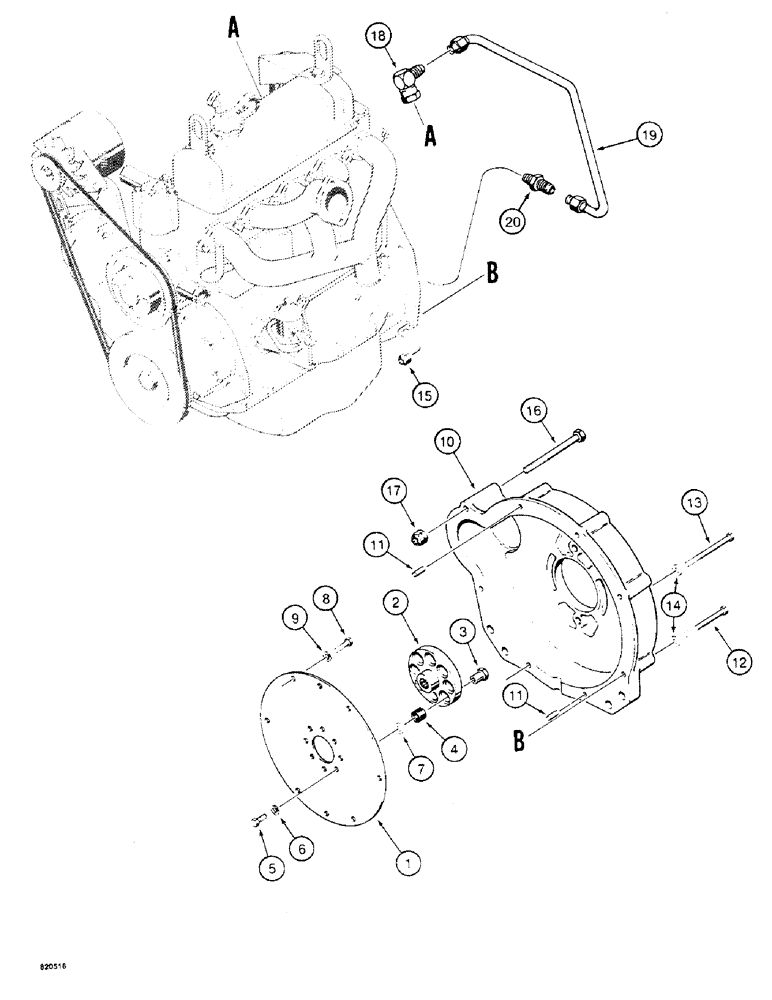

Запчасти Case W4 (068) - FLYWHEEL COVER AND PUMP MOUNTING PLATE, FOR 1.8 LITRE ENGINE, USED BEFORE TRACTOR SN 1205402 (06) - POWER TRAIN

1

H334631

PLATE

- flex

1шт.

H630053

HUB CAP

HUB ASSEMBLY - flex drive, Includes Ref. 2-7

1шт.

2

NSS

NOT SOLD SEPARAT

HUB - drive

1шт.

3

N7967

BUSHING

NUT - special, steel

8шт.

4

N7968

BLOCK

BUSHING - neoprene

8шт.

5

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

8шт.

6

92-5

LOCK WASHER,5/16"

8шт.

7

195-103

WASHER,5/16"

- flat, 5/16"

8шт.

8

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

- hex head, 5/16" - 24 NF x 1", flex plate to flywheel

6шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

10

H335653

HOUSING

- flywheel

1шт.

11

H358754

PIN

DOWEL PIN - housing to engine, locator

2шт.

12

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

Flywheel housing Hex, 5/16"-18 x 3 1/2", G5

4шт.

13

113-167

BOLT,Hex, 5/16" - 18 x 4", Gr 5

Flywheel housing and neutral centering bracket Hex, 5/16"-18 x 4", G5

1шт.

14

195-521

WASHER,5/16", SAE

- flat, 5/16"

5шт.

15

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

5шт.

16

113-253

BOLT,Hex, 3/8" - 16 x 5", Gr 5

Starter mounting Hex, 3/8"-16 x 5", G5

1шт.

17

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

18

H357269

ELBOW - 90 degree, engine oil recirculation

1шт.

19

H626937

TUBE,0.5" OD

- engine oil recirculation

1шт.

20

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

CONNECTOR - straight, engine oil recirculation

1шт.
