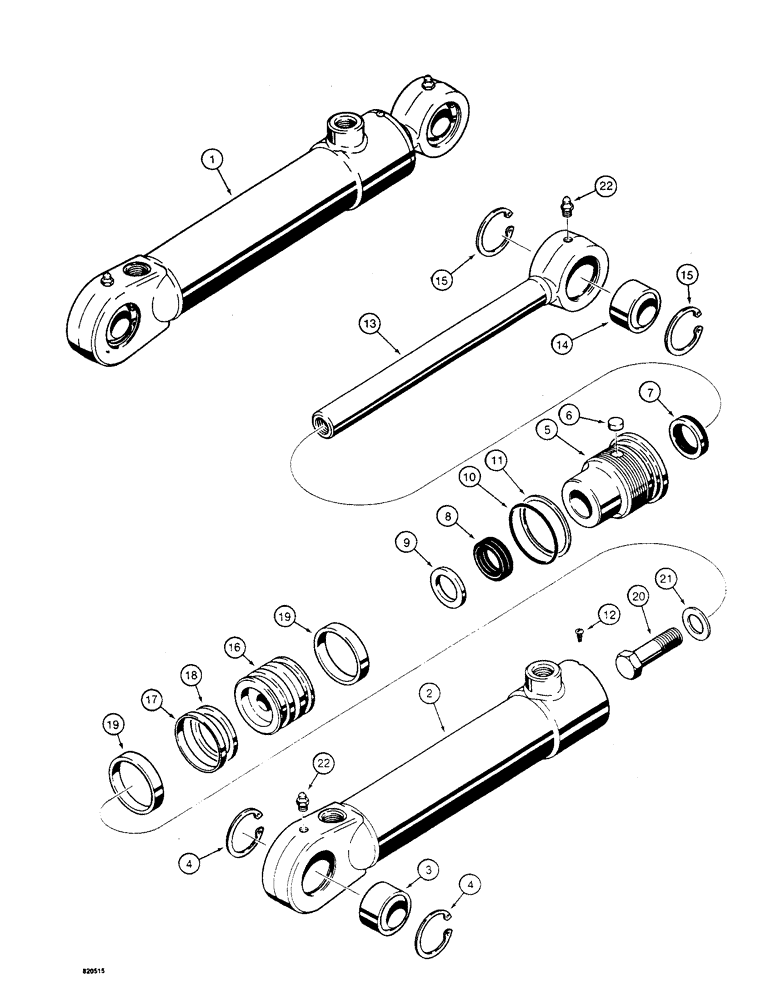

Запчасти Case W4 (066) - G102307 STEERING CYLINDER (05) - STEERING

1

G102307

JACK BODY

CYLINDER ASSEMBLY - steering, 2-1/2" (63.5 MM) ID x 8.00" (203 MM) stroke, Includes: Ref. 2-22

1шт.

2

G102308

CYLINDER

TUBE ASSEMBLY - cylinder, Includes: Ref. 3 & 4

1шт.

3

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - tube

1шт.

4

D28436

SNAP RING,2", Int, #200

Ring, Snap, 2", Int, #200

2шт.

G104915

GLAND

ASSEMBLY - cylinder, replaces glands without nylon plug, Includes: Ref. 5-11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

7

D95141

WIPER SEAL

WIPER - piston rod, outer

1шт.

Part of Seal Kit, P/N G105551

1шт.

8

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod, wide

1шт.

Part of Seal Kit, P/N G105551

1шт.

9

G104961

SEAL

- piston rod, narrow, use in addition to item 9 in some glands

1шт.

Part of Seal Kit, P/N G105551

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit, P/N G105551

1шт.

11

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

BACKUP RING - o-ring

1шт.

Part of Seal Kit, P/N G105551

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

13

G102311

ROD ASSEMBLY - piston, 1-1/4" (32 MM) diameter, Includes: Ref. 14 & 15

1шт.

14

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - rod

1шт.

15

D28436

SNAP RING,2", Int, #200

Ring, Snap, 2", Int, #200

2шт.

G100707

PISTON ASSY.

PISTON ASSEMBLY, Includes: Ref. 16-19

1шт.

16

G100708

PISTON

- cylinder

1шт.

17

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit, P/N G105551

1шт.

18

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

BACKUP RING - seal

1шт.

Part of Seal Kit, P/N G105551

1шт.

19

G100714

RING

- wear, piston

2шт.

Part of Seal Kit, P/N G105551

1шт.

20

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex head, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

21

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G105551

SEAL

KIT - seal, Includes: Ref. 7, 8, 9, 10, 11, 17, 18, 19

1шт.

G100775

SEAL

- piston, service option - severe heat or cold, Includes: ref. no. 8

1шт.
