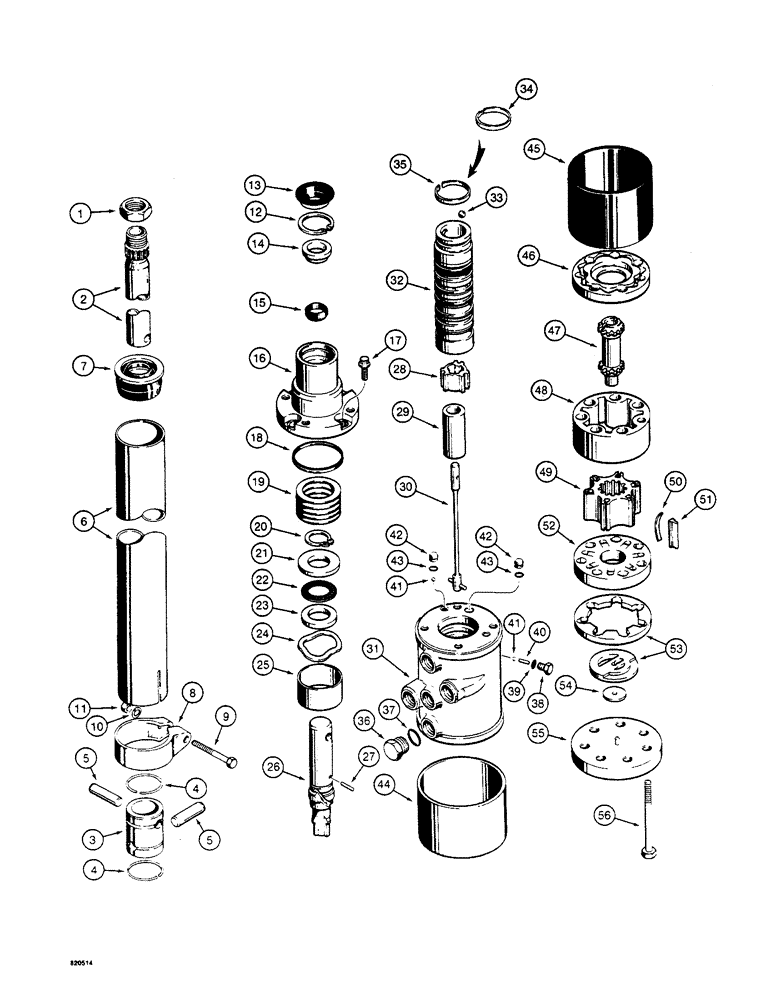

Запчасти Case W4 (062) - STEERING COLUMN AND CONTROL VALVE (05) - STEERING

H627430

STEERING ASSY

STEERING COLUMN AND CONTROL VALVE - complete, Includes: Refs. 1-56

1шт.

1

A14567

JAM NUT

- steering wheel retaining

1шт.

2

L35652

SHAFT

- steering column

1шт.

D72851

KIT

- coupling, Includes: Ref. 3 & 4

1шт.

3

NSS

NOT SOLD SEPARAT

COUPLING - steering shaft to control valve

1шт.

4

A43560

SPRING

- pin retaining

2шт.

5

L35654

PIN

- coupling

2шт.

H643890

TUBE

AND BUSHING ASSEMBLY - steering column, Includes: Ref. 6 & 7

1шт.

6

NSS

NOT SOLD SEPARAT

TUBE - steering column

1шт.

7

L35675

SEAL

BUSHING - steering column

1шт.

L35657

CLAMP

ASSEMBLY - tube to control valve, Includes: Ref. 8-11

1шт.

8

NSS

NOT SOLD SEPARAT

CLAMP - tube

1шт.

9

114-122

BOLT,Hex, 5/16" - 24 x 2", Gr 5

1шт.

10

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

1шт.

11

129-122

NUT,5/16"-24, G5

1шт.

H644195

GEAR

CONTROL VALVE ASSEMBLY - steering, Includes: Ref. 12-56

1шт.

12

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal spacer

1шт.

A47038

SEAL KIT,Pump Shaft

SEAL KIT - shaft, Includes: Ref. 13 - 15

1шт.

13

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

- shaft, outer

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER - seal

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - shaft, inner

1шт.

16

D65139

COVER

- upper

1шт.

17

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

SCREW - ferry head, 5/16" - 18 NC x 3/4"

4шт.

18

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

- cover

1шт.

19

A44435

SHIM

KIT - cover

1шт.

20

A43720

RING

SNAP RING - shaft retaining

1шт.

21

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

THRUST WASHER - control valve, upper

1шт.

22

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

THRUST BEARING - control valve

1шт.

23

F19634

BEARING WASHER

THRUST WASHER - control valve, lower

1шт.

24

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

WASHER - wave

1шт.

25

N3514

SPACER - bearing

1шт.

26

A43551

SHAFT

INPUT SHAFT - steering control value

1шт.

27

D53297

PIN

- retaining, torsion bar to input shaft

1шт.

28

A43554

RING

- RING - drive

1шт.

29

H36069

SPACER - drive link

1шт.

30

L36069

BRACKET

TORSION BAR - input shaft to drive link

1шт.

H643866

HOUSING AND SPOOL ASSEMBLY - control valve, Includes: Ref. 31

1шт.

31

NSS

NOT SOLD SEPARAT

HOUSING - control valve, contains two internal springs, rollers, and balls that are not served separately

1шт.

32

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

33

211-9

BALL,5/16" Dia

- steel, 5/16" (7.9 MM) diameter

1шт.

34

N6548

LINK

RETAINER - ball, if used

1шт.

35

A43560

SPRING

RETAINER - ball, if used

1шт.

36

76349

PLUG,9/16" - 18 ORB

Bottom port, Incl. Ref. 37 Hex Hd, 9/16"-18 ORB

1шт.

37

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, plug

1шт.

F82943

VALVE

PLUG AND PIN ASSEMBLY - check assembly, Includes: Ref. 38-56

1шт.

38

F82944

PLUG

- check assembly, Includes: Ref. 39

1шт.

39

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, plug

1шт.

40

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, , Plug, check assembly 1/8" x 15/16", Slotted

1шт.

41

211-7

BALL,1/4" Dia

- steel, check (6.4 mm) 1/4" Dia

2шт.

L36015

PLUG

ASSEMBLY - control valve, Includes: Ref. 42 & 43

2шт.

42

NSS

NOT SOLD SEPARAT

PLUG - control valve

1шт.

43

A43729

O-RING

- plug

1шт.

44

D71233

RETAINER

- rotor seal

1шт.

45

D74439

SEAL ASSY.

SEAL - rotor

1шт.

46

A43569

BUSHING

SPACER

1шт.

47

A43568

LINK

- drive

1шт.

D66466

ROTOR

GEROTOR SET, Includes: Ref. 48-51

1шт.

48

NSS

NOT SOLD SEPARAT

STATOR - gerotor

1шт.

49

NSS

NOT SOLD SEPARAT

ROTOR - gerotor

1шт.

50

NSS

NOT SOLD SEPARAT

SPRING - vane, rotor

6шт.

51

NSS

NOT SOLD SEPARAT

VANE - rotor

6шт.

52

A43573

MANIFOLD

- control valve

1шт.

53

A43574

COMMUTATOR

ASSEMBLY

1шт.

54

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

WASHER - wear, rotor

1шт.

55

A45182

COVER

ASSEMBLY - lower

1шт.

56

NLS

NO LONGER SERVICED

- hex head, 5/16" - 18 NC x 3", special

7шт.
