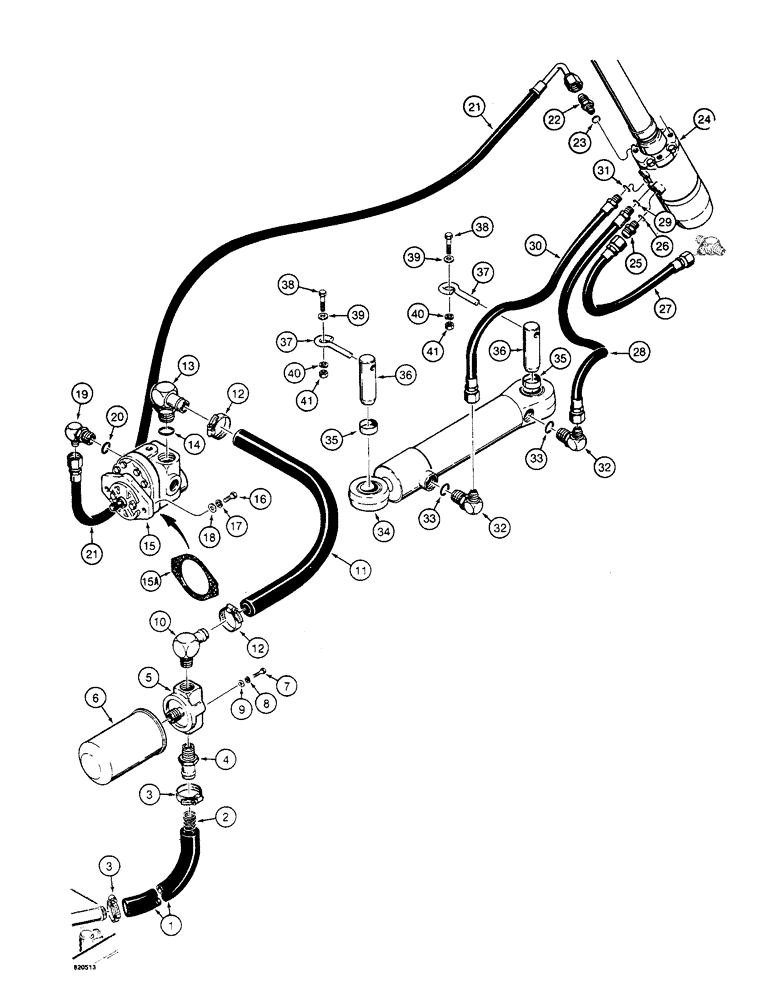

Запчасти Case W4 (060) - STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

H309096

HOSE

- suction, reservoir to filter, 17" (432 MM) long

1шт.

2

H216994

VALVE SPRING

SPRING - suction hose, internal

1шт.

3

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, worm drive, SAE no. 20

2шт.

4

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

CONNECTOR - straight, 1" ID hose x 3/4" NPT

1шт.

5

H616508

FILTER HEAD

BASE - filter

1шт.

6

H371872

ELEMENT

- filter

1шт.

7

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

9

195-102

WASHER,1/4"

- flat, , if used 1/4"

2шт.

10

217-331

FITTING,90 Degree Elbow, 1" Hose Barb x 3/4" Male NPTF

CONNECTOR - 90 degree, 1" ID hose x 3/4" NPT

1шт.

11

H371880

HOSE,1.00" ID x 22.00", SAE 30R2 Type 2

Suction, Filter to Pump Inlet 1.00" ID x 22.00", SAE 30R2 Type 2

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, worm drive, SAE no. 20

2шт.

13

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

CONNECTOR - 90 degree, adjustable, 1" ID hose x 1" OD tube, Includes: Ref. 14

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

15

H626895

PUMP

- steering and equipment supply, parts list Figure 138

1шт.

15a

H32375

GASKET

-, Serial Range: pump-pump

1шт.

16

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

195-525

WASHER,3/8", SAE

- flat, 3/8", if used

2шт.

19

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

21

H335505

HOSE

- supply, pump to steering valve, 52" (1321 MM) long

1шт.

22

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - straight, hose to control valve, Includes: Ref. 23

1шт.

23

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

24

H627430

STEERING ASSY

CONTROL VALVE - steering, parts list Figures 62 and 64

1шт.

25

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - straight, control valve to hose, return, Includes: Ref.26

1шт.

26

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

27

H371823

HOSE - return, steering valve to tee, 18" (457 MM) long

1шт.

28

H336313

HOSE,0.38" ID x 24.00", SAE 100R2

Steering, Valve to Cylinder Head End, Includes: Ref. 29 0.38" ID x 24.00", SAE 100R2

1шт.

29

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hose

1шт.

30

H336305

HOSE,0.38" ID x 20.00", SAE 100R2

Steerng, Valve to Cylinder Rod End, Includes: Ref. 31 0.38" ID x 20.00", SAE 100R2

1шт.

31

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hose

1шт.

32

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, steering cylinder, Includes: Ref. 33

2шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

34

G102307

JACK BODY

CYLINDER - steering, parts list Figure 66

1шт.

35

H336958

SPACER

- cylinder ends

2шт.

36

H335919

PIN

- steering cylinder

2шт.

37

H313981

PIN

- locking

2шт.

38

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

39

195-525

WASHER,3/8", SAE

- flat, 3/8"

2шт.

40

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

2шт.

41

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

2шт.
