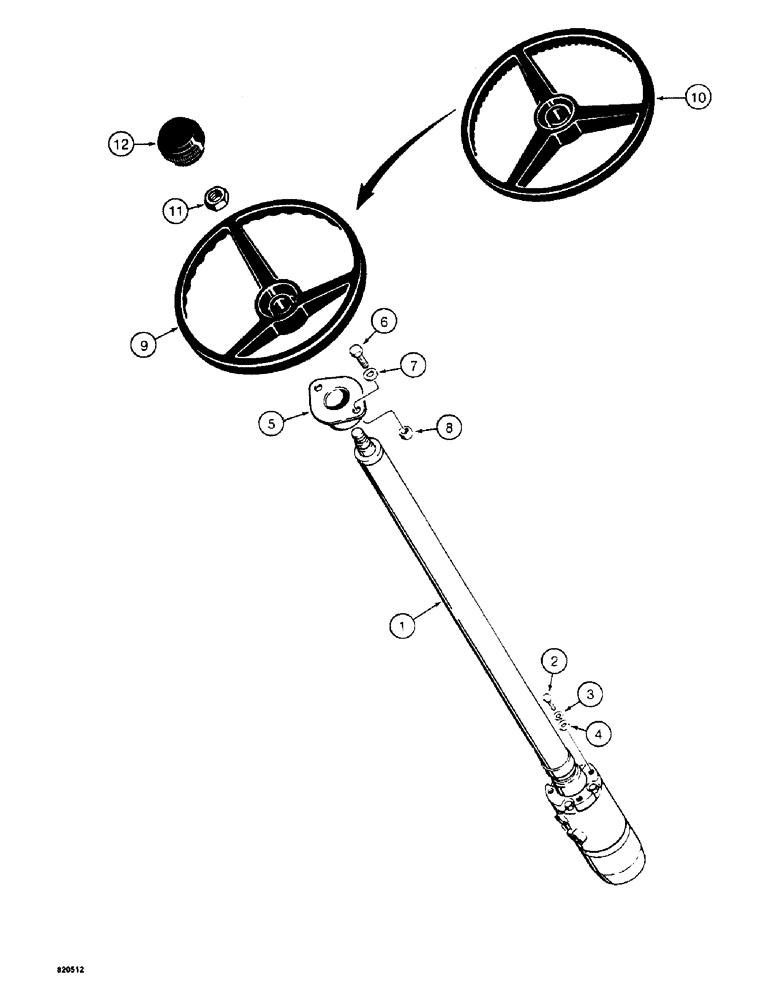

Запчасти Case W4 (058) - STEERING WHEEL AND STEERING COLUMN (05) - STEERING

1

H627430

STEERING ASSY

CONTROL VALVE - steering, includes steering column, parts list Figures 62 and 64

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex head, 5/16" - 18 NC x 1"

3шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

4

195-521

WASHER,5/16", SAE

- flat, 5/16"

3шт.

5

H358176

BEARING - steering column

1шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

195-525

WASHER,3/8", SAE

- flat, 3/8"

2шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

9

H393280

WHEEL (STEERING)

STEERING WHEEL - concave, if used

1шт.

10

H256693

STEERING WHEEL

- flat, if used

1шт.

11

A14567

JAM NUT

- hex, 13/16" - 20 NF

1шт.

12

H256701

CAP

- steering wheel

1шт.
