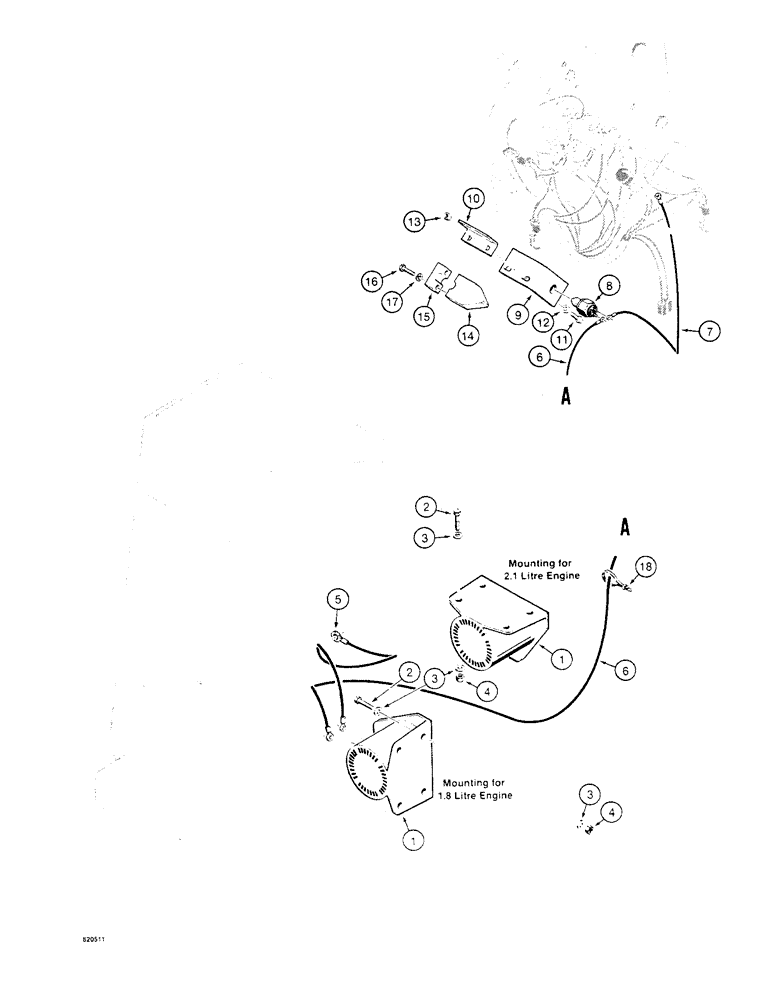

Запчасти Case W4 (056) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

D75814

BUZZER

ALARM - backup

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

3

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

4

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

5

H393298

WIRE - ground, to engine mounting bolt, 12" (305 MM) long

1шт.

6

H393330

WIRE - alarm to switch, 143.7" (3650 MM) long

1шт.

7

H393314

WIRE - switch to glow plug switch, 5/9 (150 MM) long

1шт.

8

L77962

SWITCH

- backup alarm

1шт.

9

H650507

BRACKET - switch mounting

1шт.

10

H391193

SUPPORT - bracket, welds to frame, if used

1шт.

11

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Use with Ref. 10, if used

2шт.

11

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

Existing bolt for neutral start bracket Hex, 5/16"-18 x 1 1/4", G5

2шт.

12

195-521

WASHER,5/16", SAE

- flat, 5/16"

2шт.

13

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

H652511

IGNITION SWITCH

BRACKET ASSEMBLY - switch actuator, Includes: Ref. 14-17

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE - switch

1шт.

15

NSS

NOT SOLD SEPARAT

BAR - clamp

1шт.

16

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

18

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - wire

1шт.
