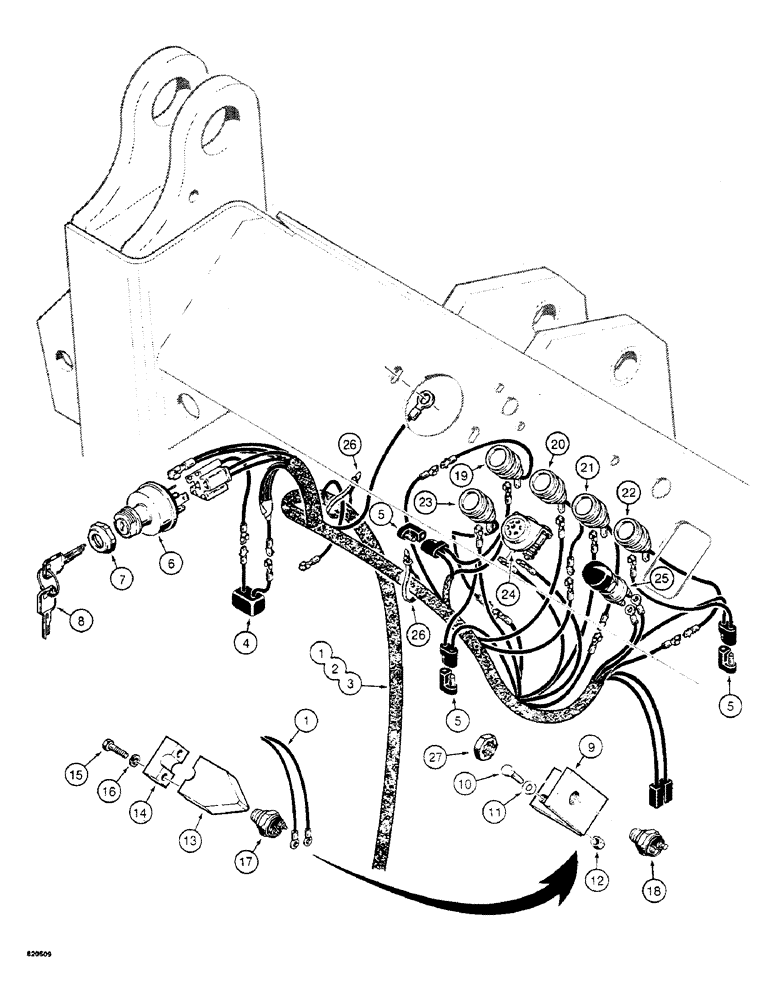

Запчасти Case W4 (052) - MAIN HARNESS AND INSTRUMENTS (04) - ELECTRICAL SYSTEMS

H650150

WIRE HARNESS

KIT - main harness, 1.8 litre engine only, use with Ref. 17, if used , Includes: Ref. 1 & 2

1шт.

H658468

HARNESS

KIT - main harness, 1.8 litre engine only, use with Ref. 18, service with H407791, H357277, and H358333, Includes: Ref. 1 & 2

1шт.

Can be adapted to use Ref. 17 switch by cutting off Packard connector splicing (2) eyelets (No. 10 diameter hole x 14 - 16 gauge wire).

1шт.

1

NSS

NOT SOLD SEPARAT

HARNESS - main, part of H650150 kit

1шт.

2

H407791

HARNESS

- main, part of H658468 kit

1шт.

Can be adapted to use Ref. 17 switch by cutting off Packard connector splicing (2) eyelets (No. 10 diameter hole x 14 - 16 gauge wire).

1шт.

H357277

ELECTRICAL WIRE

WIRE - not shown, see battery and engine electrical circuit, Figure 48

1шт.

H358333

ELECTRICAL WIRE

WIRE - not shown, see battery and engine electrical circuit, Figure 48

1шт.

H658690

ELECTRICAL WIRE

KIT - main harness, 2.1 litre engine only, Includes: P/N H408930 & Ref. 3

1шт.

3

H413682

HARNESS

- main

1шт.

Can be adapted to use Ref. 17 switch by cutting off Packard connector splicing (2) eyelets (No. 10 diameter hole x 14 - 16 gauge wire).

1шт.

H408930

ELECTRICAL WIRE

WIRE - not shown, see battery and engine electrical circuit, Figure 50

1шт.

4

H640078

BREAKER

CIRCUIT BREAKER - 10 amp

1шт.

5

L71879

DIODE ELEMENT,400V, 3A

DIODE - isolation

3шт.

6

A77312

SWITCH

- ignition

1шт.

7

A77314

NUT

- special, ignition switch

1шт.

8

A77313

SET OF 2 KEYS

KEYS - ignition

1шт.

9

H649376

BRACKET - neutral safety switch mounting

1шт.

10

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

11

195-521

WASHER,5/16", SAE

- flat, 5/16"

2шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, slef-locking, 5/16" - 18 NC

2шт.

H652511

IGNITION SWITCH

BRACKET ASSEMBLY - neutral start, Includes: Refs. 13-16

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE - switch

1шт.

14

NSS

NOT SOLD SEPARAT

BAR - clamp

1шт.

15

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

17

L77962

SWITCH

- neutral start, use with Ref. 1, if used

1шт.

18

H406363

NEUTRAL START SWITCH

SWITCH - neutral start, use with Ref.s 2 and 3, if used

1шт.

19

H357467

LIGHT

LAMP - engine water temperature

1шт.

20

H358945

LIGHT

LAMP - engine oil pressure

1шт.

21

H352336

LIGHT

LAMP - alternator

1шт.

22

H352203

LIGHT

LAMP - hydraulic oil temperature

1шт.

23

H371849

INDICATOR

LAMP - hydraulic filter restriction indicator

1шт.

24

H409987

LAMP

INDICATOR - engine glow plug heater, used with 2.1 litre engine only

1шт.

25

A30858

SWITCH

STARTING SWITCH - push button type

1шт.

26

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - wire

1шт.

27

H380386

NUT

- hex, special, 9/16" - 18 NF, used with Ref. 17 or 18 if used

1шт.
