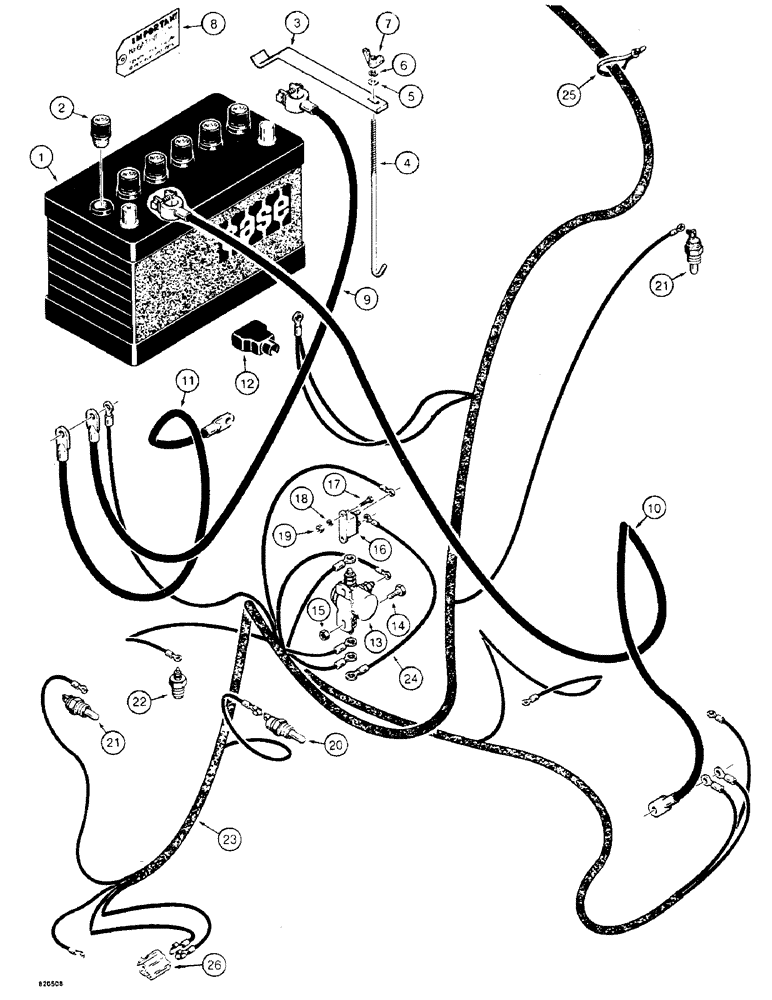

Запчасти Case W4 (050) - BATTERY AND ENGINE ELECTRICAL CIRCUIT, FOR 2.1 LITRE ENGINE, USED ON TRACTOR SN 1205397, 1205402 (04) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

- 12 volt, service replacement, must be used with A60553 nonspill caps, see note below

1шт.

When replacing battery, used the (6) nonspill caps from old battery or order (6) A60553 nonspill caps. See Figure 48 for 2.1 litre engine.

1шт.

2

A60553

CAP

- battery, nonspill

6шт.

3

H336826

STRAP

CLAMP - battery hold down

1шт.

4

H30825

BOLT

BOLT - special, hold down

1шт.

5

195-521

WASHER,5/16", SAE

- flat, 5/16"

1шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

7

129-419

WING NUT,5/16"-18

- hold down, 5/16" - 18 NC

1шт.

8

H198457

TAG

- battery negative ground

1шт.

9

H167726

CABLE PULLING GRIP

CABLE - battery ground, No. 4 x 24" long

1шт.

10

H84699

NEG BATTERY CABLE

CABLE - battery to starter, No. 1 x 42" long

1шт.

11

H139568

CABLE

- engine to frame grount, No. 1 x 18" long

1шт.

12

H102681

COVER ASSY

COVER - battery terminal, Ref. 9

1шт.

13

A143500

SOLENOID SWITCH

SOLENOID - engine heater

1шт.

14

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

15

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

16

L104328

BREAKER

CIRCUIT BREAKER - 25 amp, heater

1шт.

17

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

MACHINE SCREW - slotted, No. 6 - 32 NC x 1/2", if used

2шт.

17

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

MACHINE SCREW - slotted, No. 10 - 24 NC x 1/2", if used

2шт.

18

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, , If used #6

2шт.

18

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , If used #10

2шт.

19

129-15

NUT,#6-32

2шт.

19

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, if used

2шт.

20

H411892

SWITCH

SENDER - oil pressure

1шт.

21

L50238

SWITCH

SENDER - temperature, hydraulic oil and water

2шт.

22

REF

INSTRUCTION

SWITCH - oil filter restriction indicator, see parts list Figure 154

1шт.

23

REF

INSTRUCTION

HARNESS - main, see Figure 52 for correct main harness

1шт.

24

H408930

ELECTRICAL WIRE

WIRE - solenoid to circuit breaker

1шт.

25

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP

1шт.

26

H420216

CONNECTOR, ELEC

CONNECTOR -, Serial Range: harness-alternator

1шт.
