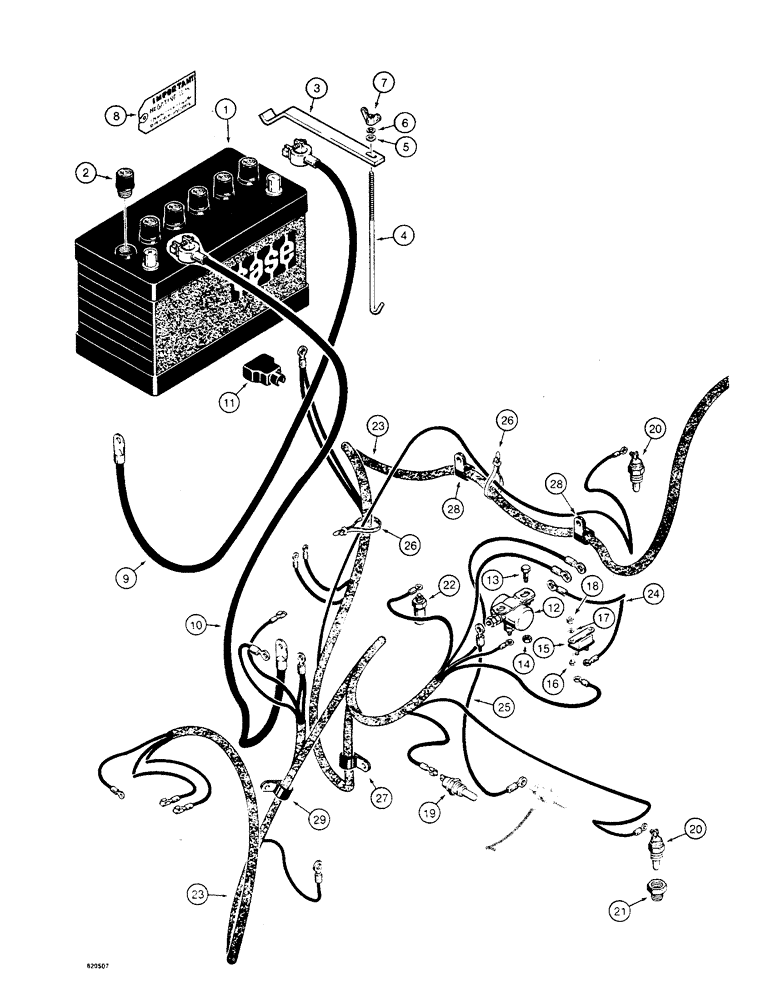

Запчасти Case W4 (048) - BATTERY AND ENGINE ELECTRICAL CIRCUIT, FOR 1.8 LITRE ENGINE, USED BEFORE TRACTOR SN 1205402 (04) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

- 12 volt, service replacement, must be used with A60553 nonspill caps, see note below

1шт.

When replacing battery, used the (6) nonspill caps from old battery or order (6) A60553 nonspill caps. See Figure 48 for 2.1 litre engine.

1шт.

2

A60553

CAP

- battery, nonspill

6шт.

3

H336826

STRAP

CLAMP - battery hold down

1шт.

4

H30825

BOLT

BOLT - special, hold down

1шт.

5

195-521

WASHER,5/16", SAE

- flat, 5/16"

1шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

7

129-419

WING NUT,5/16"-18

- hold down, 5/16" - 18 NC

1шт.

8

H198457

TAG

- battery negative ground

1шт.

9

H358507

CABLE

- battery ground

1шт.

10

H358499

CABLE

-, Serial Range: battery-starter

1шт.

11

H102681

COVER ASSY

COVER - battery terminal, for Ref. 9

1шт.

12

A143500

SOLENOID SWITCH

SOLENOID - engine heater

1шт.

13

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

14

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

15

L104328

BREAKER

CIRCUIT BREAKER - 25 amp, glow plug heater

1шт.

16

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

MACHINE SCREW - slotted, No. 6 - 32 NC x 1/2", if used

2шт.

16

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

MACHINE SCREW - slotted, No. 10 - 24 NC x 1/2", if used

2шт.

17

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, , If used #6

2шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , If used #10

2шт.

18

129-15

NUT,#6-32

If used #6-32

2шт.

18

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, if used

2шт.

19

E36632

PRESSURE SWITCH

SENDER - oil pressure

1шт.

20

L50238

SWITCH

SENDER - temperature, water and oil

2шт.

21

H358226

ADAPTER

- water temperature sender

1шт.

22

REF

INSTRUCTION

SWITCH - oil filter restriction indicator, list Figure 154

1шт.

23

REF

INSTRUCTION

HARNESS - main, see Figure 52 for correct main harness

1шт.

24

H357277

ELECTRICAL WIRE

WIRE - circuit, Serial Range: breaker-solenoid

1шт.

25

H358333

ELECTRICAL WIRE

WIRE - solenoid to glow plug

1шт.

26

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP

1шт.

27

49832

CLAMP

- harness to flywheel housing, if used

2шт.

Attach clamps with existing hardware.

1шт.

28

49836

CLAMP

- harness to flywheel housing, if used

2шт.

Attach clamps with existing hardware.

1шт.

29

49838

CLAMP

- harness to rear frame, if used

1шт.

Attach clamps with existing hardware.

1шт.
