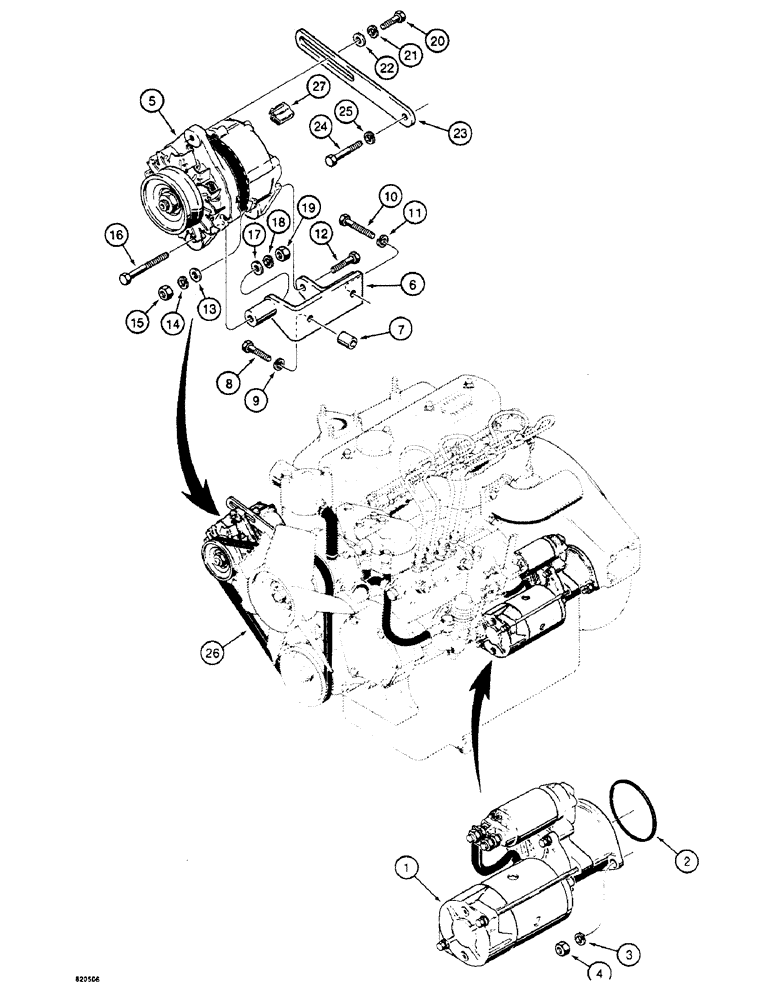

Запчасти Case W4 (046) - STARTER AND ALTERNATOR MOUNTING, 2.1 LITRE ENGINE USED ON TRACTOR SN 1205397, 1205402 AND AFTER (04) - ELECTRICAL SYSTEMS

1

H421099

MOTOR HOUSING

STARTER ASSEMBLY - parts list Figure 40 and 42

1шт.

2

H420208

O-RING,79.5 mm ID

- starter seal

1шт.

3

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

2шт.

4

525-5100

NUT,M10 x 1.25, Cl 8

- hex, 10 MM - 1.25

2шт.

5

H412445

ALTERNATOR

ASSEMBLY - parts list Figure 38

1шт.

6

H410829

BRACKET

- alternator to engine, alternator mounting

1шт.

7

H412452

SPACER

- bracket, if used, alternator mounting

1шт.

8

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- hex head, 12 MM - 1.75 x 35 MM (8.8), alternator mounting

1шт.

9

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, alternator mounting

1шт.

10

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex head, 12 mm - 1.75 x 45 mm (8.8), Alternator mounting

1шт.

11

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, alternator mounting

1шт.

12

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 35 mm (8.8), Alternator mounting

1шт.

13

H758698

WASHER

- flat, special, alternator mounting

1шт.

14

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, alternator mounting

1шт.

15

825-1110

NUT,M10, Cl 8

hex, Alternator mounting M10, Cl 8

1шт.

16

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex head, 10 MM - 1.50 x 70 MM (8.8), alternator mounting

1шт.

17

H758698

WASHER

- flat, special, alternator mounting

1шт.

18

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, alternator mounting

1шт.

19

825-1110

NUT,M10, Cl 8

hex, Alternator mounting M10, Cl 8

1шт.

20

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

Alternator mounting Hex, M10 x 1.25 x 20, 8.8, Full Thd

1шт.

21

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, alternator mounting

1шт.

22

H758698

WASHER

- flat, special, alternator mounting

1шт.

23

H410837

PLATE

LINK - adjusting, alternator mounting

1шт.

24

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex head, 10 MM - 1.5 x 45 MM (8.8), link to water pump housing, alternator mounting

1шт.

25

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, alternator mounting

1шт.

26

H410845

V-BELT

Drive, Alternator and Fan, Alternator Mounting

1шт.

27

H420216

CONNECTOR, ELEC

CONNECTOR - harness to alternator, alternator mounting

1шт.
