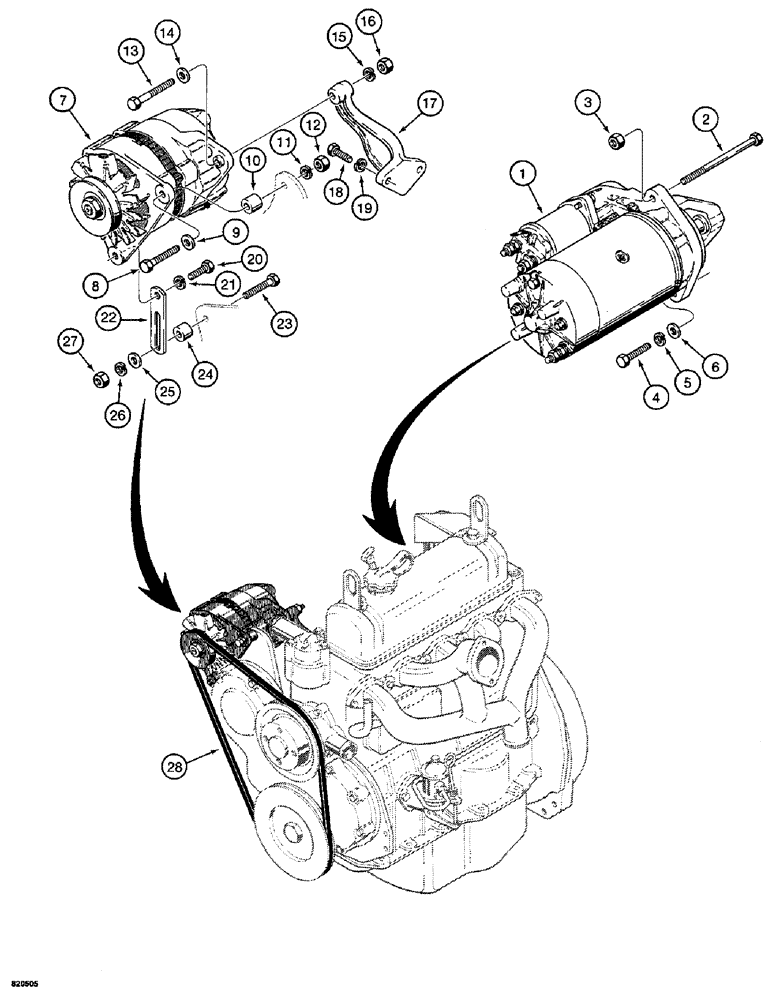

Запчасти Case W4 (044) - STARTER AND ALTERNATOR MOUNTING, 1.8 LITRE ENGINE, USED BEFORE TRACTOR SN 1205402 EXCEPT SN 1205397 (04) - ELECTRICAL SYSTEMS

1

E36646

STARTER MOTOR

STARTER ASSEMBLY - Lucas No. 26371E (M456), service E42369

1шт.

See 1.8 litre engine parts catalog H15800 for service parts.

1шт.

1

E42369

STARTER MOTOR

STARTER ASSEMBLY - Lucas No. 26400B (M456), if used

1шт.

See 1.8 litre engine parts catalog H15800 for service parts.

1шт.

1

E43498

STARTING MOTOR

STARTER ASSEMBLY - Lucas No. 27431A (2M113), ADU 3781, if used

1шт.

See 1.8 litre engine parts catalog H15800 for service parts.

1шт.

2

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

1шт.

3

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

4

E36675

BOLT,M4 x 12mm

- hex head, 3/8" - 24 NF x 1-1/8", if used

1шт.

4

114-201

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd

- hex head, 3/8" - 24 NF x 1-1/4", if used

1шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

7

E36638

ALTERNATOR

ASSEMBLY - Lucas No. 23847A 16 ACRE, alternator mounting

1шт.

See 1.8 litre engine parts catalog H15800 for service parts.

1шт.

8

114-106

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

- hex head, 5/16" - 24 NF x 1-3/4", interchangeable with E36659, alternator mounting

1шт.

9

195-521

WASHER,5/16", SAE

- flat, 5/16", alternator mounting

1шт.

10

E41364

SPACER

- alternator, 64" (16.3 MM) long, alternator mounting

1шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Alternator mounting 5/16"

1шт.

12

129-122

NUT,5/16"-24, G5

Alternator mounting 5/16"-24, G5

1шт.

13

114-122

BOLT,Hex, 5/16" - 24 x 2", Gr 5

Interchangeable with E36660, alternator mounting Hex, 5/16"-24 x 2", G5

1шт.

14

195-521

WASHER,5/16", SAE

- flat, 5/16", alternator mounting

1шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Alternator mounting 5/16"

1шт.

16

129-122

NUT,5/16"-24, G5

Alternator mounting 5/16"-24, G5

1шт.

17

E36642

BRACKET

- alternator mounting

1шт.

18

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Interchangeable with E36671, alternator mounting Hex, 5/16"-24 x 7/8", G5, Full Thd

2шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Alternator mounting 5/16"

2шт.

20

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Alternator mounting Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Alternator mounting 5/16"

1шт.

22

NLS

NO LONGER SERVICED

- adjusting, alternator mounting

1шт.

23

114-107

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- hex head, 5/16" - 24 NF x 1-1/2", alternator mounting

1шт.

24

E41363

SPACER - adjusting link, .34" (8.6 MM) long, alternator mounting

1шт.

25

195-521

WASHER,5/16", SAE

- flat, 5/16", alternator mounting

1шт.

26

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Alternator mounting 5/16"

1шт.

27

129-122

NUT,5/16"-24, G5

Alternator mounting 5/16"-24, G5

1шт.

28

H429357

V-BELT,9.70 mm W

Alternator and Fan, Alternator Mounting 9.70 mm W

1шт.
