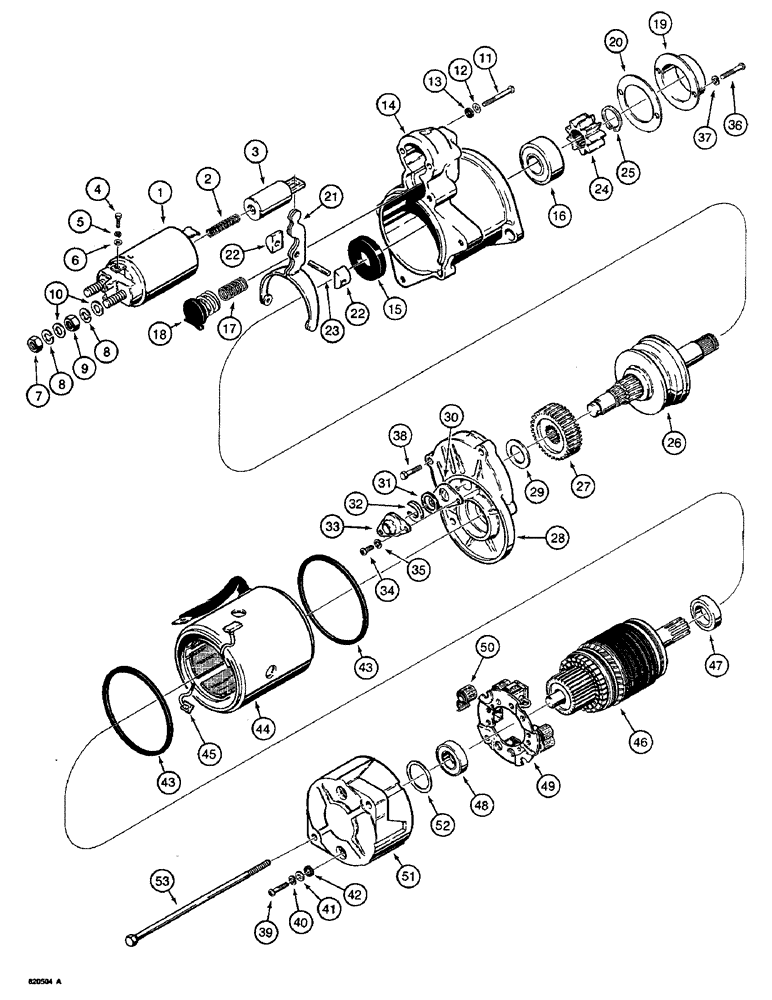

Запчасти Case W4 (040) - H421099 STARTER, 2.1 LITRE ENGINE, USED ON TRACTOR SN 1205397, 1205402 AND AFTER (04) - ELECTRICAL SYSTEMS

H421099

MOTOR HOUSING

STARTER ASSEMBLY - 2.1 litre engine, M003T64172, Includes: P/N N8048 and Refs. 1-53

1шт.

N8048

SWITCH

ASSEMBLY - solenoid, Includes: Refs. 1-10

1шт.

1

NSS

NOT SOLD SEPARAT

CASE ASSEMBLY - solenoid

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING - plunger

1шт.

3

NSS

NOT SOLD SEPARAT

PLUNGER - solenoid

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - terminal

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - flat

1шт.

7

NSS

NOT SOLD SEPARAT

NUT - hex, terminal, outer

2шт.

8

NSS

NOT SOLD SEPARAT

WASHER - lock

4шт.

9

NSS

NOT SOLD SEPARAT

NUT - hex, terminal inner

2шт.

10

NSS

NOT SOLD SEPARAT

WASHER - flat

4шт.

11

N8069

SET SCREW

SCREW SET

1шт.

N8070

SET OF WASHERS

PACKING SET, Includes: Refs. 12 & 13

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - flat

2шт.

13

NSS

NOT SOLD SEPARAT

SEAL

2шт.

N8043

BRACKET

HOUSING ASSEMBLY - front, Includes: Refs. 14-16

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - front

1шт.

15

N8061

OIL SEAL

SEAL - oil, front housing

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING - front houding

1шт.

N8046

SPRING KIT

- lever, Includes: Refs. 17 & 18

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING - inner

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING - outer

1шт.

19

N8051

COVER

- pinion

1шт.

20

N8052

PLATE

- spacer

1шт.

N8053

SHAFT ASSY.

PINION SHAFT ASSEMBLY, Includes: P/N N8045 and Refs. 21-26

1шт.

N8045

LEVER ASSY.

LEVER ASSEMBLY - drive shift, Includes: Refs. 21-23

1шт.

21

NSS

NOT SOLD SEPARAT

LEVER - drive shift

1шт.

22

NSS

NOT SOLD SEPARAT

STOP

2шт.

23

NSS

NOT SOLD SEPARAT

PIN

1шт.

N8065

GEAR

PINION GEAR ASSEMBLY, Includes: Refs. 24-26

1шт.

24

NSS

NOT SOLD SEPARAT

PINION GEAR

1шт.

N8066

KIT

STOP KIT - pinion, includes a spring and stop ring, not shown or used, Includes: Ref. 25

1шт.

25

NSS

NOT SOLD SEPARAT

SNAP RING - pinion retaining

1шт.

26

NSS

NOT SOLD SEPARAT

DRIVE SHAFT ASSEMBLY

1шт.

27

N8054

GEAR

- reduction

1шт.

28

N8047

BRACKET

HOUSING - intermediate

1шт.

N8055

KIT

SHAFT COVER SET, Includes: Refs. 29-35

1шт.

29

NSS

NOT SOLD SEPARAT

SHIM - gear adjustment

1шт.

30

NSS

NOT SOLD SEPARAT

PLATE - thrust

1шт.

31

NSS

NOT SOLD SEPARAT

THRUST WASHER

1шт.

32

NSS

NOT SOLD SEPARAT

RETAINING RING

1шт.

33

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.

34

NSS

NOT SOLD SEPARAT

SCREW

2шт.

35

NSS

NOT SOLD SEPARAT

WASHER - lock, if used

2шт.

N8044

SET SCREW

SCREW SET - starter, Includes: Refs. 36-41

1шт.

36

NSS

NOT SOLD SEPARAT

SCREW SET - front cover

1шт.

37

NSS

NOT SOLD SEPARAT

WASHER SET - front cover

1шт.

38

NSS

NOT SOLD SEPARAT

BOLT - hex head, intermediate cover

1шт.

39

NSS

NOT SOLD SEPARAT

SCREW SET - rear cover

1шт.

40

NSS

NOT SOLD SEPARAT

WASHER SET - lock, rear cover

1шт.

41

NSS

NOT SOLD SEPARAT

WASHER SET - flat, rear cover

1шт.

42

N8060

SEALING RING

- rubber

2шт.

43

N8056

GASKET

- cover

2шт.

N8057

HOUSING ASSY.

COIL ASSEMBLY - field, Includes: Refs. 44 & 45

1шт.

44

NSS

NOT SOLD SEPARAT

COIL AND HOUSING

1шт.

45

N8067

BRUSH, COMMUTATOR

BRUSH - field

2шт.

N8049

ARMATURE

ASSEMBLY, Includes: Ref. 46-48

1шт.

46

NSS

NOT SOLD SEPARAT

ARMATURE

1шт.

47

N8062

BEARING

- splined end

1шт.

48

N8063

BEARING

- closed end

1шт.

N8058

PLATE ASSY.

BRUSH HOLDER ASSEMBLY, Includes: Refs. 49 & 50

1шт.

49

NSS

NOT SOLD SEPARAT

BRUSH HOLDER

1шт.

50

N8068

SPRING

- brush retaining

4шт.

51

N8059

BRACKET

COVER - rear

1шт.

52

NSS

NOT SOLD SEPARAT

SPACER - bearing

1шт.

53

N8050

BOLT

BOLT SET - rear cover

1шт.
