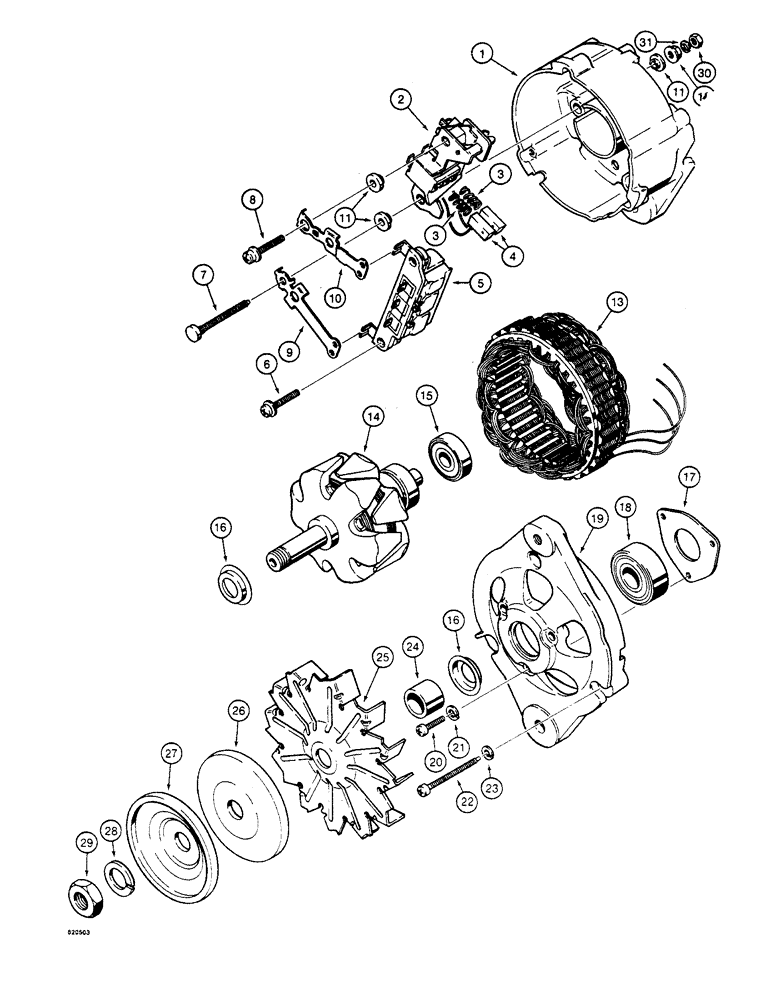

Запчасти Case W4 (038) - H412445 ALTERNATOR, FOR 2.1 LITRE ENGINE, USED ON TRACTOR SN 1205397, 1205402 AND AFTER (04) - ELECTRICAL SYSTEMS

H412445

ALTERNATOR

ASSEMBLY - 2.1 litre engine, Includes: Refs. 1-6

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY - rear, slip ring end

1шт.

N8036

REGULATOR

ASSEMBLY, Includes: Refs. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

VOLTAGE REGULATOR

1шт.

3

N8039

SPRING

- brush

2шт.

4

N8038

BRUSH, COMMUTATOR

BRUSH

2шт.

N8037

RECTIFIER

ASSEMBLY, Includes: Ref. 5 & 6

1шт.

5

NSS

NOT SOLD SEPARAT

RECTIFIER

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW - rectifier mounting

2шт.

N8035

CONNECTION,ELECTRIC

TERMINAL SET, Includes: Refs. 7-29

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW - long

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW - short

1шт.

9

NSS

NOT SOLD SEPARAT

CONNECTOR - clip

1шт.

10

NSS

NOT SOLD SEPARAT

CONNECTOR - clip

1шт.

11

NSS

NOT SOLD SEPARAT

INSULATOR - fiber

3шт.

12

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY - with washer

1шт.

13

N8031

STATOR

ASSEMBLY

1шт.

N8030

ROTOR ASSY.

ROTOR ASSEMBLY, Includes: Refs. 14 & 15

1шт.

14

NSS

NOT SOLD SEPARAT

ROTOR

1шт.

15

N8033

BEARING

- rotor, slip ring end

1шт.

N8029

HOUSING ASSY.

FRAME ASSEMBLY - front, drive end, Includes: Refs. 16 - 21

1шт.

16

NSS

NOT SOLD SEPARAT

CUP - wear

2шт.

17

NSS

NOT SOLD SEPARAT

PLATE - bearing retainer

1шт.

18

N8034

BEARING

- frame, drive end

1шт.

19

NSS

NOT SOLD SEPARAT

FRAME - front, drive end

1шт.

N8042

SET SCREW

SCREW SET - bearing retainer, Includes: Refs. 20 & 21

3шт.

20

NSS

NOT SOLD SEPARAT

SCREW - bearing retainer

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

N8041

SET SCREW

SCREW SET - frame, Includes: Refs. 22 & 23

3шт.

22

NSS

NOT SOLD SEPARAT

SCREW - frame

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

N8028

PULLEY ASSY.

PULLEY AND FAN ASSEMBLY, Includes: Refs. 24-27

1шт.

24

NSS

NOT SOLD SEPARAT

SPACER - fan

1шт.

25

NSS

NOT SOLD SEPARAT

FAN - ventilating

1шт.

26

NSS

NOT SOLD SEPARAT

SHEAVE - inner

1шт.

27

NSS

NOT SOLD SEPARAT

SHEAVE - outer

1шт.

N8040

NUT

SET - sheave and fan retaining, Includes: Refs. 28 & 29

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

29

NSS

NOT SOLD SEPARAT

NUT - hex

1шт.

30

825-1105

NUT,M5, Cl 8

- hex, 5 MM - 0.8

1шт.

31

892-1105

LOCK WASHER,M5

WASHER - lock, 5 MM, if used

1шт.
