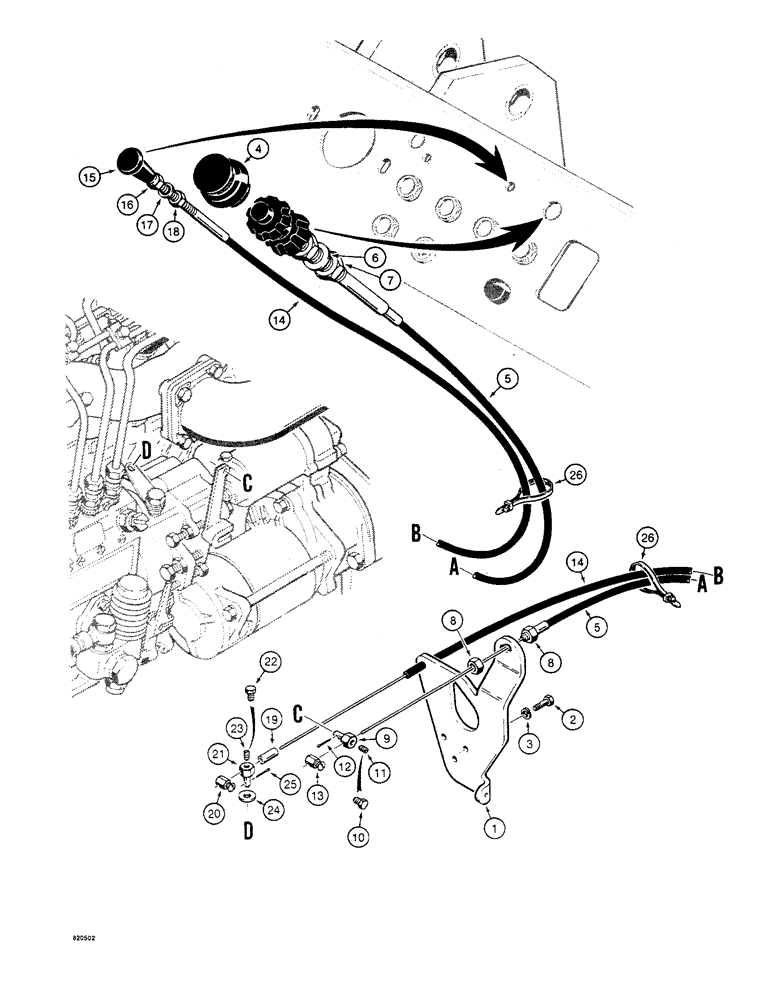

Запчасти Case W4 (036) - THROTTLE & ENGINE STOP CONTROLS, FOR 2.1 LITRE ENGINE, USED ON TRACTOR SN 1205397, 1205402 & AFTER (03) - FUEL SYSTEM

1

H405183

BRACKET

- throttle cable

1шт.

2

814-6014

BOLT,Hex, M6 x 1 x 14mm, Cl 8.8, Full Thd

- hex head, 6 MM - 1.0 x 14 MM (8.8)

3шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

4

H358994

COVER

- throttle dust

1шт.

5

H336248

CABLE

- throttle control, Includes: Ref. 6 & 7

1шт.

6

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, Int Tooth, 3/4"

1шт.

7

129-168

JAM NUT,Jam, 3/4"-10, G5

JAM NUT - hex, 3/4" - 16 NF

1шт.

8

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - hex, 3/8 - 24 NF

2шт.

9

H327494

JOINT TURNING

STOP - wire, cable to throttle lever

1шт.

10

163-20

SCREW,Sl Hex Wshr Hd, #10 - 32 x 1/2"

MACHINE SCREW - hex head, no. 10 - 32 NF x 1/2", if used

1шт.

11

178-831

SET SCREW,Hex Soc, #10-32 x 3/8"

- hex socket head, no. 10 - 32 NF x 3/8", if used

1шт.

12

132-329

COTTER PIN,1/16" x 3/4"

wire stop 1/16" x 3/4"

1шт.

13

H42796

STOP

- wire, cable

1шт.

14

H336255

CABLE

- fuel, shutoff, Includes: Refs. 15-20

1шт.

15

N7913

KNOB

- plastic

1шт.

16

N7912

NUT

- plastic

1шт.

17

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

18

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - hex, 3/8" - 24 NF

1шт.

19

N8004

SLEEVE - cable end, threads onto cable jacket

1шт.

20

H42796

STOP

- wire, cable

1шт.

21

H327494

JOINT TURNING

STOP - wire, cable to stop lever

1шт.

22

163-20

SCREW,Sl Hex Wshr Hd, #10 - 32 x 1/2"

MACHINE SCREW - hex head, no. 10 - 32 NF x 1/2", if used

1шт.

23

178-831

SET SCREW,Hex Soc, #10-32 x 3/8"

- hex socket, no. 10 - 32 NF x 3/8", if used

1шт.

24

195-518

WASHER,1/4", SAE

- flat, 1/4"

1шт.

25

132-329

COTTER PIN,1/16" x 3/4"

wire stop 1/16" x 3/4"

1шт.

26

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - wire

1шт.
