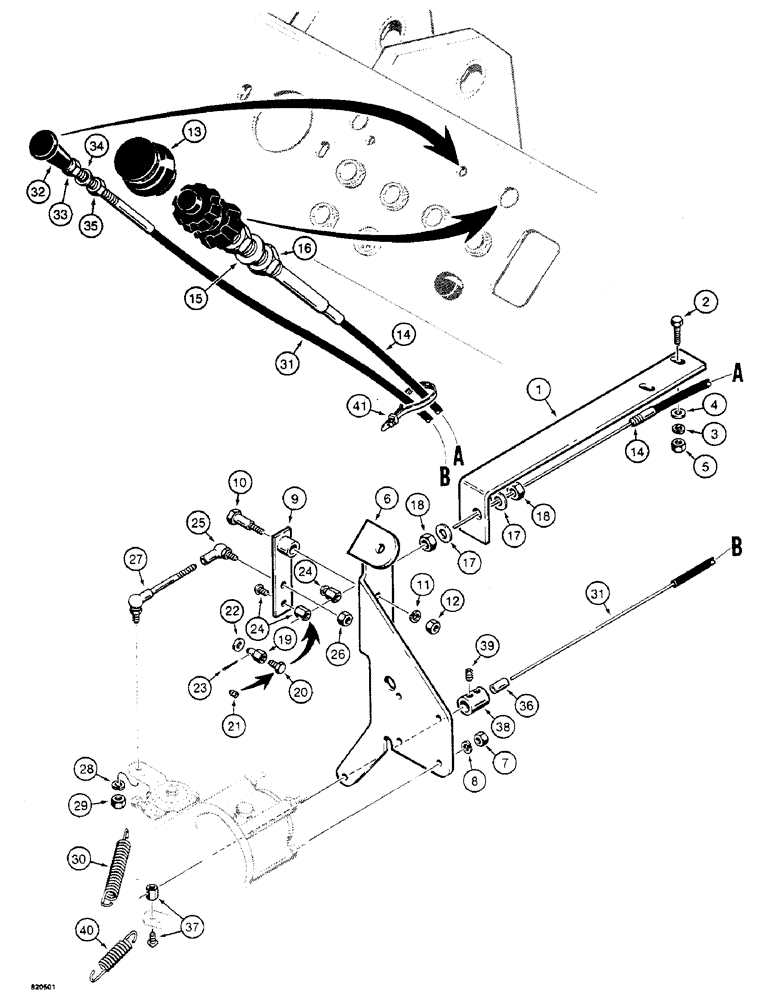

Запчасти Case W4 (034) - THROTTLE AND ENGINE STOP CONTROLS, FOR 1.8 L ENGINE, USED BEFORE TRACTOR SN 1205402 EXCEPT 1205397 (03) - FUEL SYSTEM

1

H358432

BRACKET - throttle cable

1шт.

2

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

3

80682

LOCK WASHER,1/4"

Washer, Lock, , If used 1/4"

2шт.

4

195-102

WASHER,1/4"

- flat, 1/4"

2шт.

5

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

6

E36614

BRACKET

- throttle lever

1шт.

7

825-1105

NUT,M5, Cl 8

- hex, 5 MM - 0.8

4шт.

8

892-1105

LOCK WASHER,M5

WASHER - lock, 5 MM

4шт.

9

H638643

LEVER - throttle control

1шт.

10

E44148

BOLT

- special, shoulder

1шт.

Use E41353

1шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

12

129-121

NUT,1/4"-28, G5

1шт.

13

H358994

COVER

- throttle dust

1шт.

14

H336248

CABLE

- throttle control, Includes: Refs. 15 & 16

1шт.

15

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, Int Tooth, 3/4"

1шт.

16

129-168

JAM NUT,Jam, 3/4"-10, G5

JAM NUT - hex, 3/4" - 16 NF

1шт.

17

195-104

WASHER,3/8"

- flat, 3/8"

2шт.

18

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - hex, 3/8" - 16 NC

2шт.

19

H327494

JOINT TURNING

STOP - wire, cable to throttle lever, it used

1шт.

20

163-20

SCREW,Sl Hex Wshr Hd, #10 - 32 x 1/2"

MACHINE SCREW - hex head, no. 10 - 32 NF x 1/2", if used

1шт.

21

178-831

SET SCREW,Hex Soc, #10-32 x 3/8"

- hex socket head, no. 10 - 32 NF x 3/8", if used

1шт.

22

195-518

WASHER,1/4", SAE

- flat, 1/4", if used

1шт.

23

132-329

COTTER PIN,1/16" x 3/4"

wire stop, if used 1/16" x 3/4"

1шт.

24

H42796

STOP

- wire, cable

1-2шт.

25

E41351

BALL JOINT

- lever

1шт.

26

129-37

NUT,#10-32

1шт.

27

E41352

JOINT

BALL JOINT AND ROD - pump

1шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

29

129-121

NUT,1/4"-28, G5

Includes: Ref. 30 1/4"-28, G5

1шт.

30

E36616

SPRING

- throttle return

1шт.

31

H336255

CABLE

- fuel shutoff, Includes: Refs. 32-37

1шт.

32

N7913

KNOB

- plastic

1шт.

33

N7912

NUT

- plastic

1шт.

34

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

35

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - hex, 3/8" - 24 NF

1шт.

36

N8004

SLEEVE - cable end, threads onto cable jacket

1шт.

37

H42796

STOP

- wire, cable

1шт.

38

H358523

COUPLING

COUPLER -, Serial Range: cable-bracket

1шт.

39

178-424

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- hex socket head, 1/4" - 20 NC x 1/4"

2шт.

40

E36615

SPRING

- fuel shutoff return

1шт.

41

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - cable

1шт.
