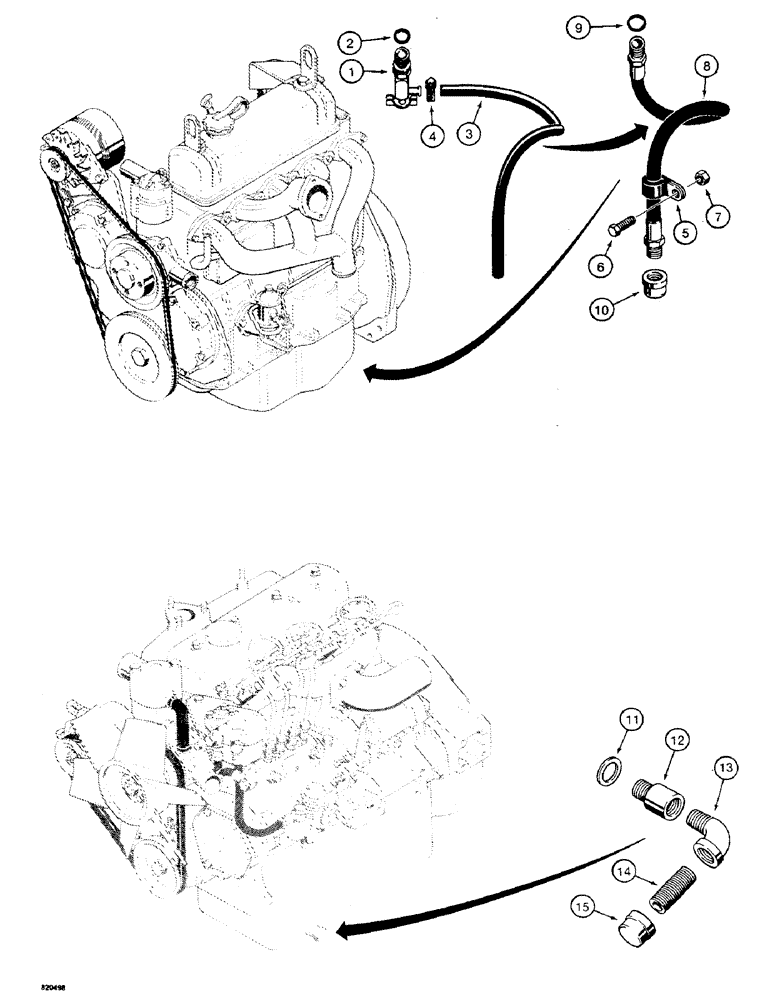

Запчасти Case W4 (028) - ENGINE OIL DRAIN,1.8 LITRE ENGINE,USED BEFORE TRACTOR 1205402 EXCEPT 1205397 (02) - ENGINE

1

H336032

VALVE - drain, oil pan, if used, Includes: Ref. 2, Serial Range: -1189750

1шт.

2

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, valve

1шт.

3

H336040

HOSE,0.25" ID x 18.00", SAE 30R1

Drain, Used With Ref. 1 Only 0.25" ID x 18.00", SAE 30R1

1шт.

4

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose, used with Ref. 1 only, worm drive, SAE no. 6

1шт.

5

49836

CLAMP

- hose retaining, used with Ref. 3 or 8

1шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

7

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

8

H390427

HOSE

- drain, oil pan, if used, Includes: Ref. 9, Start Serial: 1189750

1шт.

9

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, hose

1шт.

10

221-522

CAP,1/8" NPT

- drain, used with Ref. 8 only

1шт.

11

133291A1

O-RING

WASHER - special, 2.1 litre engine used on tractor SN 1205397, 1205402 and after

1шт.

12

H413609

ADAPTER - engine oil drain, 2.1 litre engine used on tractor SN 1205397, 1205402 and after

1шт.

13

221-1413

ELBOW,90 Degree, 3/8"-18, NPT

STREET ELBOW - 90 degree, 3/8" NPT, 2.1litre engine used on tractor SN 1205397, 1205402 and after

1шт.

14

221-164

FITTING,Nipple, 3/8" NPT x 2"

NIPPLE - pipe, 3/8" NPT x 2" (51 MM) long, 2.1 litre engine used on tractor SN 1205397, 1205402 and after

1шт.

15

221-524

CAP,3/8" NPT

- nipple, , 2.1 litre engine used on tractor SN 1205397, 1205402 and after 3/8" NPT

1шт.
