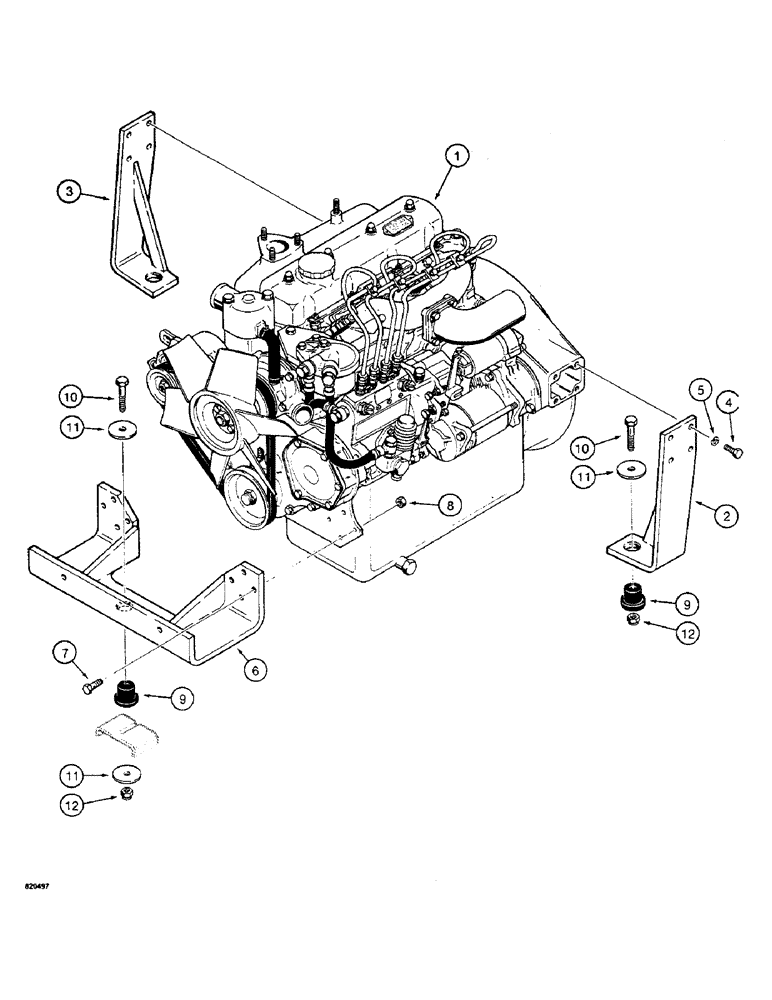

Запчасти Case W4 (026) - ENGINE MOUNTING, FOR 2.1 LITRE ENGINE, USED ON TRACTOR SN 1205397, 1205402 AND AFTER (02) - ENGINE

1

H658708

ENGINE - Mitsubishi, see parts catalog H15974 for additional breakdown

1шт.

2

H658666

MOUNTING PARTS

SUPPORT - engine, right-hand front

1шт.

3

H658658

MOUNTING PARTS

SUPPORT - engine, left-hand front

1шт.

4

814-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex head, 12 MM - 1.75 x 30 MM (8.8)

8шт.

5

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm

8шт.

6

H658674

SUPPORT - engine, rear

1шт.

7

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

8

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

8шт.

9

H384578

ANCHOR

INSULATOR - hard rubber mount, service as set of 3 only to avoid mismatch with H426395 insulator, if used

3шт.

9

H426395

MOUNTING PARTS

INSULATOR - neoprene mount, service as set of 3 only to avoid mismatch with H384578 insulator, if used

3шт.

10

113-336

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

- hex head, 7/16" - 14 NC x 2-1/4"

3шт.

11

H165720

WASHER

- flat, special, 7/16"

4шт.

12

131-1129

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16" - 14 NC

3шт.
