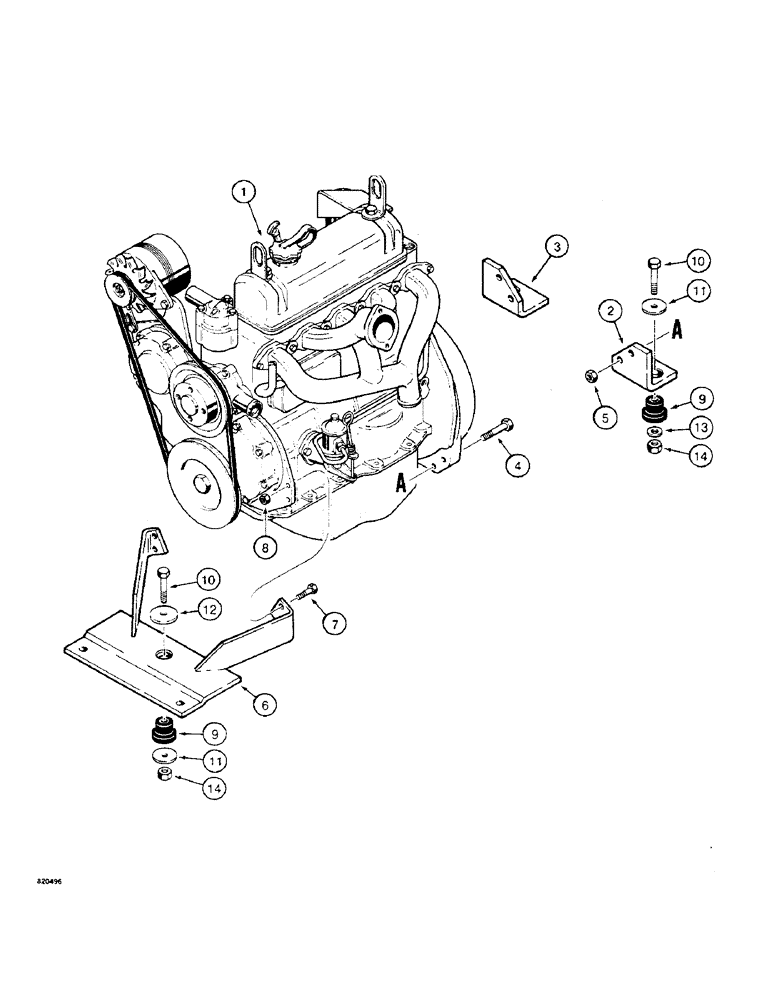

Запчасти Case W4 (024) - ENGINE MOUNTING, FOR 1.8 LITRE ENGINE, USED BEFORE TRACTOR SN 1205402 EXCEPT SN 1205397 (02) - ENGINE

1

H632869

ENGINE ASSEMBLY

ENGINE - Leyland, see parts catalog H15800 for additional breakdown

1шт.

2

H335877

SUPPORT - engine, right-hand front

1шт.

3

H336776

SUPPORT - engine, left-hand front

1шт.

4

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

4шт.

5

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

6

H627133

MOUNTING PARTS

SUPPORT - engine, rear

1шт.

7

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

If used Hex, 5/16"-18 x 1 1/4", G5, Serial Range: -1189928

4шт.

7

113-2244

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8, Full Thd

if used Hex, 3/8"-16 x 1 1/4", G8, Full Thd, Start Serial: 1189928

4шт.

8

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, if used, Serial Range: -1189928

4шт.

8

131-1216

LOCK NUT,3/8"-16, GC

NUT, LOCK, , If used 3/8"-16, GC, Start Serial: 1189928

4шт.

9

H384578

ANCHOR

INSULATOR - hard rubber mount, service as set of 3 only to avoid mismatch with H426395 insulator, if used

3шт.

9

H426395

MOUNTING PARTS

INSULATOR - neoprene mount, service as set of 3 only to avoid mismatch with H384578 insulator, if used

3шт.

10

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

11

195-2049

WASHER,7/16" x 1 3/4" x .109"

- flat, 3/8" - 1.75" OD

3шт.

12

195-2037

WASHER,7/16" x 2" x .180"

- flat, 3/8" - 2.00" OD, rear support only

1шт.

13

195-104

WASHER,3/8"

- flat, 3/8, front supports only

2шт.

14

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

3шт.
