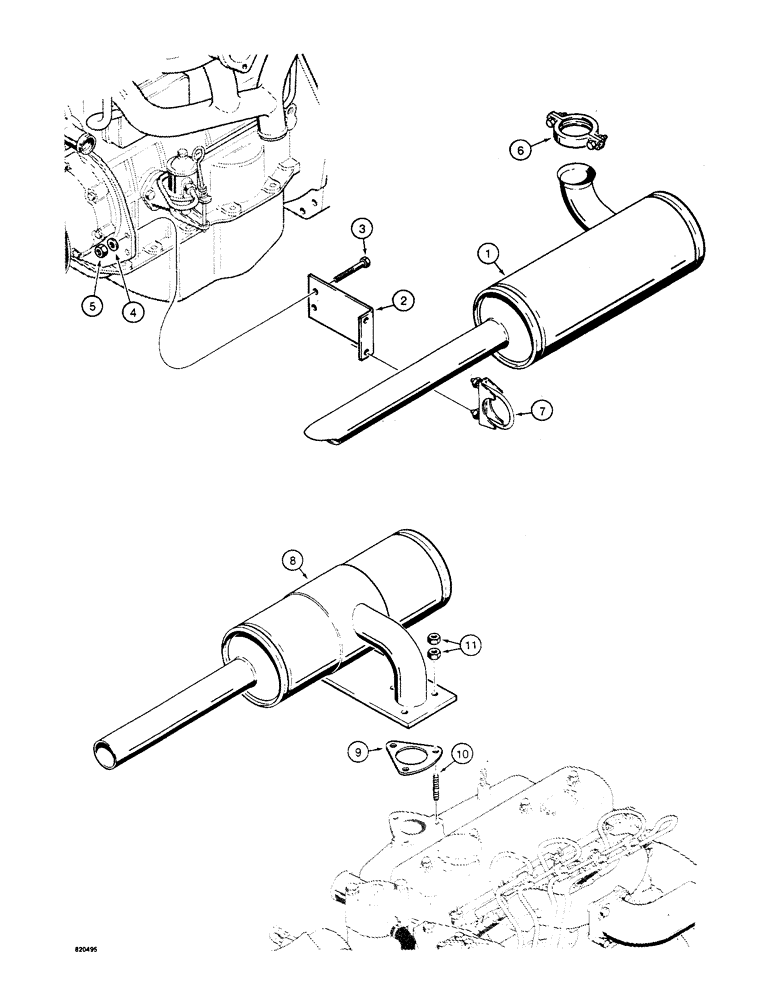

Запчасти Case W4 (022) - MUFFLER AND EXHAUST SYSTEM,1.8 LITRE ENGINE,USED BEFORE TRACTOR SN 1205402 EXCEPT 1205397 (02) - ENGINE

1

H336107

MUFFLER

- exhaust

1шт.

2

H336891

SUPPORT - muffler

1шт.

3

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

If used Hex, 5/16"-18 x 1 1/4", G5, Serial Range: -1189928

2шт.

3

113-2244

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8, Full Thd

if used Hex, 3/8"-16 x 1 1/4", G8, Full Thd, Start Serial: 1189928

2шт.

4

195-2026

WASHER,.328" x 5/8" x .065"

- flat, if used

2шт.

5

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, use with item, 3, 5/16" bolt

2шт.

5

131-1216

LOCK NUT,3/8"-16, GC

NUT, LOCK, , Use with item 3, 3/8" bolt 3/8"-16, GC

2шт.

6

E36314

CLAMP

- exhaust

1шт.

7

G45410

CLAMP

- muffler

1шт.

8

H409318

MUFFLER

- exhaust, 2.1 litre engine used on tractor SN 1205397, SN 1205402 and after

1шт.

9

H410878

MANIFOLD

GASKET - exhaust, 2.1 litre engine used on tractor SN 1205397, SN 1205402 and after

1шт.

Replaced by H410886.

1шт.

10

H758797

STUD

- exhaust, 2.1 litre engine used on tractor SN 1205397, SN 1205402 and after

3шт.

11

H410894

NUT

- special, 2.1 litre engine used on tractor SN 1205397, SN 1205402 and after

6шт.
